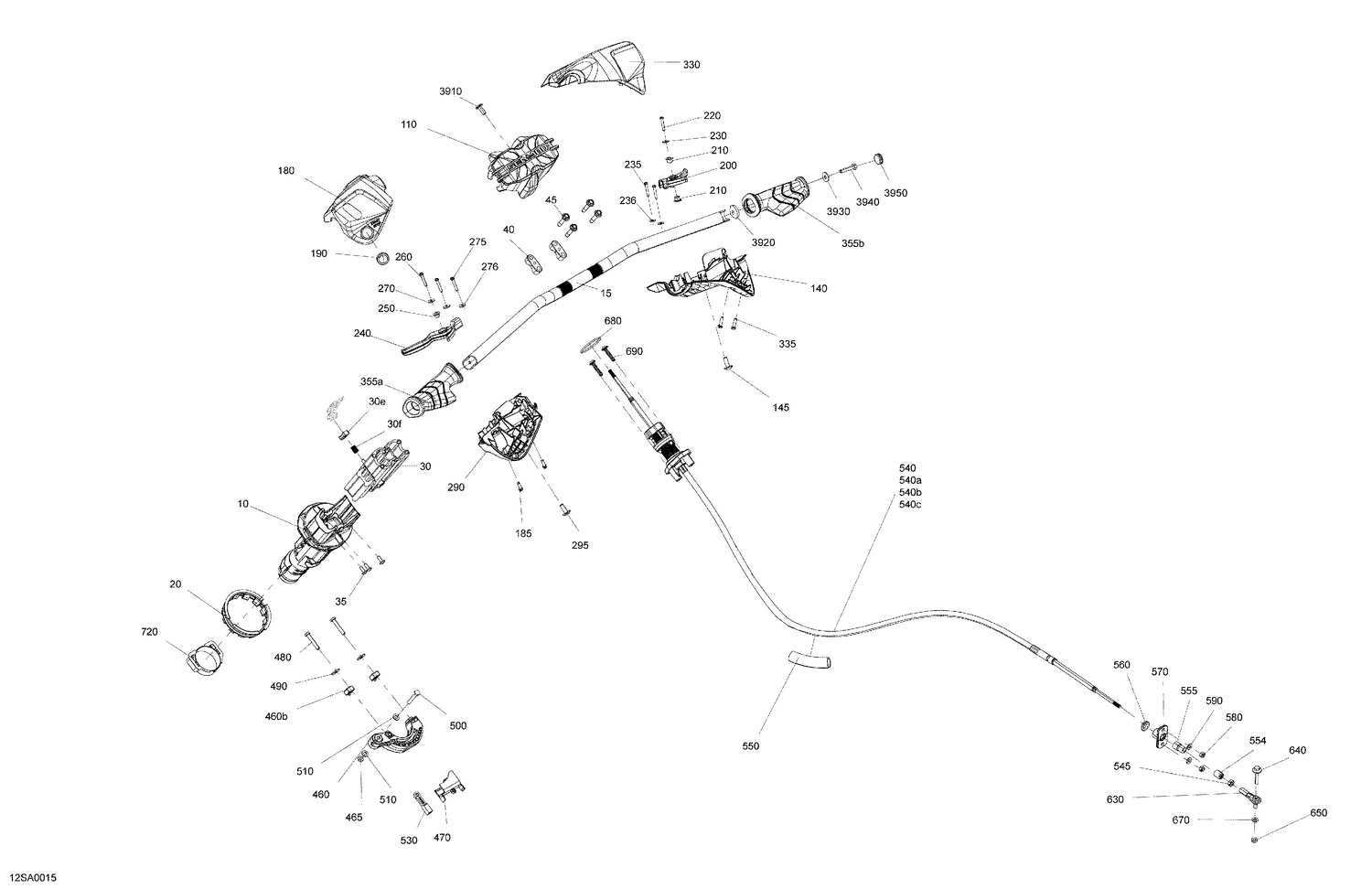

03- Mechanic - Steering
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 277001998 | Steering Column |
| 20 | 277001874 | Wear Ring |
| 30e | 506153045 | Compression Bloc |
| 30f | 506152820 | Spring |
| 35 | 250000922 | Torx Truss Screw M6 X 16 |
| 40 | 506152751 | Steering Support |
| 45 | 250000834 | Hex. Screw Flange DIN.6921 S.Grip |
| 110 | 277002005 | Deep Black, Steering Pad |
| 140 | 277002007 | RH Lower Housing |
| 145 | 250000922 | Torx Truss Screw M6 X 16 |
| 180 | 277002237 | LH Cover This part replaces 277002003. |
| 185 | 241141660 | Hex. Flange Screw K40 X 16 |
| 190 | 277001887 | Red, Knob Switch |
| 200 | 277002138 | Hand Lever Accelerator |
| 210 | 293900091 | Bushing |
| 220 | 241142560 | Hex. Flange Screw K40 X 25 |
| 230 | 234042600 | Flat Washer 4 mm, Stainless |
| 235 | 241142560 | Hex. Flange Screw K40 X 25 |
| 236 | 234042600 | Flat Washer 4 mm, Stainless |
| 240 | 277001945 | Reverse Handle |
| 250 | 293900091 | Bushing |
| 260 | 241142560 | Hex. Flange Screw K40 X 25 |
| 270 | 234042600 | Flat Washer 4 mm, Stainless |
| 275 | 241142560 | Hex. Flange Screw K40 X 25 |
| 276 | 234042600 | Flat Washer 4 mm, Stainless |
| 290 | 277002006 | Deep Black, LH Lower Housing |
| 295 | 250000922 | Torx Truss Screw M6 X 16 |
| 330 | 277002004 | RH Cover |
| 335 | 241141660 | Hex. Flange Screw K40 X 16 |
| 460b | 269502408 | Housing Nut M6 |
| 465 | 232561200 | Brass Elastic Stop Nut M6 |
| 470 | 277001654 | Spacer |
| 480 | 207163560 | Hex. Screw M6 X 35 |
| 490 | 234062600 | Flat Washer M6, Stainless |
| 500 | 207064060 | Hex. Screw M6 X 40 |
| 510 | 234061600 | Stainless Flat Washer M6 |
| 530 | 277001180 | Ball Joint |
| 540a | 211100056 | Hex. Nut 1/4"-28 |
| 540b | 277001582 | Wiper Rod |
| 540c | 277001583 | End Piece |
| 545 | 211100056 | Hex. Nut 1/4"-28 |
| 550 | 276000446 | Sheat Corrugated 19 MM ID |
| 554 | 277001582 | Wiper Rod |
| 555 | 277001583 | End Piece |
| 560 | 293830063 | Rubber Washer |
| 570 | 277001856 | Ring Halves |
| 580 | 232561200 | Brass Elastic Stop Nut M6 |
| 590 | 234061600 | Stainless Flat Washer M6 |
| 630 | 277000775 | Ball Joint |
| 640 | 250000970 | Hex Sems Screw M6X35 |
| 650 | 232561200 | Brass Elastic Stop Nut M6 |
| 670 | 234061600 | Stainless Flat Washer M6 |
| 680 | 293300176 | O-Ring |
| 690 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 720 | 277002318 | Wear Ring This part replaces 277001741. |
