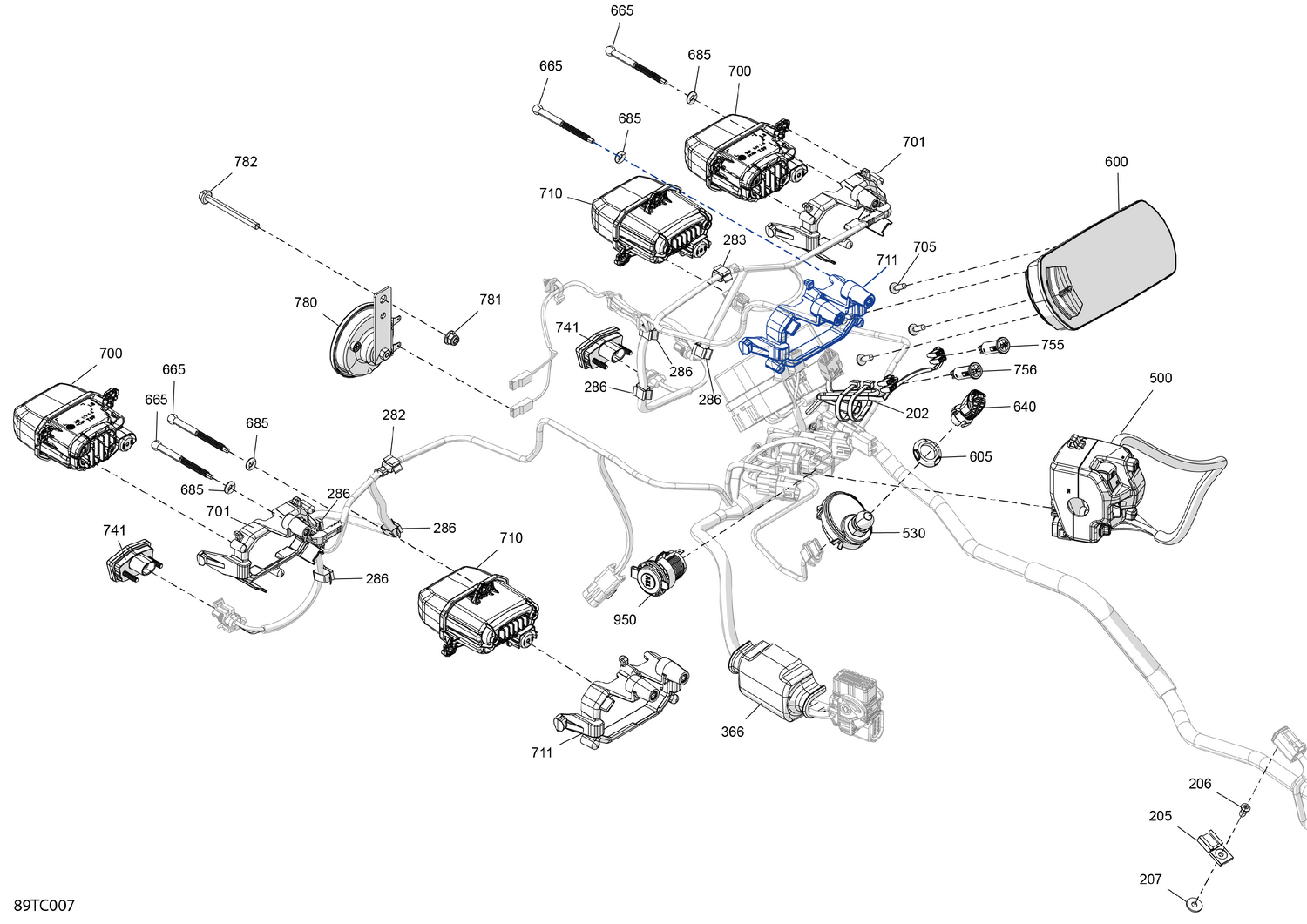

08- Electric - Front Section
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 202 | 710007825 | Tell Tale Wiring Harness |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 282 | 414227300 | Clip |
| 283 | 414227300 | Clip |
| 286 | 414227300 | Clip |
| 366 | 710007255 | Soft Protection Sleeve |
| 500 | 710007609 | LH Front Multifunction Switch |
| 530 | 515179240 | Terminal Dess One-Wire |
| 600 | 710008108 | Multifunction Gauge Compact Mono |
| 605 | 278002963 | Safety Nut (DESS Switch) |
| 640 | 710004964 | Grey Key RFID |
| 665 | 710005837 | Ajustment Screw |
| 685 | 293300192 | O-Ring |
| 700 | 710008088 | Low Beam Light |
| 701 | 710008396 | Exterior Headlight Support |
| 705 | 250000720 | Torx Screw K50 X 16 |
| 710 | 710006910 | HIgh Beam Light |
| 711 | 710008394 | Interior Headlight Support |
| 741 | 710007217 | Amber Light Turn Signal |
| 755 | 710005766 | Pilot Light Trailer Flasher |
| 756 | 710005767 | Pilot Light Tail Lamp |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207667044 | Hex. Flange Screw M6 X 70 |
