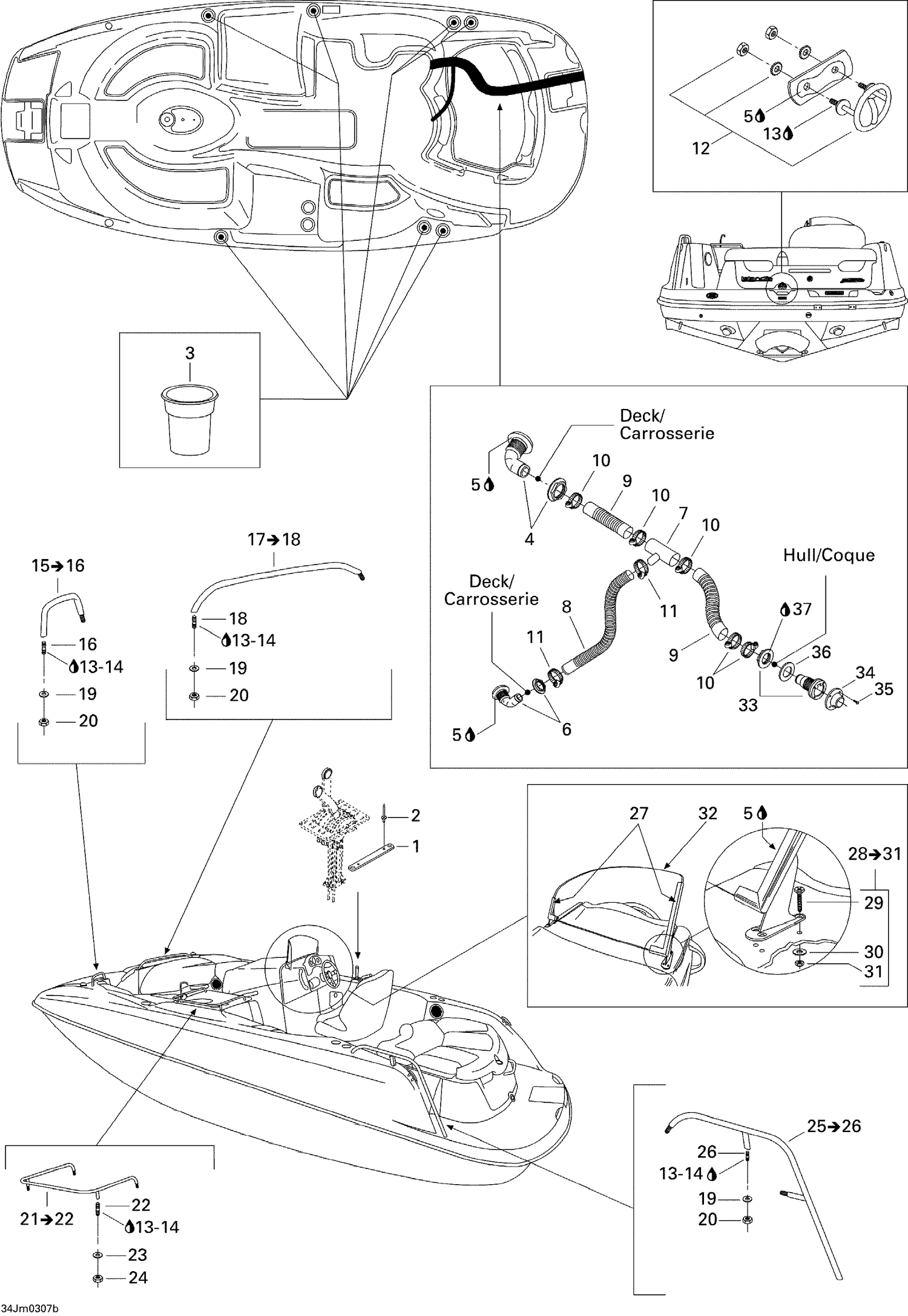

| Ref | Part Number | Description |
|---|
| 1 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
| 2 |
293150013 |
Pop Rivet 3/16" |
| 3 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 4 |
293710084 |
THRU-HULL FITTING 90 X 1-1/2 - Call your local BRP dealership |
| 5 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 6 |
204071166 |
DRAIN FITTING 90 - Call your local BRP dealership |
| 7 |
204071167 |
T-FITTING - Call your local BRP dealership |
| 8 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 9 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership |
| 10 |
293650074 |
Norma Clamp |
| 11 |
293650016 |
Tridon Clamp |
| 12 |
204070206 |
Ski Tow Hook |
| 13 |
293800005 |
Loctite 271, 10 ml |
| 14 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 16 |
204100050 |
STUD 3/8?-16 X 2? - Call your local BRP dealership |
| 18 |
204100050 |
STUD 3/8?-16 X 2? - Call your local BRP dealership |
| 19 |
234002600 |
Flat Washer 10 mm, Stainless |
| 20 |
204100032 |
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership |
| 22 |
204100033 |
STUD 1/4?-20 X 2? - Call your local BRP dealership |
| 23 |
234082600 |
Flat Washer 8 mm, Stainless |
| 24 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 26 |
204100050 |
STUD 3/8?-16 X 2? - Call your local BRP dealership |
| 27 |
204070984 |
Windshield Frame |
| 29 |
208562560 |
Phillips Screw M6 X 25 |
| 30 |
234061600 |
Stainless Flat Washer M6 |
| 31 |
232561414 |
Elastic Stop Nut M6 |
| 32 |
204070858 |
Front Windshield |
| 33 |
204060071 |
THRU HULL FITTING - Call your local BRP dealership |
| 34 |
204060188 |
SCUPPER VALVE - Call your local BRP dealership |
| 35 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 36 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
