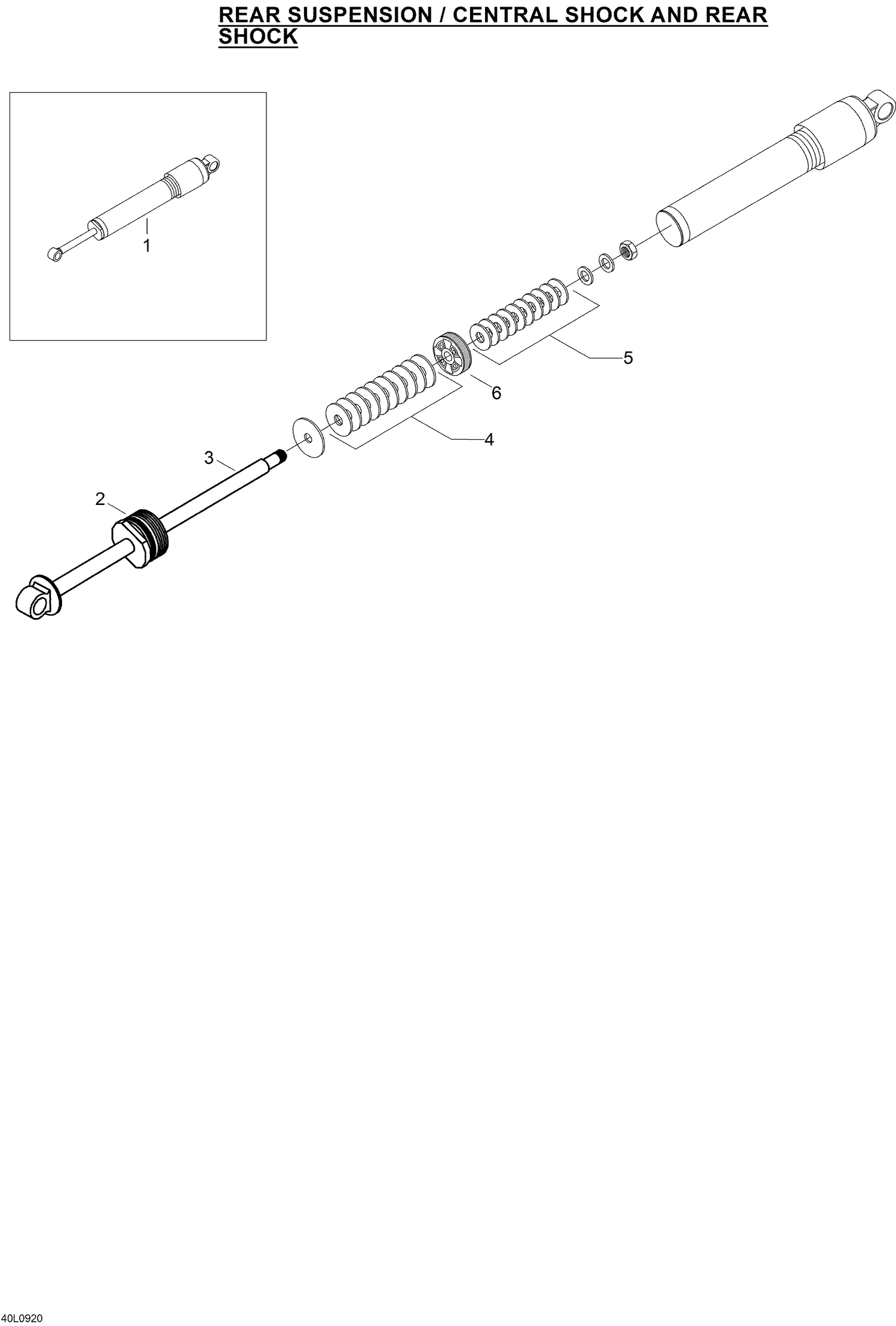

07- Take Apart Shock rear
Parts (83)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192059 | Shock, rear arm |
| 2 | Not | Available As Spare Part - Seal carrier assy |
| 3 | Not | Available As Spare Part - Rod ass'y, front arm |
| 4 | 230029 | Leaf valve 20x0.114 |
| 4 | 230030 | Leaf valve 20x0.152 |
| 4 | 230031 | Leaf valve 20x0.203 |
| 4 | 230032 | Leaf valve 20x0.254 |
| 4 | 230033 | Leaf valve 34x0.114 |
| 4 | 230034 | Leaf valve 34x0.152 |
| 4 | 230035 | Leaf valve 34x0.203 |
| 4 | 230036 | Leaf valve 34x0.254 |
| 4 | 230037 | Leaf valve 36x0.114 |
| 4 | 230040 | Leaf valve 38x0.152 |
| 4 | 230041 | Leaf valve 38x0.203 |
| 4 | 230042 | Leaf valve 38x0.254 |
| 4 | 230082 | Leaf valve 32x0.114 |
| 4 | 503189011 | Leaf valve 22x0.114 |
| 4 | 503189013 | Leaf valve 22x0.203 |
| 4 | 503189016 | Leaf valve 24x0.114 |
| 4 | 503189017 | Leaf valve 24x0.152 |
| 4 | 503189018 | Leaf valve 24x0.203 |
| 4 | 503189019 | Leaf valve 24x0.254 |
| 4 | 503189021 | Leaf valve 26x0.114 |
| 4 | 503189022 | Leaf valve 26x0.152 |
| 4 | 503189023 | Leaf valve 26x0.203 |
| 4 | 503189024 | Leaf valve 26x0.254 |
| 4 | 503189026 | Leaf valve 28x0.114 |
| 4 | 503189027 | Leaf valve 28x0.152 |
| 4 | 503189028 | Leaf valve 28x0.203 |
| 4 | 503189029 | Leaf valve 28x0.254 |
| 4 | 503189031 | Leaf valve 30x0.114 |
| 4 | 503189032 | Leaf valve 30x0.152 |
| 4 | 503189033 | Leaf valve 30x0.203 |
| 4 | 503189036 | Leaf valve 36x0.152 |
| 4 | 503189037 | Leaf valve 36x0.203 |
| 4 | 503189038 | Leaf valve 36x0.254 |
| 4 | 503189039 | Leaf valve 40x0.114 |
| 4 | 503189040 | Leaf valve 40x0.203 |
| 4 | 503189041 | Leaf valve 40x0.254 |
| 4 | Not | Available As Spare Part - Leaf valve 22x0.152 |
| 5 | 230029 | Leaf valve 20x0.114 |
| 5 | 230030 | Leaf valve 20x0.152 |
| 5 | 230031 | Leaf valve 20x0.203 |
| 5 | 230032 | Leaf valve 20x0.254 |
| 5 | 230033 | Leaf valve 34x0.114 |
| 5 | 230034 | Leaf valve 34x0.152 |
| 5 | 230035 | Leaf valve 34x0.203 |
| 5 | 230036 | Leaf valve 34x0.254 |
| 5 | 230037 | Leaf valve 36x0.114 |
| 5 | 230040 | Leaf valve 38x0.152 |
| 5 | 230041 | Leaf valve 38x0.203 |
| 5 | 230042 | Leaf valve 38x0.254 |
| 5 | 230082 | Leaf valve 32x0.114 |
| 5 | 503189011 | Leaf valve 22x0.114 |
| 5 | 503189013 | Leaf valve 22x0.203 |
| 5 | 503189014 | Leaf valve 22x0.254 |
| 5 | 503189016 | Leaf valve 24x0.114 |
| 5 | 503189017 | Leaf valve 24x0.152 |
| 5 | 503189018 | Leaf valve 24x0.203 |
| 5 | 503189019 | Leaf valve 24x0.254 |
| 5 | 503189020 | Leaf valve 24x0.305 |
| 5 | 503189021 | Leaf valve 26x0.114 |
| 5 | 503189022 | Leaf valve 26x0.152 |
| 5 | 503189023 | Leaf valve 26x0.203 |
| 5 | 503189024 | Leaf valve 26x0.254 |
| 5 | 503189026 | Leaf valve 28x0.114 |
| 5 | 503189027 | Leaf valve 28x0.152 |
| 5 | 503189028 | Leaf valve 28x0.203 |
| 5 | 503189029 | Leaf valve 28x0.254 |
| 5 | 503189031 | Leaf valve 30x0.114 |
| 5 | 503189032 | Leaf valve 30x0.152 |
| 5 | 503189033 | Leaf valve 30x0.203 |
| 5 | 503189036 | Leaf valve 36x0.152 |
| 5 | 503189037 | Leaf valve 36x0.203 |
| 5 | 503189038 | Leaf valve 36x0.254 |
| 5 | 503189039 | Leaf valve 40x0.114 |
| 5 | 503189040 | Leaf valve 40x0.203 |
| 5 | 503189041 | Leaf valve 40x0.254 |
| 5 | Not | Available As Spare Part - Leaf valve 22x0.152 |
| 6 | 230038 | Piston 1.7 mm (rear arm) |
| 6 | 230039 | Piston 2.0 mm |
| 6 | 230044 | Piston 1.2 mm (front arm) |
| 6 | Not | Available As Spare Part - Piston 2.2 mm |
