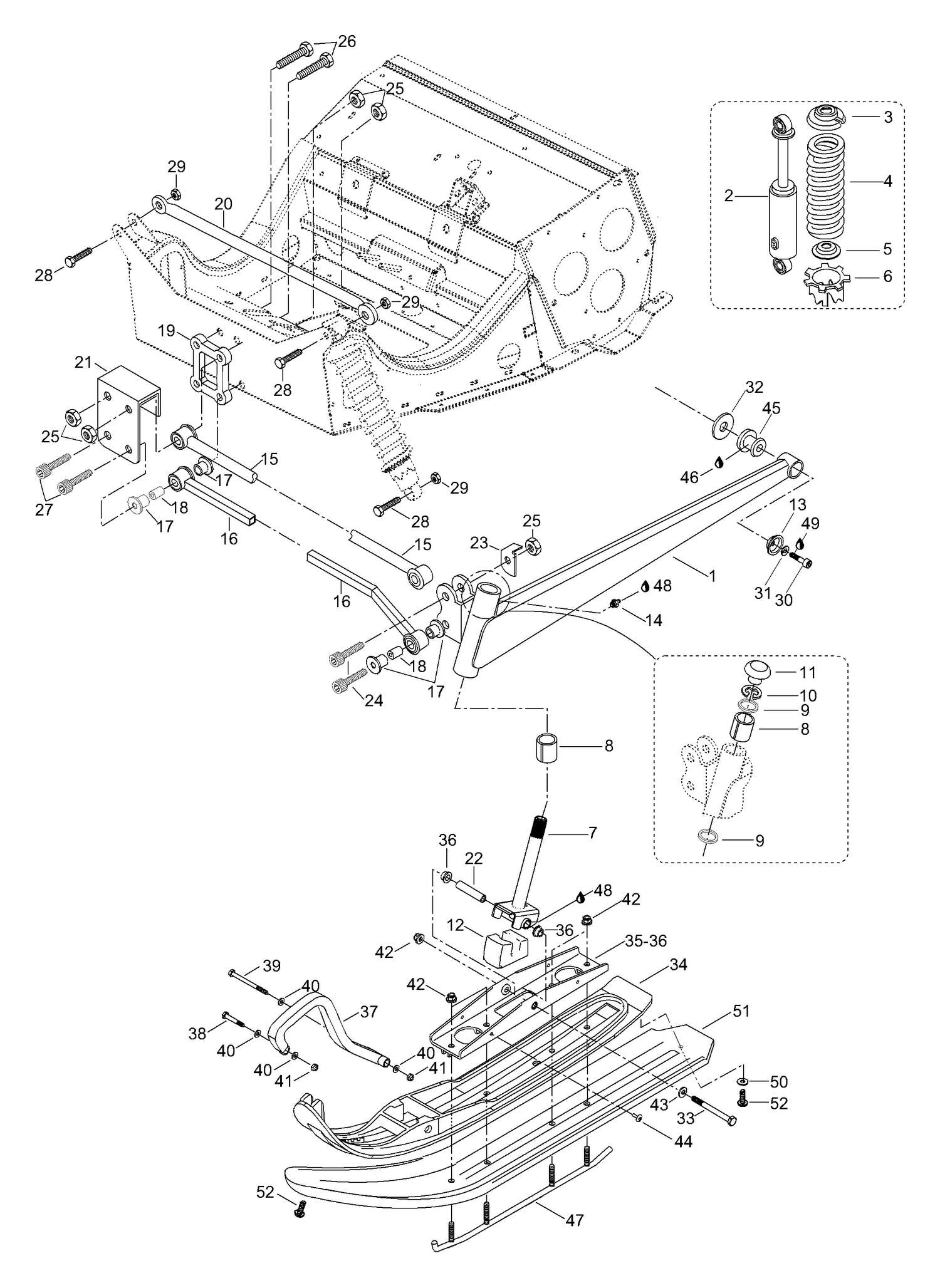

| Ref | Part Number | Description |
|---|
| 1 |
5246402 |
L.H. Swing arm |
| 1 |
5246403 |
R.H. Swing arm |
| 2 |
23225 |
Shock |
| 3 |
5340862 |
Spring stopper |
| 4 |
250252 |
Spring |
| 5 |
23177001 |
Spring guide |
| 6 |
23176001 |
Cam |
| 7 |
506151234 |
Ski leg |
| 8 |
572069900 |
Cushion |
| 9 |
20091 |
Washer |
| 10 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 11 |
572091300 |
Cap |
| 12 |
505072018 |
SKI STOPPER - Call your local BRP dealership This part replaces 506151233. |
| 13 |
705007171 |
Cup This part replaces 506115800. |
| 14 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 15 |
5345902 |
Arm assy |
| 16 |
5245228 |
Arm Lower Weld |
| 17 |
506149100 |
CUSHION - Call your local BRP dealership |
| 18 |
506149200 |
Sleeve |
| 19 |
5345384 |
Spacer |
| 20 |
5348069 |
Bar |
| 21 |
5345716 |
PLATE-LINK - Call your local BRP dealership |
| 22 |
506133300 |
Sleeve |
| 23 |
5445914 |
R.H Limiter |
| 23 |
5445915 |
L.H Limiter |
| 24 |
40371 |
Allen screw M12x55 |
| 25 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 33013. |
| 26 |
40185 |
Screw M12x75 |
| 27 |
205027544 |
SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership This part replaces 40370. |
| 28 |
40186 |
Screw M10x55 |
| 29 |
33012 |
Nut elastic M10 |
| 30 |
40810 |
Allen screw M8x20 |
| 31 |
20014 |
Spring washer |
| 32 |
31013 |
Shim Ring |
| 33 |
40814 |
Allen screw M10x110 |
| 34 |
505070189 |
Flexible ski liner |
| 36 |
505070001 |
BUSHING - Call your local BRP dealership |
| 37 |
505070963 |
Plastic handle This part replaces 572101000. |
| 38 |
40009 |
Screw M8x50 |
| 39 |
40869 |
Screw M8x100 |
| 40 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 41 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 42 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 43 |
20105 |
Washer |
| 44 |
390911100 |
RIVET_POP 1/4 - Call your local BRP dealership |
| 45 |
570062200 |
DAMPER - Call your local BRP dealership |
| 46 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 47 |
860501900 |
CARBIDE RUNNER - Call your local BRP dealership |
| 48 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 49 |
293800060 |
Loctite 243, 10ml |
| 50 |
20037 |
Washer |
| 51 |
5147975 |
Skiliner |
