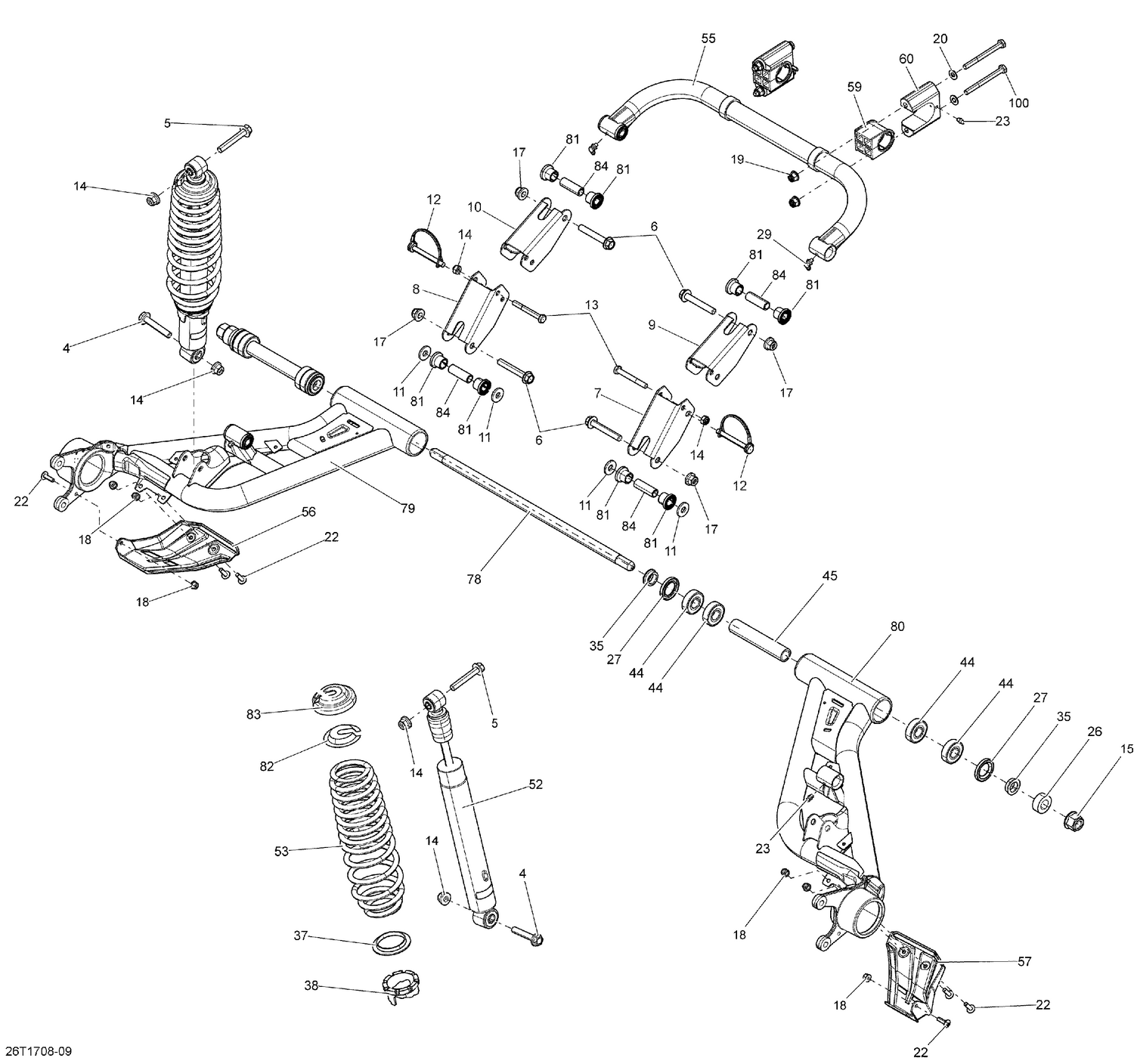

08- Rear Suspension
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 207605546 | Hex. Flange Screw M10 X 55 |
| 5 | 207606046 | Hex. Flange Screw M10 X 6 |
| 6 | 207606536 | Hex. Flange Screw M10 X 65 |
| 6 | 250000520 | Hex. Screw M10 X 70 |
| 7 | 706001765 | RH Linkage Outer Part |
| 8 | 706001600 | LH Linkage Outer Part |
| 9 | 706001766 | RH Linkage Inner Part |
| 10 | 706001601 | Linkage Inner Part |
| 11 | 505073634 | Washer |
| 12 | 706001602 | Pin Onto The Shaft |
| 13 | 207086544 | Hex. Screw M8 x 65 |
| 14 | 232581414 | Hex. Elastic Stop Nut M8 |
| 14 | 233201436 | Hex. Flange Elastic Nut M10 |
| 15 | 233211466 | Hex. Flange Elastic Nut M16 |
| 17 | 233201414 | Hex. Flange Elastic Nut M10 |
| 18 | 233261494 | Hex. Flange Elastic Nut M6 |
| 19 | 233281434 | Hex. Flange Elastic Nut M8 |
| 20 | 234081430 | Flat Washer M8 |
| 22 | 250000712 | Torx Screw M6 X 20 This part replaces 250000075. |
| 23 | 250000315 | Grease Fitting |
| 26 | 250200112 | Flat Washer M17 |
| 27 | 293200144 | Seal |
| 29 | 293550056 | Grease Fitting 90° |
| 35 | 706001282 | Spacer |
| 37 | 503187500 | Spring Guide |
| 38 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 44 | 293350145 | Ball Bearing This part replaces 706000826. |
| 45 | 706002259 | Spacer This part replaces 706000828. |
| 52 | 706000958 | Rear Shock |
| 53 | 706000963 | Black Spring This part replaces 706000963. |
| 55 | 706000988 | Swaybar |
| 56 | 706001009 | LH PROTECTOR - Call your local BRP dealership |
| 57 | 706001010 | RH PROTECTOR - Call your local BRP dealership |
| 59 | 706004640 | Stabilizer Bar Bushing This part replaces 706001098. |
| 60 | 706001099 | Bushing Holder |
| 78 | 706001664 | Axial Pivot M16 |
| 79 | 706001860 | Black LH Swing Arm |
| 80 | 706001861 | Black RH Swing Arm |
| 81 | 706200181 | Bushing |
| 82 | 706200785 | Cap |
| 83 | 706200881 | Spring Stopper |
| 84 | 706201587 | Sleeve |
