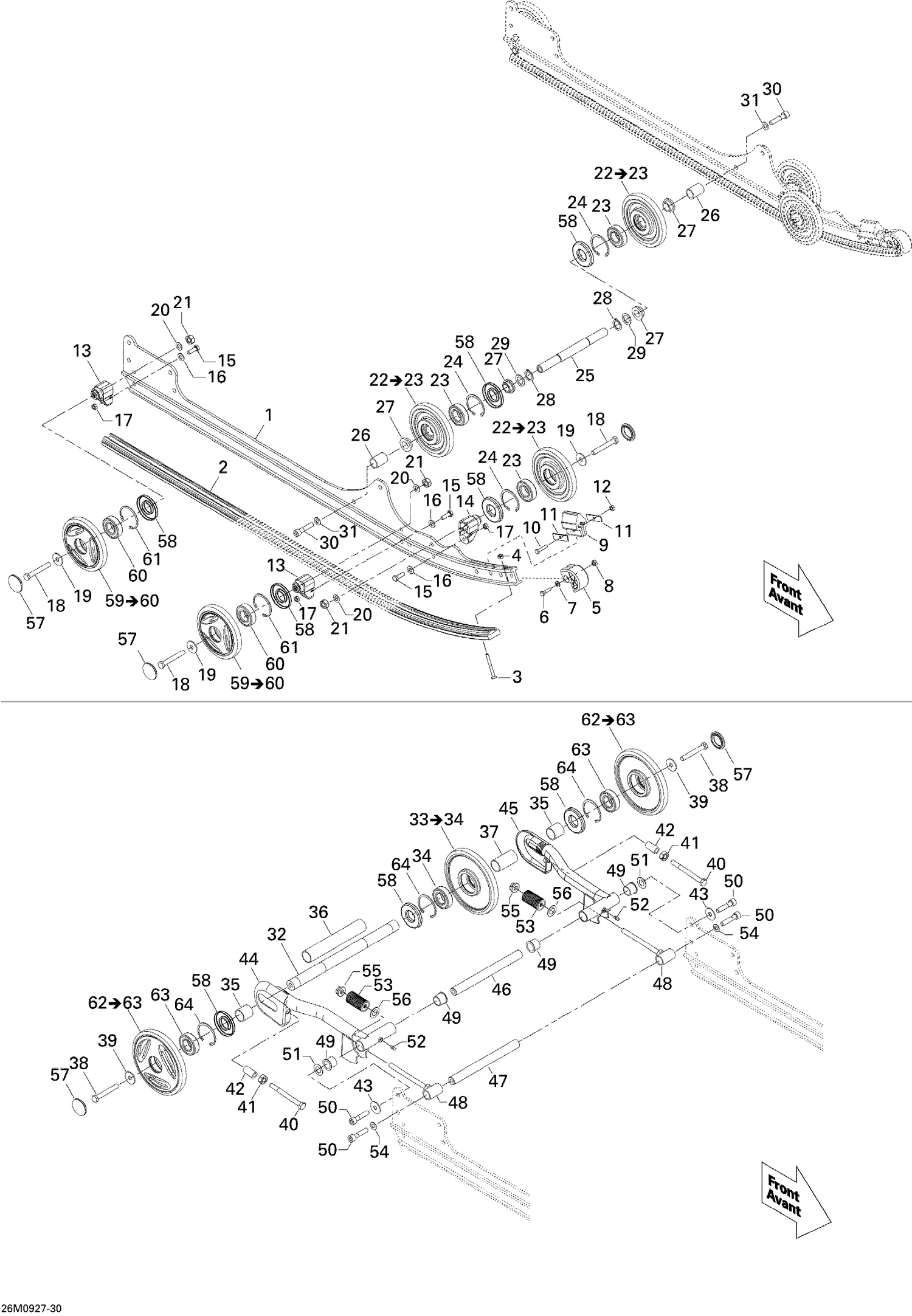

| Ref | Part Number | Description |
|---|
| 1 |
605250418 |
RUNNER - Call your local BRP dealership |
| 2 |
605355362 |
Slide Shoe |
| 3 |
M40059 |
Screw M6X60 |
| 4 |
232561414 |
Elastic Stop Nut M6 |
| 5 |
605348954 |
Runner Protector |
| 6 |
207162544 |
Hex. Screw M6 X 25 |
| 7 |
234061410 |
Flat Washer 6 mm |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 9 |
5442328 |
STOPPER-RUBBER - Call your local BRP dealership This part replaces M5442328. |
| 10 |
207063044 |
Hex. Screw M6 X 30 |
| 11 |
M548470 |
Plate |
| 12 |
232561414 |
Elastic Stop Nut M6 |
| 13 |
605450182 |
SUPPORT - Call your local BRP dealership |
| 14 |
605450182 |
SUPPORT - Call your local BRP dealership |
| 15 |
207182544 |
Hex. Screw M8 X 25 |
| 16 |
234081410 |
Flat Washer 8 mm This part replaces M20104. |
| 17 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 18 |
M40089 |
Screw |
| 19 |
503183100 |
Washer |
| 20 |
234081410 |
Flat Washer 8 mm This part replaces M20104. |
| 21 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 23 |
293350115 |
Ball Bearing This part replaces 503190795. |
| 24 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 25 |
M5347949 |
Shaft |
| 26 |
5447951 |
Sleeve - Call your local BRP dealership This part replaces M5447951. |
| 27 |
503189534 |
Cushion |
| 28 |
293370056 |
Circlip 20X1.75 DIN471 This part replaces M31007. |
| 29 |
M31091 |
SHIM - Call your local BRP dealership |
| 30 |
40134 |
Screw Socket HD.DIN 912 This part replaces M40134. |
| 31 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 32 |
M5445986 |
Shaft |
| 34 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 35 |
M5444098 |
Sleeve L=29 |
| 36 |
5444096 |
Spacer This part replaces M5444096. |
| 37 |
M5444097 |
SLEEVE - Call your local BRP dealership |
| 38 |
M40050 |
Hex. Screw With Nylon Patch |
| 39 |
503183300 |
Washer |
| 40 |
230100044 |
HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 41 |
232006414 |
Hex. Nut M10 |
| 42 |
605633002 |
Spacer |
| 43 |
512056700 |
Lock Washer |
| 44 |
605251780 |
EXTENSION SWING RH - Call your local BRP dealership |
| 45 |
605251779 |
EXTENSION SWING LH - Call your local BRP dealership |
| 46 |
M5346900 |
SHAFT - Call your local BRP dealership |
| 47 |
M5343471 |
SHAFT - Call your local BRP dealership |
| 48 |
5447373 |
Eye bolt adjuster This part replaces M5447373. |
| 49 |
31024 |
Cushion This part replaces M31024. |
| 50 |
40134 |
Screw Socket HD.DIN 912 This part replaces M40536. |
| 51 |
20116 |
Washer This part replaces M20116. |
| 52 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011. |
| 53 |
25004 |
Cup Spring This part replaces M25004. |
| 54 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 55 |
232006414 |
Hex. Nut M10 |
| 56 |
234002410 |
Flat Washer 10 mm This part replaces M20011. |
| 57 |
570063600 |
Wheel Cap |
| 58 |
572089000 |
LABYRINTH SEAL - Call your local BRP dealership |
| 60 |
293350115 |
Ball Bearing This part replaces 503190795. |
| 61 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 63 |
293350115 |
Ball Bearing This part replaces 503190795. |
