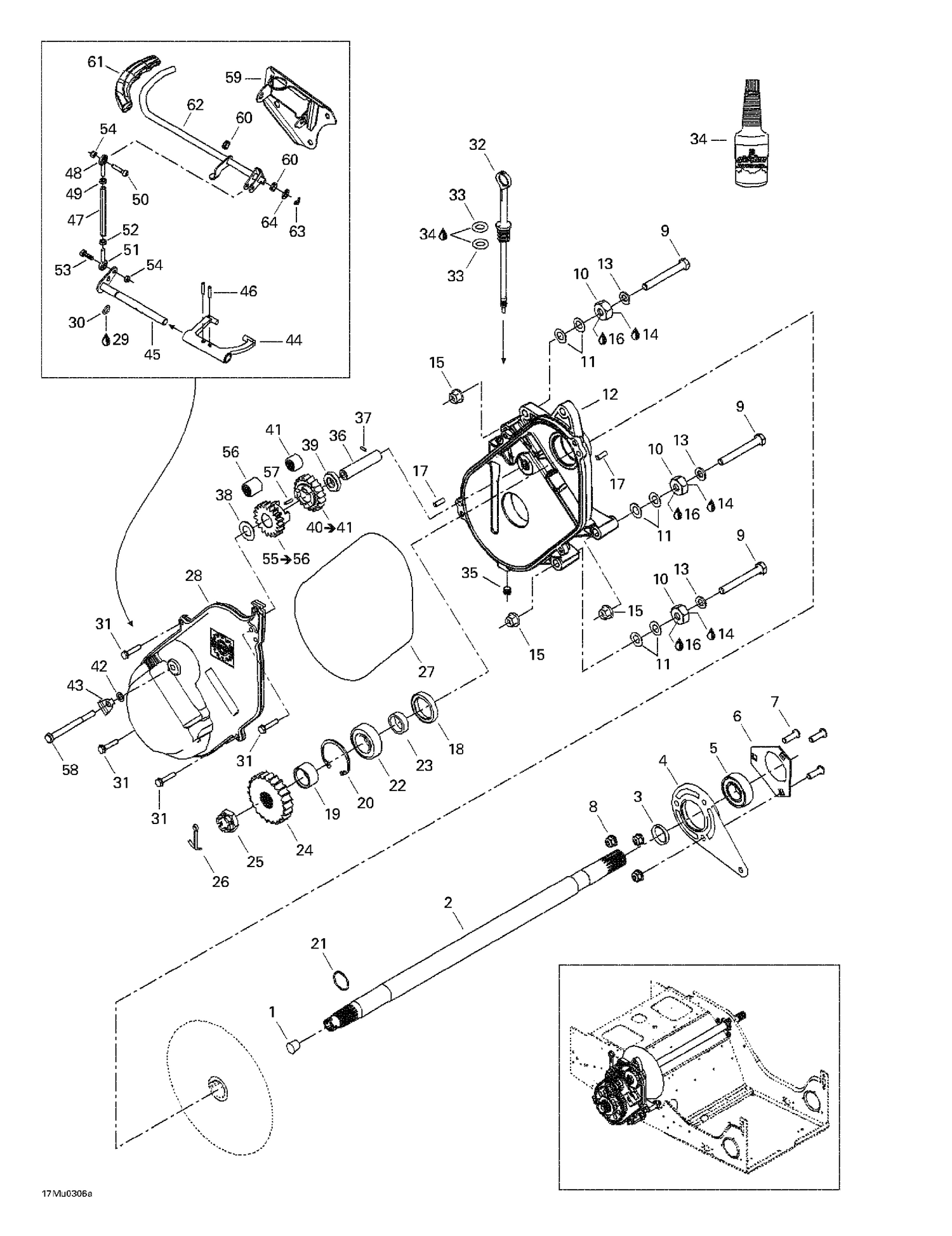

| Ref | Part Number | Description |
|---|
| 1 |
414784800 |
CORK - Call your local BRP dealership |
| 2 |
501026300 |
COUNTER SHAFT - Call your local BRP dealership |
| 3 |
504149100 |
Spacer |
| 4 |
080044200 |
Spacer (Casting) |
| 5 |
415129555 |
Ball Bearing Kit This part replaces 504152026. |
| 6 |
501025000 |
FLANGE - Call your local BRP dealership |
| 7 |
205482546 |
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership |
| 8 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 9 |
207108044 |
HEX. SCREW M10 X 80 - Call your local BRP dealership |
| 10 |
504083800 |
Spacer |
| 11 |
504073700 |
WASHER - Call your local BRP dealership |
| 12 |
504152062 |
Chaincase |
| 13 |
503183800 |
Washer |
| 14 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 15 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
732620001 |
CYLINDER PIN - Call your local BRP dealership |
| 18 |
293200158 |
Oil Seal This part replaces 415049300. |
| 19 |
507031500 |
SPACER - Call your local BRP dealership |
| 20 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 21 |
414876700 |
O-RING - Call your local BRP dealership |
| 22 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 23 |
504147200 |
SHIM - Call your local BRP dealership |
| 24 |
504153910 |
Sprocket 21 Teeth This part replaces 504096200. |
| 25 |
250000012 |
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership |
| 26 |
371006300 |
PIN COTTER - Call your local BRP dealership |
| 27 |
415046400 |
O-Ring |
| 28 |
504151845 |
COVER - Call your local BRP dealership |
| 29 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 30 |
414773200 |
O-RING - Call your local BRP dealership |
| 31 |
210263050 |
Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 32 |
504151750 |
FILLER CAP ASSY - Call your local BRP dealership |
| 33 |
414969400 |
O-RING - Call your local BRP dealership |
| 35 |
504151921 |
Plug 1/8”-27 |
| 36 |
504083100 |
Reverse Shaft |
| 37 |
250400010 |
Rolled Pin M3 X 10 |
| 38 |
504077300 |
Spacer |
| 39 |
504078700 |
Ring |
| 41 |
414773100 |
NEEDLE BEARING - Call your local BRP dealership |
| 42 |
504082900 |
Washer |
| 43 |
504087700 |
TAB LOCK - Call your local BRP dealership |
| 44 |
504075800 |
Fork |
| 45 |
504151806 |
Fork Axle |
| 46 |
414772500 |
SPRING PIN - Call your local BRP dealership |
| 47 |
504151814 |
TIE ROD - Call your local BRP dealership |
| 48 |
414773400 |
RH BALL-JOINT - Call your local BRP dealership |
| 49 |
232061414 |
Hex. Nut M6 |
| 50 |
205062560 |
Socket Head Screw M6 X 25 |
| 51 |
414773500 |
LH BALL-JOINT - Call your local BRP dealership |
| 52 |
232066414 |
LH HEX. NUT M6 - Call your local BRP dealership |
| 53 |
207162044 |
Hex. Screw M6 X 20 |
| 54 |
232561414 |
Elastic Stop Nut M6 |
| 56 |
414805000 |
NEEDLE BEARING - Call your local BRP dealership |
| 57 |
570048600 |
Alignement Rod |
| 58 |
207089044 |
Hex. Screw M8 X 90 |
| 59 |
504151823 |
SUPPORT, REVERSE - Call your local BRP dealership |
| 60 |
504151818 |
BUSHING - Call your local BRP dealership |
| 61 |
570064600 |
Grip |
| 62 |
504151810 |
HANDLE - Call your local BRP dealership |
| 63 |
371800800 |
COTTER PIN - Call your local BRP dealership |
