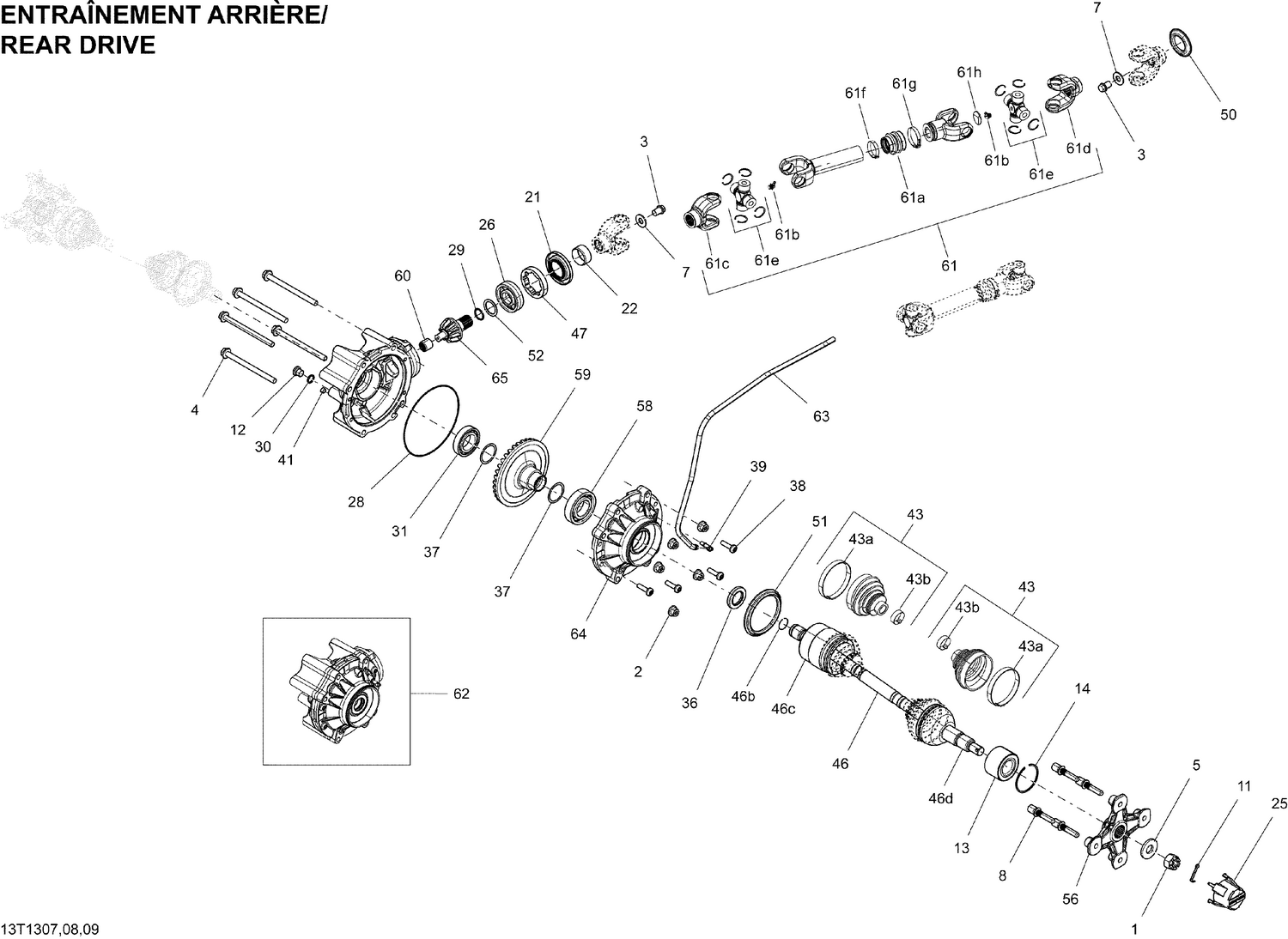

08- Drive System, Rear
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 |
| 3 | 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 3 | 250001039 | Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 4 | 250001041 | Hex. Flange Screw M10 X 135 This part replaces 250000508. |
| 5 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 7 | 250200102 | Flat Washer M12 |
| 11 | 250400036 | Cotter Pin |
| 12 | 705500504 | Fill Level Plug |
| 13 | 293350150 | Ball Bearing This part replaces 293350040. |
| 14 | 293370019 | Circlip |
| 21 | 705401481 | Oil Seal This part replaces 705400027. |
| 22 | 705400036 | Wear Ring |
| 25 | 705400928 | Wheel Cap |
| 26 | 705500260 | Ball Bearing |
| 28 | 705500265 | Seal |
| 29 | 705500267 | O-Ring |
| 30 | 705500506 | Copper Washer |
| 31 | 705502737 | Ball Bearing This part replaces 705500749. |
| 36 | 705501996 | Oil Seal This part replaces 705501196. |
| 37 | 705502060 | Differential Shim 0.02 mm This part replaces 703500548. |
| 38 | 705401601 | Screw This part replaces 705500892. |
| 39 | 705500893 | VENT VALVE - Call your local BRP dealership |
| 41 | 705500894 | Drain Plug |
| 43 | 705501864 | Boot Kit This part replaces 705501777. |
| 43a | 715900241 | Oetiker Clamp, 82.1 mm |
| 43b | 715900242 | Oetiker Clamp, 27.3 mm |
| 46 | 705501485 | Rear - Premium CV Axle |
| 46 | 705501486 | Rear - Premium CV Axle |
| 46b | 705501781 | Circlip |
| 46c | 705501780 | PLUNGING JOINT - Call your local BRP dealership |
| 46d | 705501776 | JOINT_CV EXT - Call your local BRP dealership |
| 47 | 705502059 | Nut This part replaces 705500987. |
| 50 | 705501123 | Protector |
| 51 | 705501124 | Wear Ring |
| 52 | 705501162 | Pinion Gear Shim |
| 52 | 705502061 | Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 58 | 705502738 | Ball Bearing This part replaces 705501389. |
| 59 | 703500873 | Gear-10/36 Too Kit This part replaces 705501403. |
| 60 | 705501408 | Needle Bearing |
| 61a | 715900118 | Rubber Boot |
| 61b | 715900184 | Grease Fitting |
| 61c | 715900101 | Fixe Yoke |
| 61d | 715900129 | Fixed Joint |
| 61e | 715900326 | Universal Joint This part replaces 715500371. |
| 61f | 509000045 | Oetiker Gear Clamp 36.1MM |
| 61g | 293650138 | Oetiker Gear Clamp 44.0MM |
| 61h | 715900187 | COVER - Call your local BRP dealership |
| 62 | 705501419 | Rear Differential Ass'y |
| 63 | 219704410 | Polyurethane Hose 10000Mm Long |
| 64 | 705501507 | REAR DIFFERENTIAL COVER - Call your local BRP dealership |
