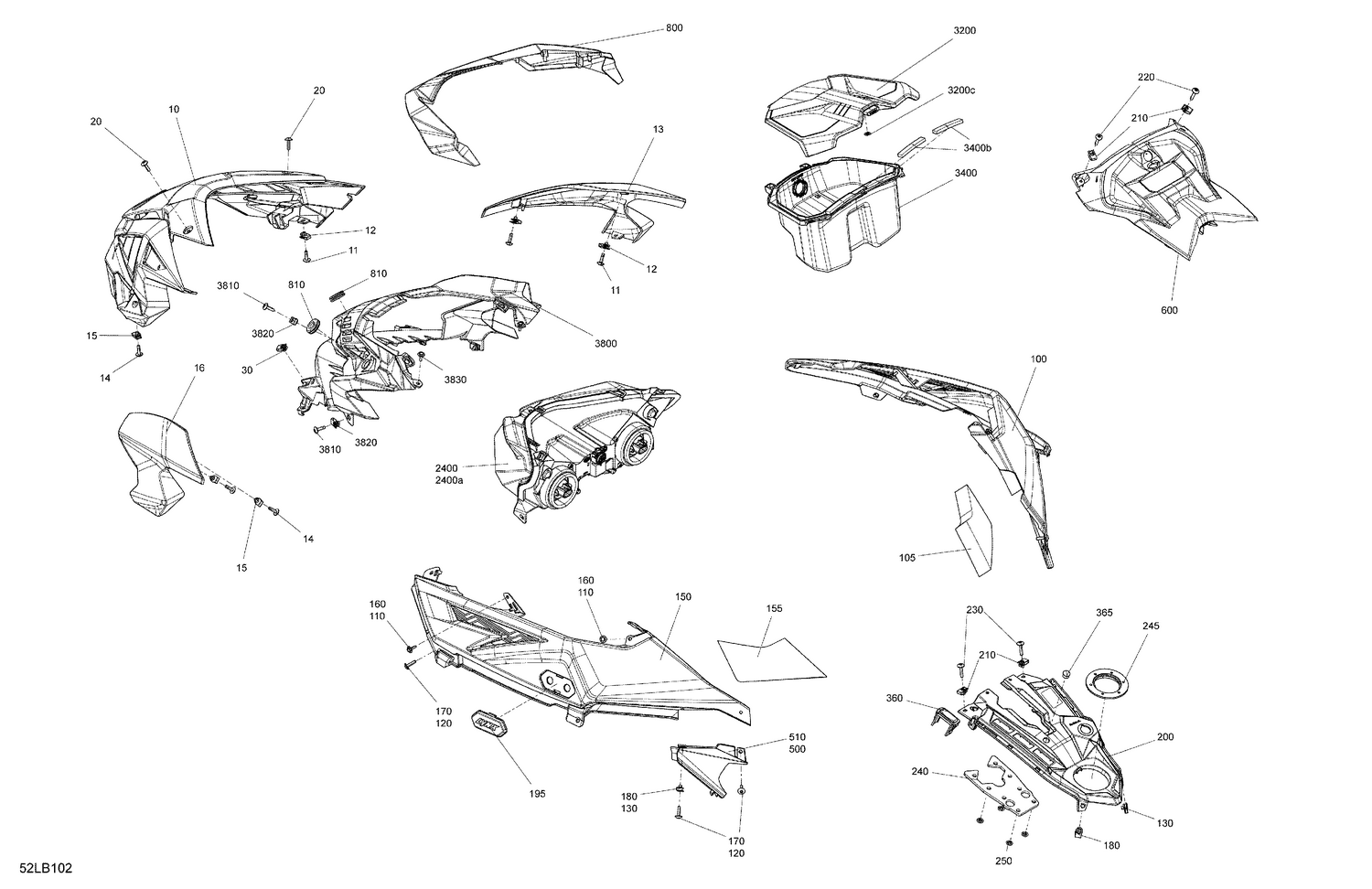

07- Body - Hood Section and WindShield
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517306115 | Middle Hood |
| 11 | 250000528 | Torx Screw M5 X 20 |
| 12 | 250000958 | Panel Nut M5 X 0.8 |
| 13 | 517306484 | Black, RH Hood Front |
| 13 | 517307090 | Blue, RH Front Hood |
| 14 | 250000528 | Torx Screw M5 X 20 |
| 15 | 250000958 | Panel Nut M5 X 0.8 |
| 16 | 517306485 | LH Hood Front |
| 16 | 517307091 | LH Front Hood |
| 20 | 250000528 | Torx Screw M5 X 20 |
| 30 | 250000958 | Panel Nut M5 X 0.8 |
| 100 | 517307222 | RH Upper Side Panel |
| 105 | 517308487 | RH Upper Side Panel Foam This part replaces 517306695. |
| 110 | 250000725 | Screw M4 X 16 |
| 120 | 250000528 | Torx Screw M5 X 20 |
| 130 | 250000958 | Panel Nut M5 X 0.8 |
| 150 | 517306069 | LH Upper Side Panel |
| 155 | 517308488 | LH Upper Side Panel Foam This part replaces 517306696. |
| 160 | 250000725 | Screw M4 X 16 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 180 | 250000958 | Panel Nut M5 X 0.8 |
| 195 | 517308121 | Upper Side Panel Cap |
| 200 | 517307341 | Rear Console |
| 210 | 250000958 | Panel Nut M5 X 0.8 |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000587 | Torx Screw M5 X 26 |
| 240 | 517306398 | Foam Console |
| 245 | 517304518 | Console Nut |
| 250 | 732610072 | Push Nut |
| 360 | 517306808 | Switch Hole Cap |
| 365 | 572051500 | Cap |
| 500 | 517306918 | RH Cover Plate |
| 510 | 517306919 | LH Cover Plate |
| 600 | 517305782 | Indicator Support |
| 800 | 517306187 | Wind Deflector |
| 810 | 517303756 | Grommet |
| 2400a | 415130081 | Bulb |
| 3200c | 732610072 | Push Nut |
| 3400b | 517305157 | Seal Joint |
| 3800 | 517306824 | Black, Head Lamp Bezel |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
