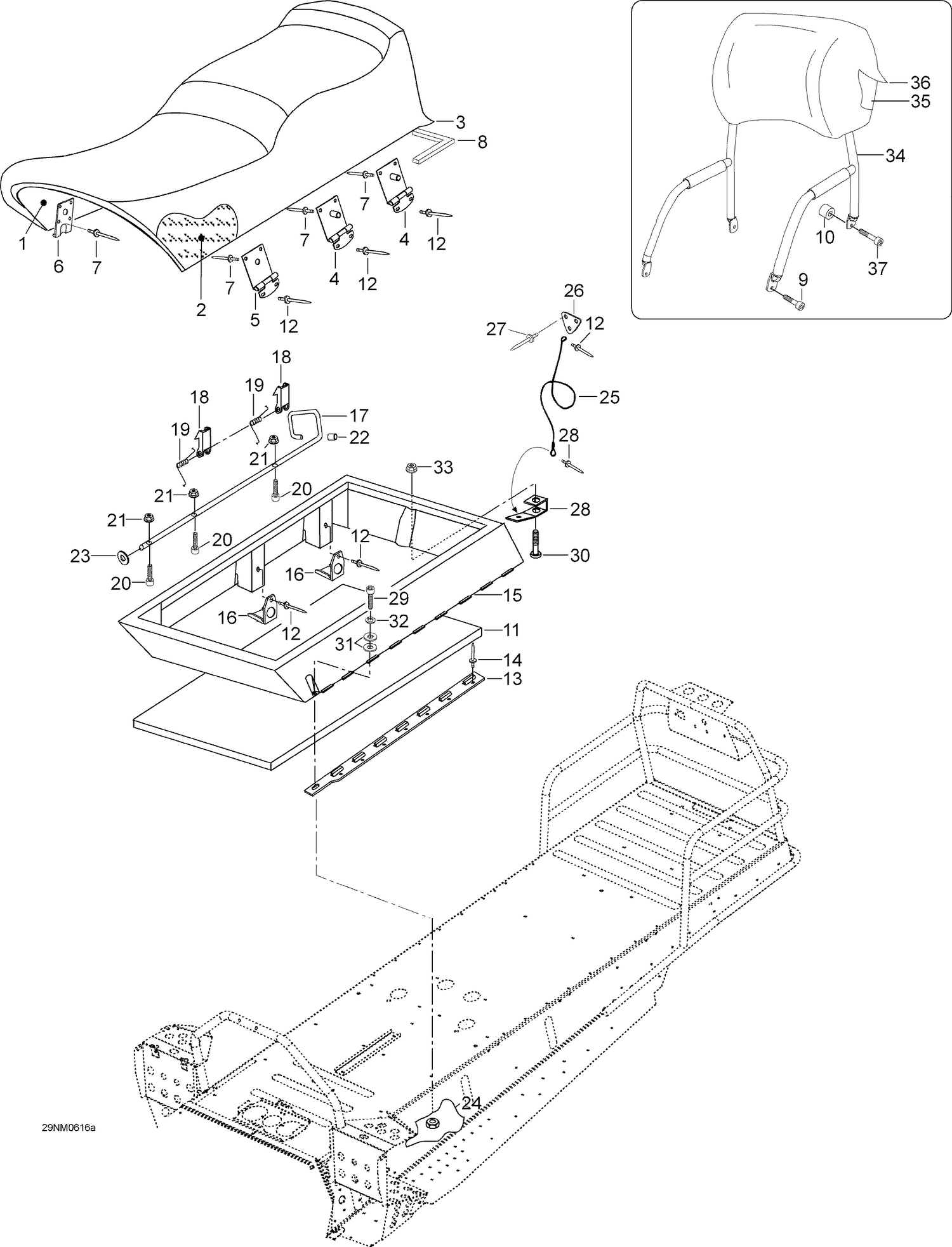

| Ref | Part Number | Description |
|---|
| 1 |
M519394 |
Sub Seat |
| 2 |
605148623 |
Foam Seat |
| 3 |
605153063 |
COVER - Call your local BRP dealership |
| 4 |
M549874 |
HINGE - Call your local BRP dealership |
| 5 |
M5440581 |
HINGE - Call your local BRP dealership |
| 6 |
M549732 |
Lock Plate |
| 7 |
M36071 |
Rivet |
| 8 |
M5440059 |
SEALING STRIP PROFIL - Call your local BRP dealership |
| 9 |
M40388 |
SCREW-SOCKET - Call your local BRP dealership |
| 10 |
M5440665 |
Spacer |
| 12 |
M36489 |
Rivet |
| 13 |
M5144028 |
LH Support |
| 13 |
M5144029 |
RH Support |
| 14 |
36108 |
Rivet This part replaces M36083. |
| 15 |
M5142066 |
Welded Seat Base Weld |
| 16 |
M5443661 |
Support |
| 17 |
M5344987 |
Pivot Pin |
| 18 |
605451589 |
CAM LOCK - Call your local BRP dealership |
| 19 |
M5444439 |
SPRING - Call your local BRP dealership |
| 20 |
M40144 |
Screw M4 X 16 |
| 21 |
232541414 |
Elastic Stop Nut M4 |
| 22 |
M28019 |
Cap |
| 23 |
234081410 |
Flat Washer 8 mm This part replaces M20004. |
| 24 |
M33066 |
NUT M6 - Call your local BRP dealership |
| 26 |
605452535 |
SUPPORT - Call your local BRP dealership |
| 27 |
M36038 |
Rivet |
| 29 |
M40052 |
Socket Head Screw M6 X 20 |
| 31 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 32 |
234161471 |
Lock Washer M6, Black |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 34 |
M5245664 |
Backrest |
| 35 |
M539399 |
Backrest Foam |
| 36 |
5340917 |
COVER-BACKREST - Call your local BRP dealership This part replaces M5340917. |
