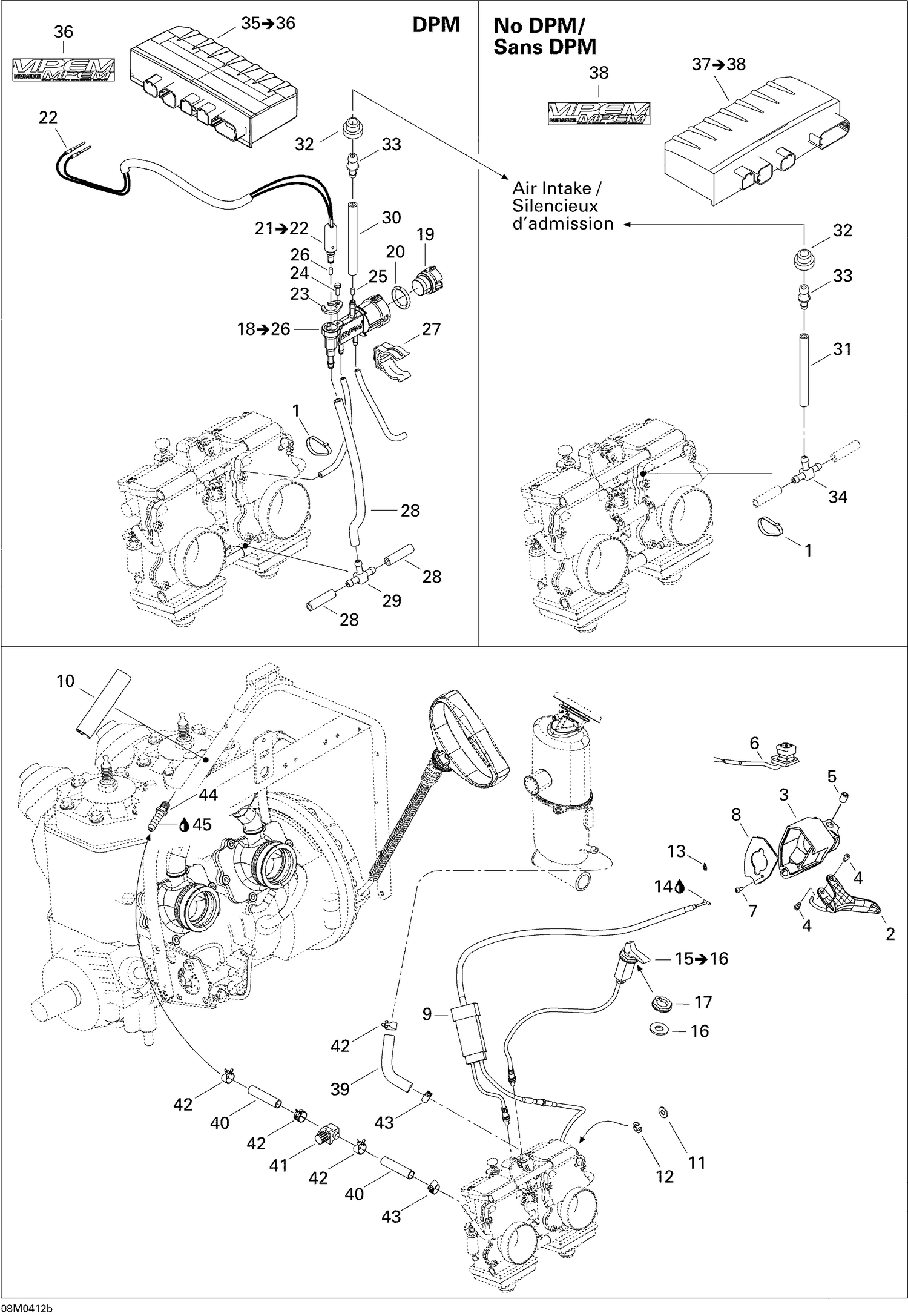

01- Engine 2
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293750001 | Tie Wrap 94 mm |
| 3 | 512060603 | Throttle Housing This part replaces 512059295. |
| 4 | 732601143 | Flange Screw |
| 5 | 414440800 | Socket Set Screw M8 X 10 |
| 7 | 414473200 | Screw |
| 8 | 512060390 | Plate This part replaces 512059507. |
| 10 | 512059750 | PROTECTOR - Call your local BRP dealership |
| 11 | 234081100 | Flat Washer 8 mm, Nylon |
| 12 | 414753500 | Circlip |
| 13 | 414274500 | Circlip |
| 14 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 16 | 394103300 | Lock Washer, Interior Teeth |
| 17 | 512059094 | PLASTIC NUT - Call your local BRP dealership |
| 19 | 270600009 | CAP - Call your local BRP dealership |
| 20 | 293300042 | O-RING - Call your local BRP dealership |
| 22 | 278000632 | Female Terminal |
| 23 | 415061600 | SOLENOID LOCK - Call your local BRP dealership |
| 24 | 241140060 | Screw K40 X 10 |
| 25 | Not | Available As Spare Part - Starter Jet |
| 26 | 404161825 | STARTER JET - Call your local BRP dealership |
| 32 | 512059931 | GROMMET - Call your local BRP dealership |
| 33 | 293710035 | Straight Fitting |
| 36 | 516000245 | Electrical Box Decal |
| 38 | 516000245 | Electrical Box Decal |
| 39 | 509000171 | FORMED HOSE - Call your local BRP dealership |
| 40 | 509000093 | Hose 8 mm |
| 41 | 512059324 | Valve 5/16” |
| 42 | 414655700 | Spring Clamp |
| 43 | 293650170 | Tridon Gear Clamp This part replaces 293650128. |
| 44 | 293710082 | STRAIGHT FITTING - Call your local BRP dealership |
