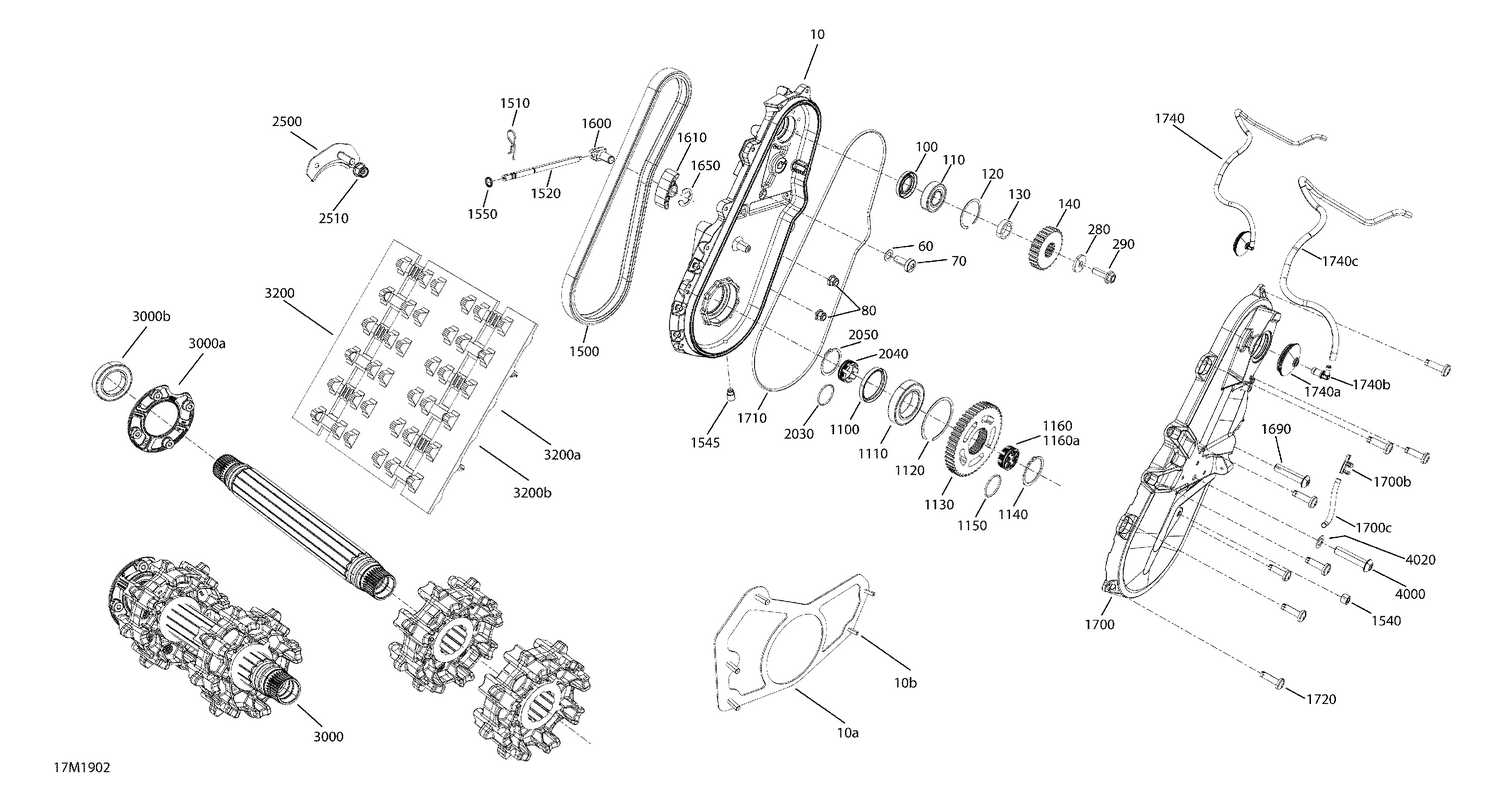

05- Drive - Enduro
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 504153718 | Chaincase Ass'y |
| 60 | 504082900 | Washer |
| 70 | 250000740 | Torx Screw M8 X 20, Scotch Grip |
| 80 | 233261434 | Flange Elastic Nut M6 |
| 100 | 293200168 | Oil Seal |
| 110 | 293350115 | Ball Bearing |
| 120 | 504152576 | Circlip |
| 130 | 504152628 | Shim |
| 140 | 504153911 | Sprocket 23 Teeth This part replaces 504091000. |
| 280 | 504152784 | Spring Washer M10 |
| 290 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 1100 | 293200159 | Oil Seal |
| 1110 | 293350059 | Ball Bearing |
| 1120 | 504152582 | Circlip |
| 1130 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 1140 | 504152572 | Circlip |
| 1150 | 293300201 | O-Ring |
| 1160a | 504153697 | Magnetic Cap |
| 1500 | 504152631 | Drive Chain, 108 Links |
| 1510 | 414575600 | Hair Pin |
| 1520 | 504153760 | Adjustment Screw |
| 1540 | 250500013 | Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1545 | 504153704 | Magnetic Plug |
| 1550 | 293300202 | O-Ring |
| 1600 | 504153559 | Tensioner |
| 1610 | 504153312 | Slider Chain |
| 1650 | 293370105 | Circlip |
| 1690 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 1700b | 515178223 | Clip Connector |
| 1700c | 415130141 | Braided Sleeve |
| 1710 | 293300214 | O Ring This part replaces 293300199. |
| 1720 | 250001012 | Torx T-30 Pan HD Taptite M6X20 |
| 1740a | 504152860 | Cap |
| 1740b | 414580700 | Male Connector |
| 1740c | 219704410 | Polyurethane Hose 10000Mm Long |
| 2030 | 293300201 | O-Ring |
| 2040 | 504153697 | Magnetic Cap |
| 2050 | 504152572 | Circlip |
| 2500 | 504153695 | Bearing Housing Ass'y |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3000a | 504153886 | Retaining Ring This part replaces 504153426. |
| 3000b | 293350059 | Ball Bearing |
| 3200a | 415129528 | Track Guide |
| 3200b | 504152651 | Cleat This part replaces 415129529. |
| 4000 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
