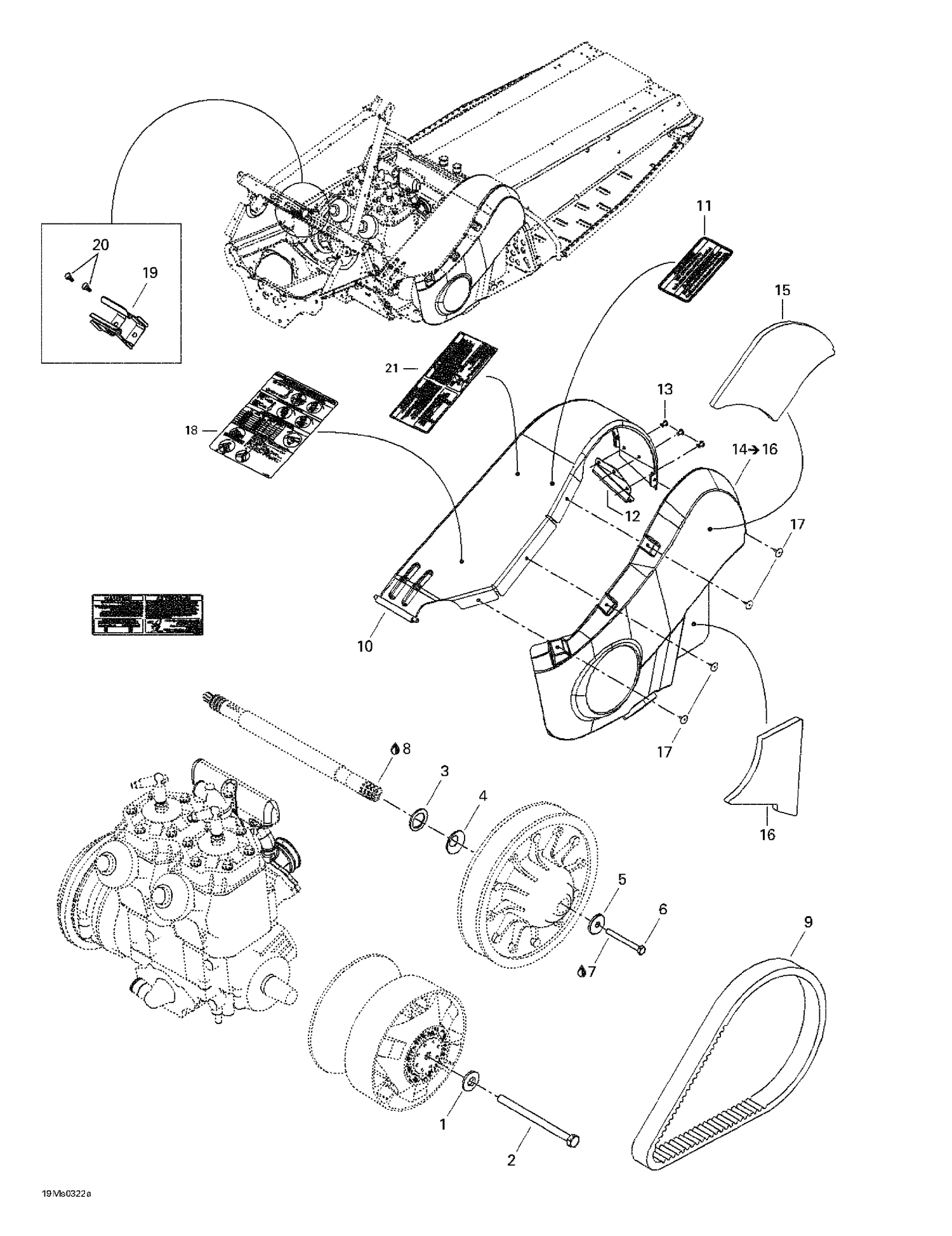

| Ref | Part Number | Description |
|---|
| 1 |
250200006 |
Spring Washer 14 mm |
| 2 |
417120000 |
Drive Pulley Bolt |
| 3 |
417300252 |
Spacer This part replaces 417300231. |
| 4 |
417300055 |
Protector |
| 5 |
517302322 |
Strength Washer |
| 6 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 7 |
293800060 |
Loctite 243, 10 ml |
| 8 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 9 |
417300551 |
Drive Belt This part replaces 417300166. |
| 10 |
417300213 |
BELT GUARD - Call your local BRP dealership |
| 11 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 12 |
417300216 |
BELT GUARD BRACKET - Call your local BRP dealership |
| 13 |
390402200 |
Pop Rivet 3/16" |
| 15 |
417300220 |
Foam |
| 16 |
417300221 |
Foam |
| 17 |
293150103 |
Pop Rivet 3/16" |
| 18 |
516001639 |
Decal, Suspension Adjustment |
| 19 |
517281905 |
Bracket |
| 20 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 417300265 |
Entretoise |
This part replaces 417300054. 417300265 |
| 417300265 |
Spacer |
This part replaces 417300054. 417300265 |
