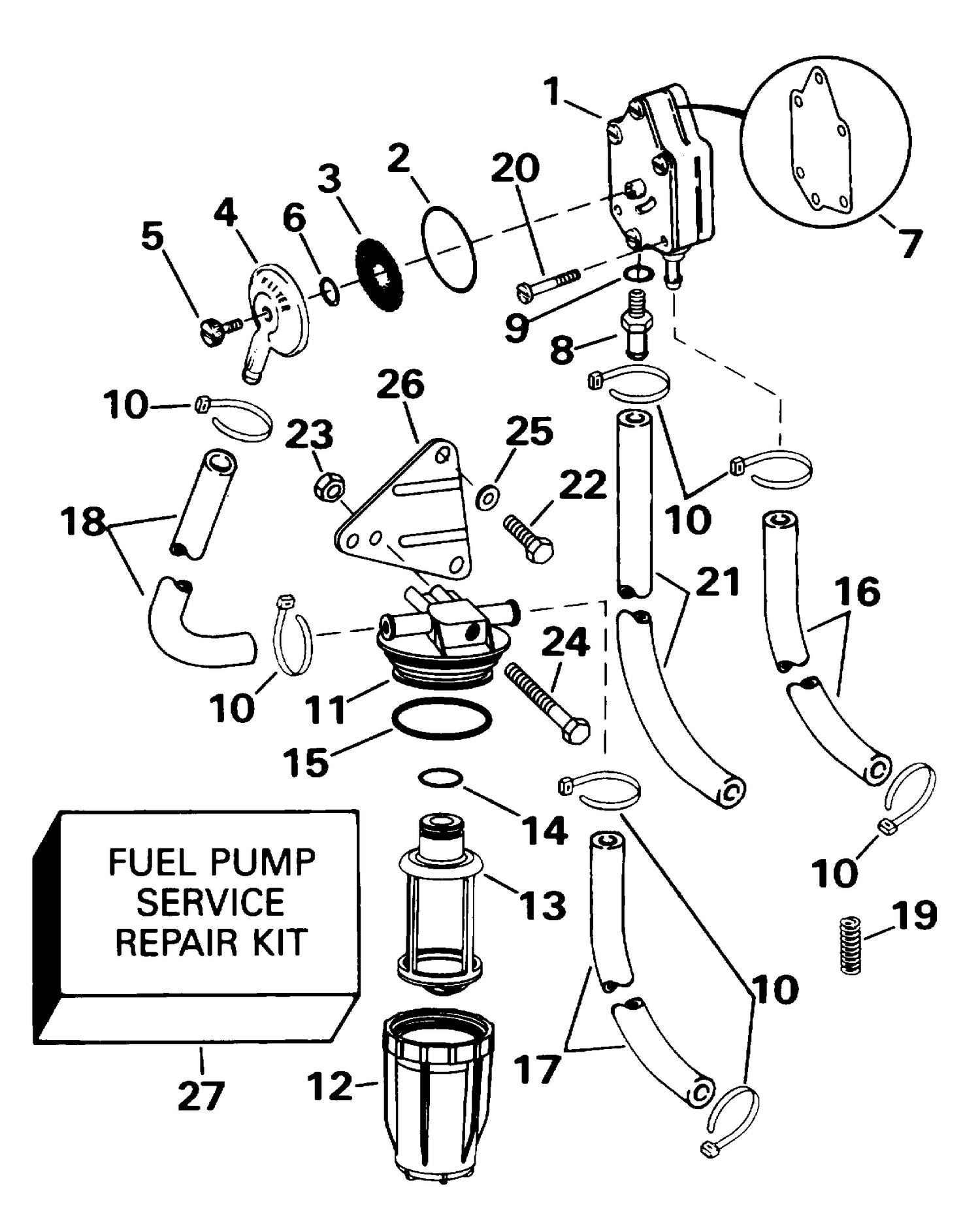

FUEL PUMP AND FILTER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438557 | FUEL PUMP Assy |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 | HOSE, | Pump to crankcase, 5 1/4 in. (133mm) |
| 17 | 0333395 | HOSE, Connector to filter |
| 18 | 0333395 | HOSE, Connector to filter |
| 19 | 0315942 | SPRING |
| 20 | 0328717 | NUT, Ground lead |
| 21 | HOSE, | Pump to manifold, 10 3/4 in. (273mm) |
| 22 | 0306503 | SCREW, Short |
| 26 | 0344250 | BRACKET, Filter to block |
| 0438017 | ENSEMBLE | FILTRE À CARBURANT 0438017 |
| 0438017 | FUEL | FILTER ASSY. 0438017 |
