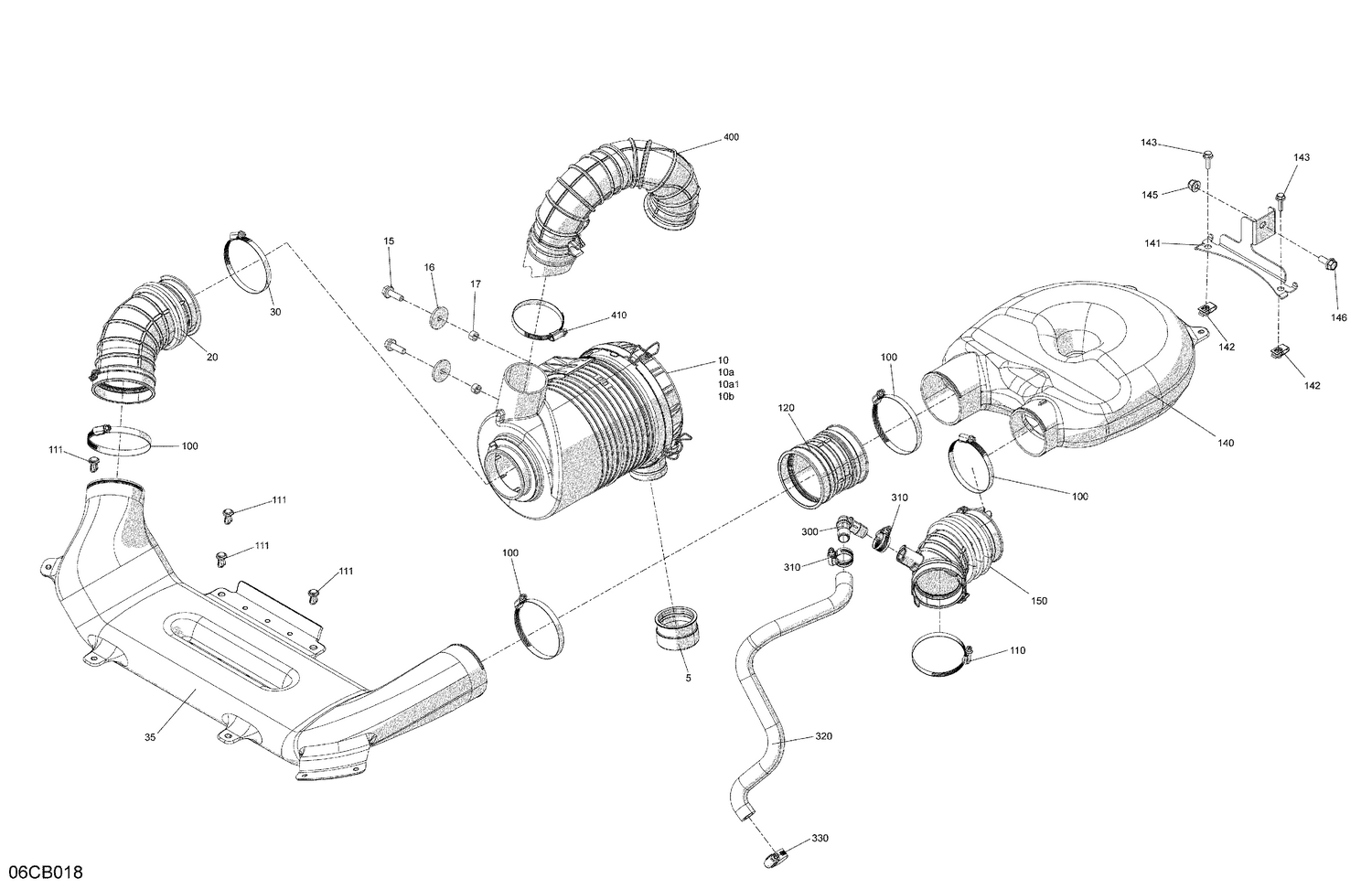

02- Engine - Air Intake - EVAP
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 715003114 | Duct Bill Valve |
| 10a | 715900515 | Silencer Air Cover Ass'y |
| 10a1 | 715900514 | O-Ring |
| 10b | 715900394 | Air Filter |
| 15 | 207682544 | Hex. Flange Screw M8 X 25 |
| 16 | 250200158 | Flat Washer M8 |
| 17 | 277000980 | Bushing |
| 20 | 707800879 | Front Intake Duct |
| 30 | 293650096 | Norma Clamp |
| 35 | 707800836 | Central Intake Duct |
| 100 | 293650096 | Norma Clamp |
| 110 | 293650091 | Norma Clamp |
| 111 | 293150230 | Tuflok Plastic Rivet |
| 120 | 707800880 | Rear Intake Duct |
| 140 | 707800877 | Air Inlet Box |
| 141 | 707800940 | Support |
| 142 | 250100198 | Panel Nut M6 X 1.0 |
| 143 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 145 | 233281414 | Hex. Flange Elastic Nut M8 |
| 146 | 207682044 | Hex. Flange Screw M8 X 20 |
| 150 | 707800837 | Rear Main Intake Duct |
| 300 | 293710155 | Elbow Fitting 90 |
| 310 | 293650173 | Tridon Gear Clamp |
| 320 | 707800890 | Crankcase Hose Formed |
| 330 | 293650173 | Tridon Gear Clamp |
| 400 | 707800752 | Air Inlet Tube |
