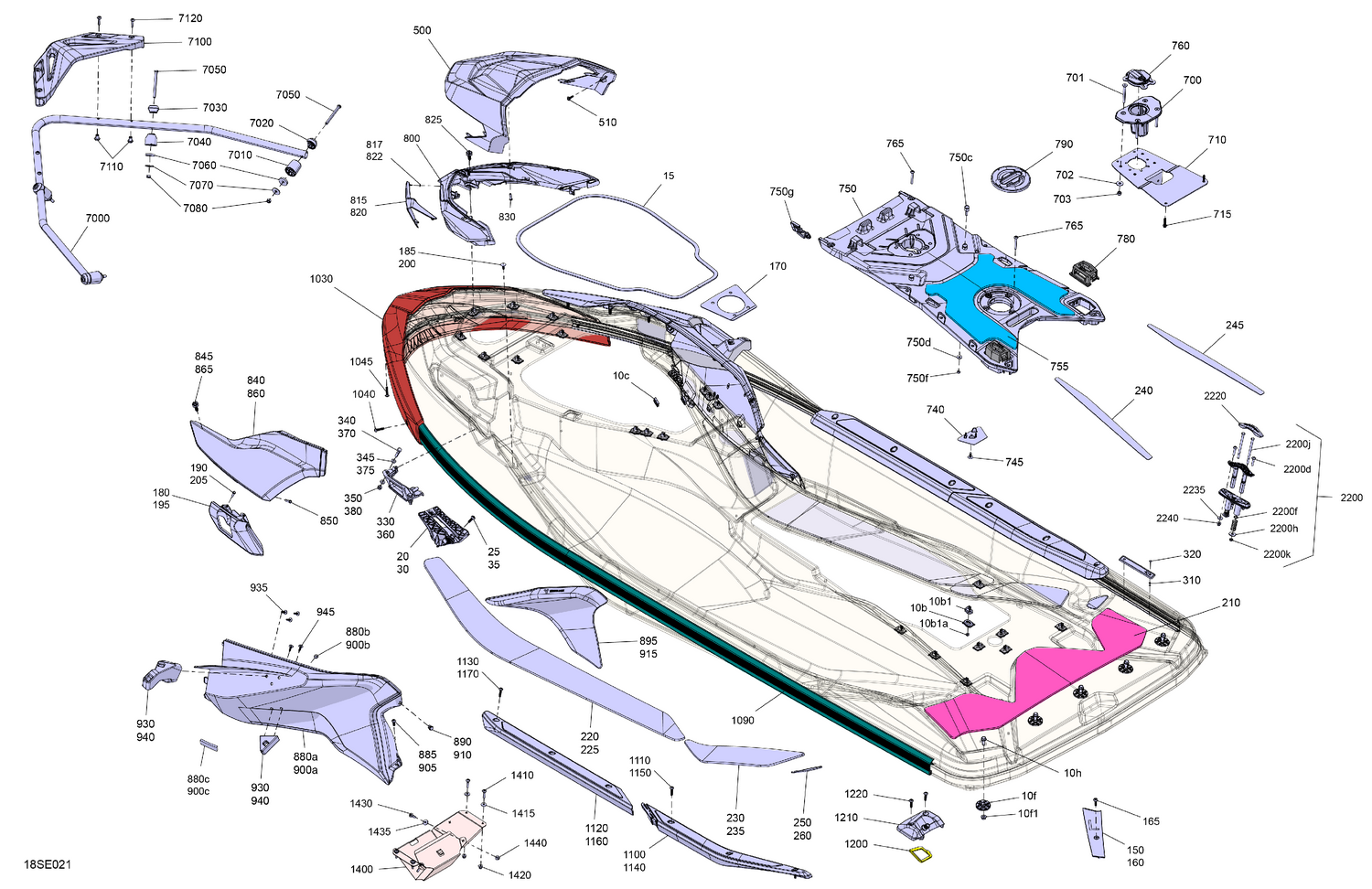

| Ref | Part Number | Description |
|---|
| 10b1a |
232561200 |
Brass Elastic Stop Nut M6 |
| 10c |
293750109 |
Anchorage Tie Wrap |
| 10f1 |
233181600 |
Hex. Flange Nut M8 |
| 10h |
207682544 |
Hex. Flange Screw M8 X 25 |
| 15 |
293250401 |
Gasket |
| 20 |
291004714 |
LH Support |
| 25 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 30 |
291004715 |
RH Support |
| 35 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 150 |
291005176 |
LH Shim |
| 160 |
291005177 |
RH Shim |
| 165 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 170 |
293250451 |
Gasket |
| 180 |
291004661 |
LH Shell Cleat |
| 185 |
293730011 |
Black, Dart |
| 190 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 195 |
291004719 |
RH Shell Cleat |
| 200 |
293730011 |
Black, Dart |
| 205 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 210 |
291006381 |
Olive Green, Anti Slip Mat |
| 220 |
291005351 |
LH Front Anti Slip Mat |
| 225 |
291005350 |
RH Front Anti Slip Mat |
| 230 |
291005353 |
LH Rear Anti Slip Mat |
| 235 |
291005352 |
RH Rear Anti Slip Mat |
| 240 |
291005916 |
LH Anti Slip Mat |
| 245 |
291005917 |
RH Anti Slip Mat |
| 250 |
291005883 |
LH Anti Slip Mat |
| 260 |
291005884 |
RH Anti Slip Mat |
| 310 |
293150016 |
Rivet 1/8" |
| 320 |
293000014 |
Black, Snap Cap |
| 330 |
291004559 |
LH Cleat |
| 340 |
207083560 |
Hex. Screw M8 X 35 |
| 345 |
234081600 |
Stainless, Flat Washer 8 mm |
| 350 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 360 |
291004720 |
RH Cleat |
| 370 |
207083560 |
Hex. Screw M8 X 35 |
| 375 |
234081600 |
Stainless, Flat Washer 8 mm |
| 380 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 500 |
291006359 |
Platinum Silver Satin, Hood |
| 510 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 700 |
291005708 |
Lower Seat Anchorage |
| 701 |
250001197 |
Socket Screw, M8 X 75 RIE |
| 702 |
234082600 |
Flat Washer 8 mm, Stainless |
| 703 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 710 |
291005641 |
Retaining Plate |
| 715 |
243163060 |
Hex. Flange Screw M6.81 X 30 |
| 740 |
291004941 |
Hose Protector |
| 745 |
293730011 |
Black, Dart |
| 750c |
291004611 |
STUD - Call your local BRP dealership This part replaces 291004611. |
| 750d |
234062600 |
Flat Washer M6, Stainless |
| 750f |
232561200 |
Brass Elastic Stop Nut M6 |
| 750g |
291004717 |
Seal |
| 755 |
291005861 |
Deep Black, Rear Mat |
| 760 |
291005698 |
Panel Cap |
| 765 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 780 |
295100858 |
Linq Bases Kit |
| 790 |
291004481 |
Access Cap Ass'y |
| 800 |
291005915 |
Front Hood Grille |
| 815 |
291006370 |
Loft Green Satin, LH Trim |
| 817 |
250100206 |
Push Nut |
| 820 |
291006371 |
Loft Green Satin, RH Trim |
| 822 |
250100206 |
Push Nut |
| 825 |
293730071 |
Dard |
| 830 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 840 |
291006357 |
Platinum Silver Satin, LH Front Body Panel |
| 845 |
293730071 |
Dard |
| 850 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 860 |
291006358 |
Platinum Silver Satin, RH Front Body Panel |
| 865 |
293730071 |
Dard |
| 880a |
291006356 |
Platinum Silver Satin, LH Central Body Panel |
| 880b |
293830005 |
Rubber Bumper |
| 880c |
278003860 |
Stopper |
| 885 |
250001206 |
Screw-Plastite Torx Hd.M6.81X20 |
| 890 |
293150230 |
Tuflok Plastic Rivet |
| 895 |
291004773 |
Swift Silver, LH Knee Pad |
| 900a |
291006353 |
Platinum Silver Satin, RH Central Body Panel |
| 900b |
293830005 |
Rubber Bumper |
| 900c |
278003860 |
Stopper |
| 905 |
250001206 |
Screw-Plastite Torx Hd.M6.81X20 |
| 910 |
293150230 |
Tuflok Plastic Rivet |
| 915 |
291004800 |
Swift Silver, RH Knee Pads |
| 930 |
295100948 |
LH Rod Holder Top Adapter |
| 935 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 940 |
295100949 |
RH Rod Holder Top Adapter |
| 945 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 1030 |
291004452 |
Front Bumper |
| 1040 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 1045 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 1090 |
291004468 |
Bumper 2775±25mm |
| 1100 |
291006372 |
Olive Night, LH Rear Footrest Ass'y |
| 1110 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 1120 |
291006374 |
Olive Night, LH Front Footrest Ass'y |
| 1130 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 1140 |
291006376 |
Olive Night, RH Rear Footrest Ass'y |
| 1150 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 1160 |
291006378 |
Olive Night, RH Front Footrest Ass'y |
| 1170 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 1200 |
291005694 |
Gasket |
| 1210 |
291006092 |
Trim Support |
| 1220 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 1400 |
278004444 |
Battery Support |
| 1410 |
250000924 |
Truss Cone Torx Screw M6 X 30 |
| 1415 |
234062600 |
Flat Washer M6, Stainless |
| 1420 |
233261200 |
Nut Flange Elastic M6 |
| 1430 |
250000924 |
Truss Cone Torx Screw M6 X 30 |
| 1435 |
234062600 |
Flat Washer M6, Stainless |
| 1440 |
233261200 |
Nut Flange Elastic M6 |
| 2200d |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 2200f |
293300013 |
O-Ring |
| 2200h |
234082600 |
Flat Washer 8 mm, Stainless |
| 2200j |
230060060 |
Hex. Screw M6 X 100 |
| 2200k |
232561600 |
Hex. Elastic Stop Nut M6 |
| 2220 |
291006234 |
Support Trim |
| 2235 |
234062600 |
Flat Washer M6, Stainless |
| 2240 |
233261200 |
Nut Flange Elastic M6 |
| 7000 |
269801625 |
Olive Green, Front Tube |
| 7010 |
269801147 |
Deep Black, Rear Lower Anchorage Tube |
| 7020 |
269801146 |
Deep Black, Upper Rear Anchorage Tube |
| 7030 |
269801145 |
Deep Black, Upper Front Anchorage Tube |
| 7040 |
269801144 |
Deep Black, Front Lower Anchorage Tube |
| 7050 |
250001227 |
Socket Head Screw M8 X 90 |
| 7060 |
293830037 |
Rubber Washer |
| 7070 |
250200175 |
Flat Washer 8 mm, Stainless |
| 7080 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 7100 |
269801193 |
Support Tube |
| 7110 |
511001251 |
Brass Insert |
