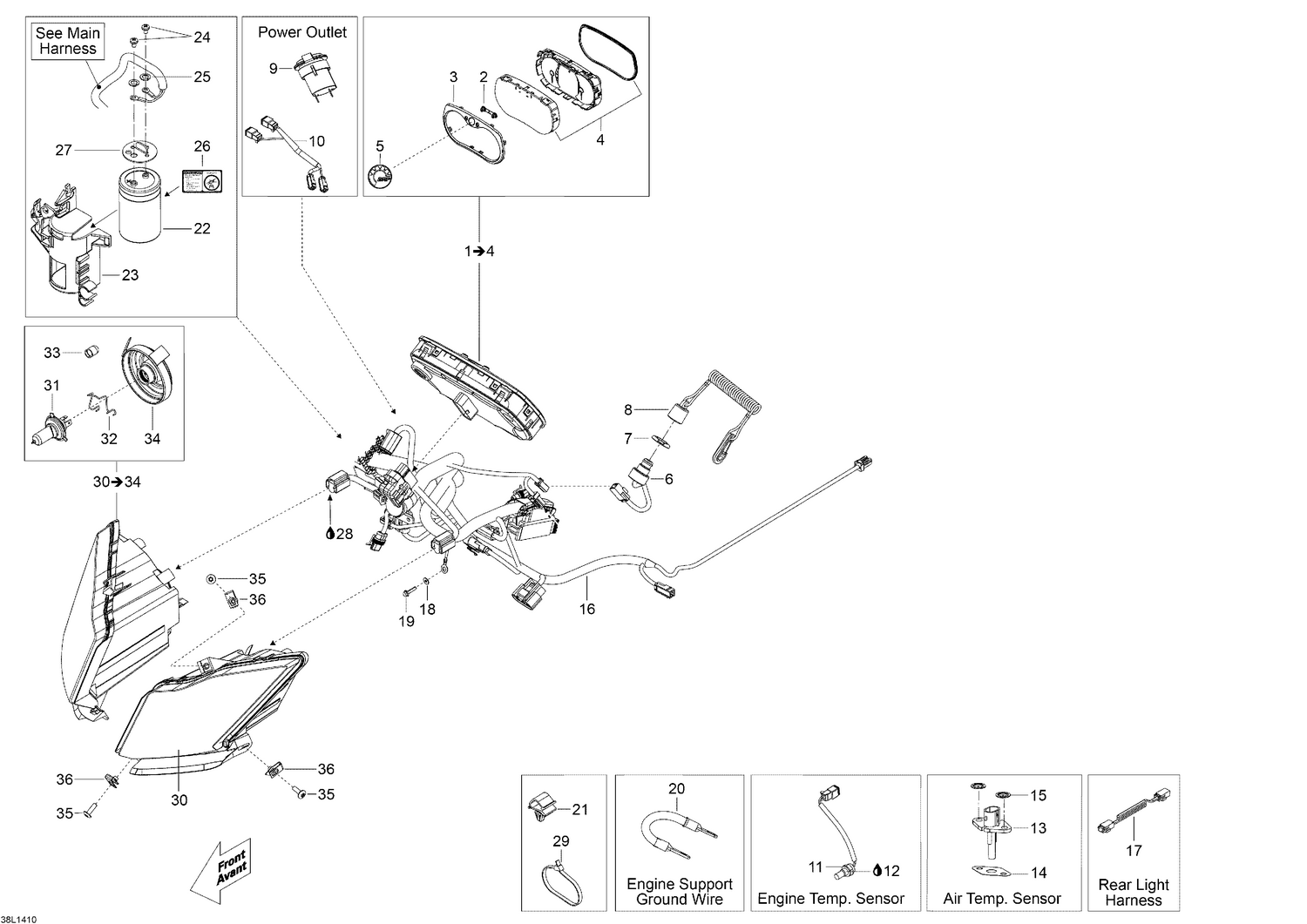

10- Electrical System
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129348 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo, 20MM x 2MM This part replaces 219902677. |
| 6 | 515177249 | Dess Switch |
| 7 | 278002963 | Safety Nut (DESS Switch) |
| 8 | 515178284 | Dess. This part replaces 515177057. |
| 9 | 710001248 | Power Outlet |
| 10 | 515177188 | Harness |
| 11 | 420664509 | Temperature Senor This part replaces 515177471. |
| 12 | Not | Available As Spare Part - Loctite 592, Pipe Sealant, 50 ml |
| 13 | 515176366 | Air Temperature Sensor |
| 14 | 508000769 | Ring |
| 15 | 389804300 | Push Nut |
| 16 | 515177611 | Main Harness |
| 17 | 515177032 | Rear Light Harness |
| 18 | 234141601 | Lock Washer 4 mm |
| 19 | 250000127 | Torx Truss Screw M4 x 8 |
| 20 | 515177289 | Ground Wire |
| 21 | 515177066 | Clip |
| 22 | 515177272 | Capacitor |
| 23 | 515176607 | Capacitor Support |
| 24 | 250000462 | Socket Head Screw M10 x 32 |
| 25 | 250200026 | Lock Washer |
| 26 | 516005515 | CAPACITOR DECAL (ENGLISH) - Call your local BRP dealership |
| 27 | 515177193 | Cap |
| 28 | 619600021 | Loctite 8104 (Dielectric Grease), 75ml |
| 29 | 293750001 | Tie-Rap 94 mm |
| 29 | 293750008 | Tie-Rap 368 mm |
| 29 | 414115200 | Tie-Rap 180 mm |
| 29 | 605627000 | Tie Rap |
| 31 | 515176274 | Halogen Bulb, 60/55 W, 12 V |
| 32 | Not | Available As Spare Part - Bulb Holder |
| 33 | 515176141 | Cap |
| 34 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 35 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
