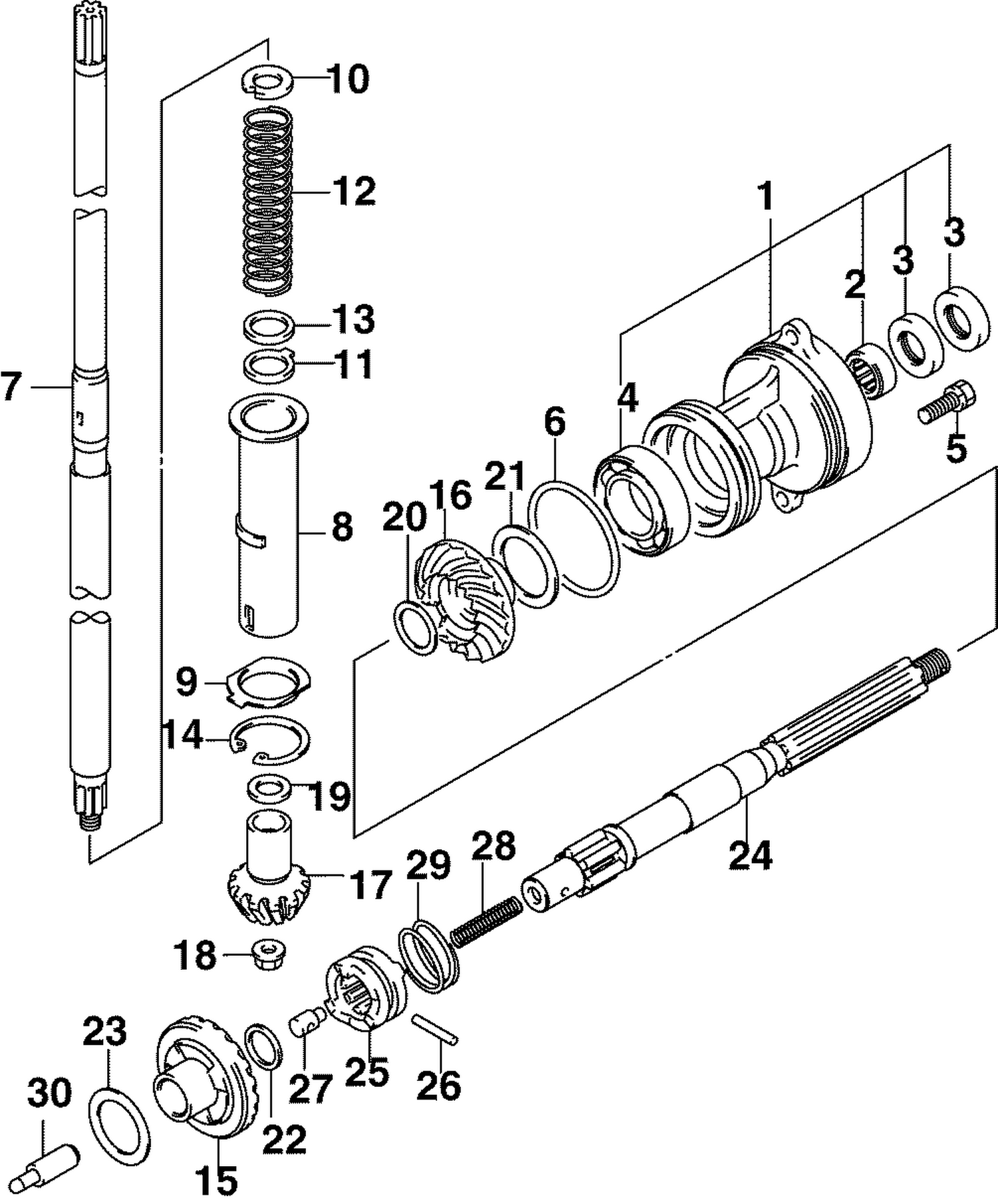

| Ref | Part Number | Description |
|---|
| 1 |
5034711 |
HOUSING, PROP SFT BEARING |
| 6 |
5031890 |
O RING (D:3.5 ID:68.6) |
| 7 |
5032094 |
DRIVESHAFT ASSY. |
| 8 |
5032096 |
COLLAR, PRE LOAD SPRING |
| 9 |
5032097 |
PARTITION, Oil chamber |
| 10 |
5031860 |
WASHER |
| 11 |
5031861 |
WASHER |
| 12 |
5031909 |
SPRING |
| 13 |
5032296 |
WASHER |
| 14 |
5032297 |
CIRCLIP |
| 15 |
5032698 |
GEAR, Forward |
| 16 |
5032100 |
GEAR, Reverse |
| 17 |
5032098 |
PINION |
| 18 |
5031827 |
NUT |
| 19 |
5031835 |
SHIM (15X20X1.7) |
| 19 |
5031836 |
SHIM (15X20X1.8) |
| 19 |
5031837 |
SHIM (15X20X1.9) |
| 19 |
5031838 |
SHIM (15X20X2.1) |
| 19 |
5032298 |
SHIM (15X20X2.0) |
| 19 |
5032299 |
SHIM (15X20X2.2) |
| 20 |
5031840 |
SHIM (20X25.6X1.6) |
| 20 |
5031841 |
SHIM (20X25.6X1.8) |
| 20 |
5031842 |
SHIM (20X25.6X2.0) |
| 20 |
5031843 |
SHIM (20X25.6X2.2) |
| 20 |
5031844 |
SHIM (20X25.6X2.4) |
| 20 |
5031845 |
SHIM (20X25.6X2.6) |
| 21 |
5031873 |
SHIM (30X40X0.5) |
| 21 |
5031874 |
SHIM (30X40X0.8) |
| 21 |
5031875 |
SHIM (30X40X1.0) |
| 21 |
5032300 |
SHIM (30X40X0.2) |
| 22 |
5032701 |
SHIM, 2.0mm |
| 23 |
5031847 |
SHIM (25X40X1.1) |
| 23 |
5031848 |
SHIM (25X40X1.2) |
| 23 |
5031849 |
SHIM (25X40X1.3) |
| 23 |
5031850 |
SHIM (25X40X1.4) |
| 23 |
5031869 |
SHIM (25X36X0.8) |
| 23 |
5031870 |
SHIM (25X40X0.9) |
| 23 |
5031871 |
SHIM (25X40X1.0) |
| 23 |
5031872 |
SHIM (25X40X1.5) |
| 24 |
5032101 |
PROPELLER SHAFT ASSY. This part replaces 5032680. |
| 25 |
5037515 |
SHIFTER, CLUTCH DOG This part replaces 5032102. |
| 26 |
5031876 |
PIN, Clutch dog |
| 27 |
5031880 |
PIN, PUSH |
| 28 |
5032457 |
SPRING, Push rod |
| 29 |
5031910 |
SPRING |
