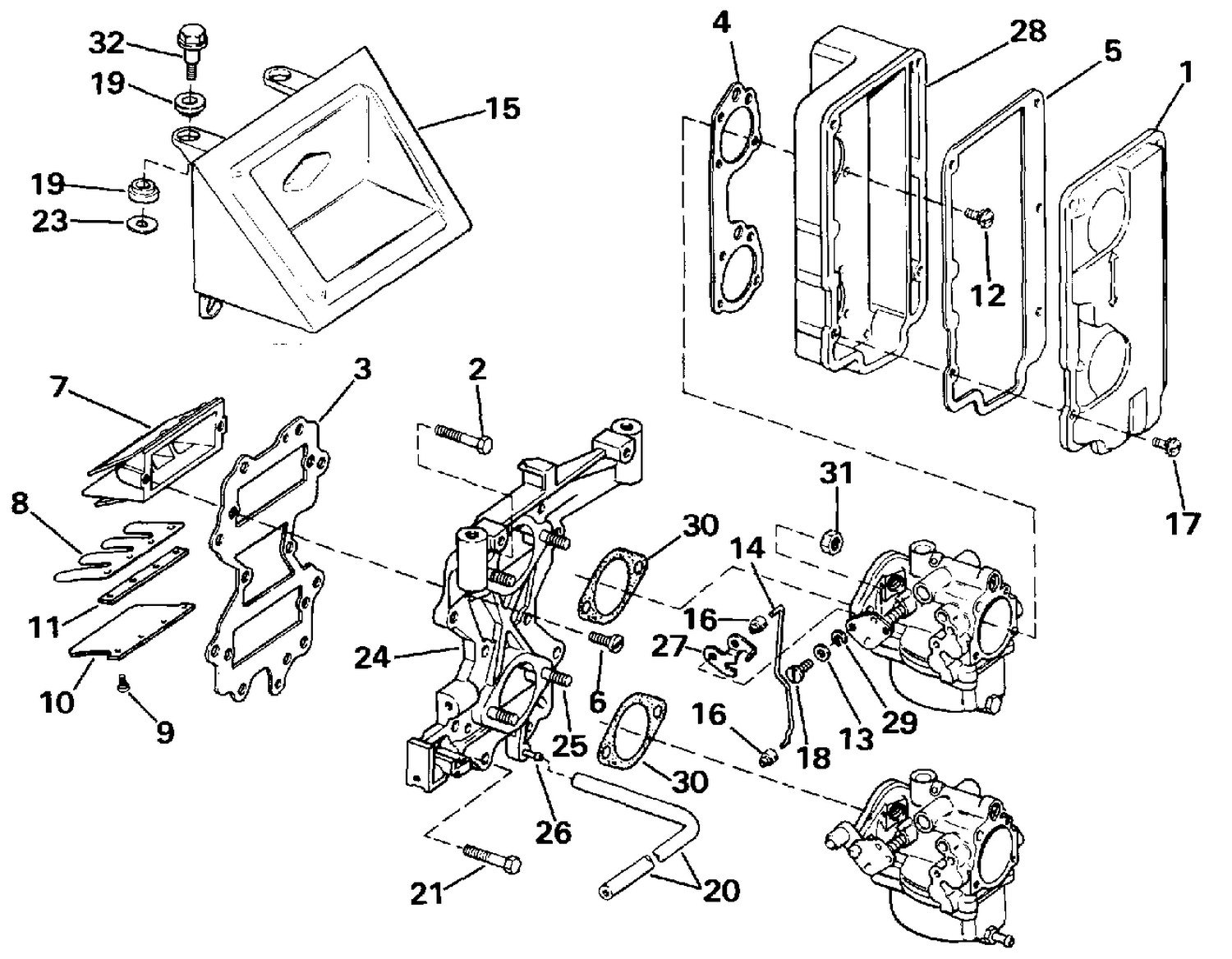

| Ref | Part Number | Description |
|---|
| 1 |
0329396 |
COVER |
| 2 |
0306409 |
VIS, collecteur vers carter-moteur |
| 3 |
0335633 |
GASKET This part replaces 0317504. |
| 4 |
0330910 |
GASKET |
| 5 |
0330698 |
GASKET |
| 6 |
0306474 |
SCREW |
| 7 |
0389823 |
CLAPET |
| 12 |
3852459 |
SCREW, Switch This part replaces 0908769. |
| 14 |
0329888 |
LINK |
| 15 |
0436662 |
BRACKET, Starter handle This part replaces 0326135. |
| 16 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 19 |
0326136 |
GROMMET |
| 20 |
HOSE, |
Air silencer to manifold 121mm (4-3/4") |
| 21 |
0306418 |
VIS, ancrage |
| 24 |
0395736 |
MANIFOLD ASSY, Rope & TE. |
| 27 |
0329418 |
LEVER, Synchronization adj. |
| 28 |
0431994 |
BASE, Air silencer This part replaces 0395361. |
| 30 |
0325092 |
GASKET |
| 31 |
0316355 |
BUT, Carburetor mounting |
