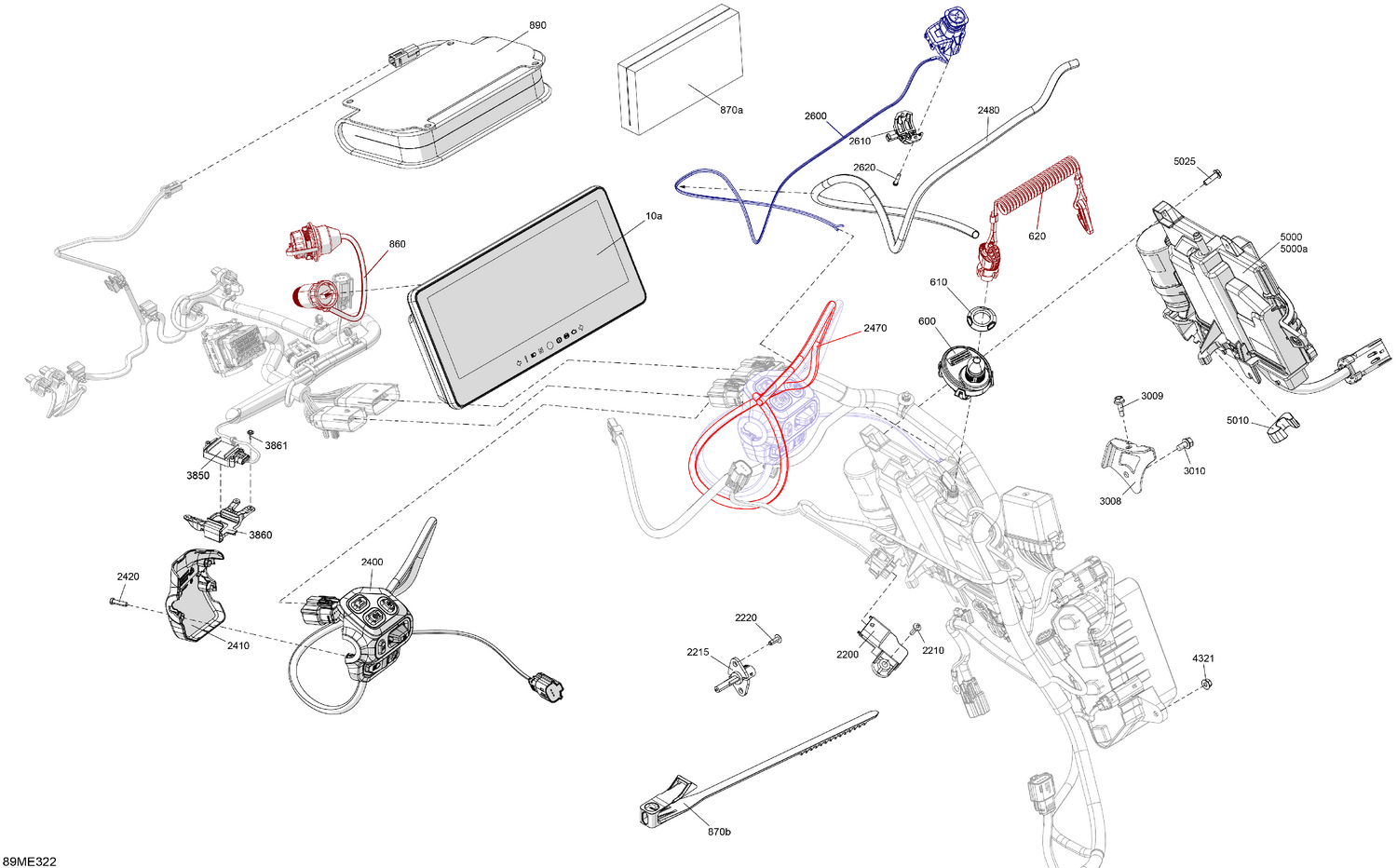

08- Electric - Upper Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 710009417 | Multifunction Gauge 10 This part replaces 710010341. |
| 600 | 710008832 | Terminal DESS CAN |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 860 | 515179248 | USB Wiring Harness Ass'y |
| 870a | 264000135 | Sealed Compartment Foam |
| 870b | 515179675 | Mounting Clamp P |
| 890 | 860202888 | Protective Bag This part replaces 515179904. |
| 2200 | 515178563 | Pressure Sensor And Air Temperature |
| 2210 | 250000759 | Torx Truss Pt K40 X 16 |
| 2215 | 515176366 | Air Temperature Sensor |
| 2220 | 250001131 | Torx Truss PT K40 x 12 |
| 2400 | 515179679 | LH Front Multifunction Switch |
| 2410 | 415130659 | Rear Housing |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3008 | 515179281 | Fuse Box Support |
| 3009 | 250000911 | Hex. Flange Screw M5 X 16 |
| 3010 | 210261250 | Hex. Flange Screw M6 X 12 |
| 3850 | 278004506 | GPS |
| 3860 | 515179316 | Module Support |
| 3861 | 250000725 | Screw M4 X 16 |
| 4321 | 233151414 | Hex. Flange Nut M5 |
| 5000 | 515179355 | ECM Module |
| 5000a | 515177272 | Capacitor |
| 5010 | 515178430 | Rubber Stopper |
