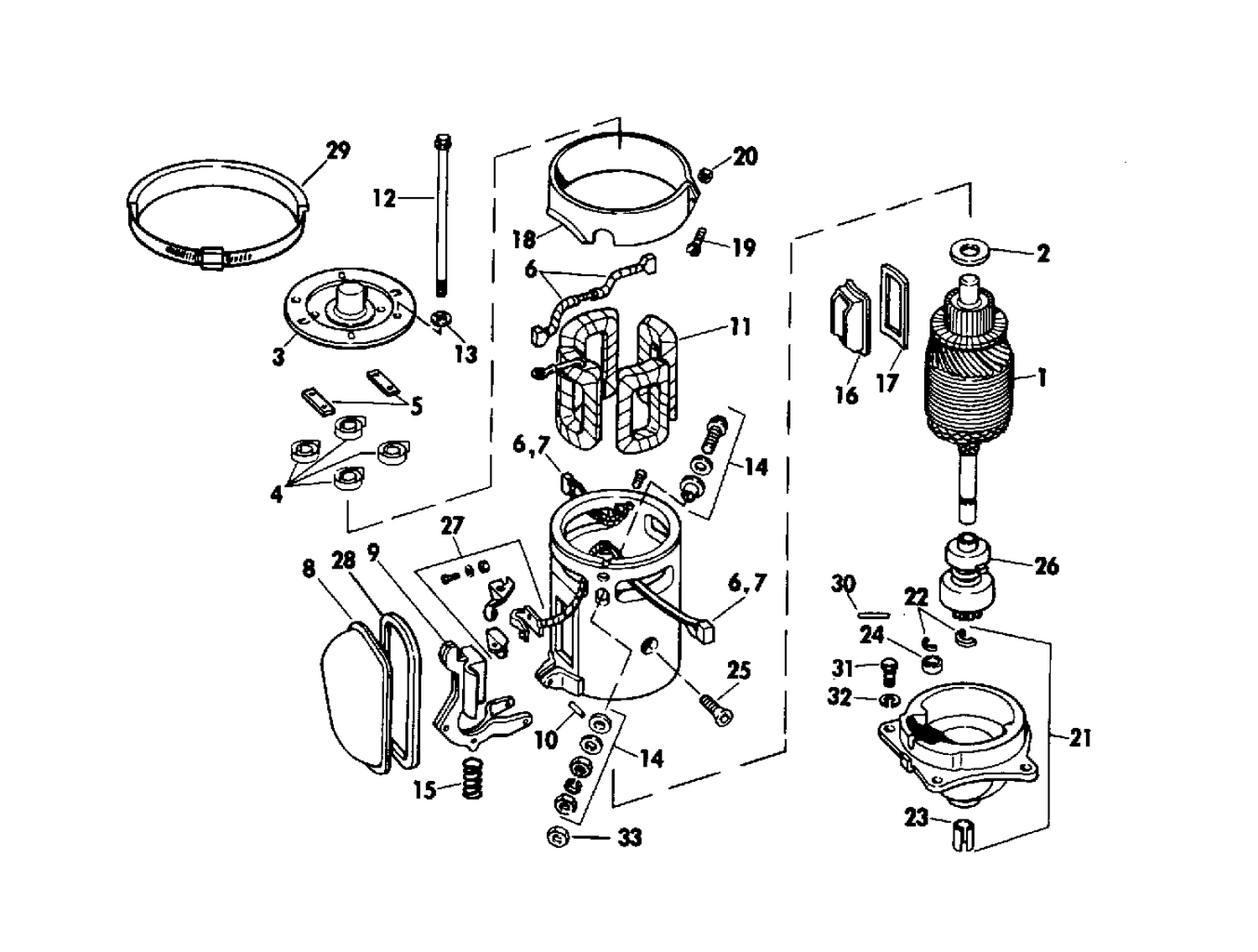

STARTER MOTOR GROUP 240 HP MODELS
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | D0AZ-11005-A | ARMATURE |
| 2 | C0DZ-11036-A | ASHER, Arm, thrust, abs |
| 2 | C6VY-11036-A | WASHER, Arm thrust, steel |
| 3 | C45Z-11049-A | PLATE & BUSHING |
| 4 | D1AZ-11059-A | SPRING, Brush |
| 5 | C9AZ-11062-A | INSULATOR, Brush holder |
| 6 | C0DZ-11057-B | BRUSH SET |
| 7 | 18-11056 | BRUSH, Non-insulated |
| 8 | D5FF-11058-AA | COVER, Plunger |
| 9 | C0DF-11067-B | LEVER, Drive |
| 10 | 73266-S | LEVER PIN |
| 11 | C6VY-11082-A | COIL FIELD, Complete |
| 12 | C3AZ-10120-A | THRU BOLT |
| 13 | 34905-S7 | LOCKWASHER, Thru bolt |
| 14 | C0DZ-11102-C | TERMINAL FIELD KIT |
| 15 | C1VF-11103-A | SPRING, Plunger return |
| 16 | C0DF-11105-A | SLEEVE, Coil retaining |
| 17 | C0DF-11106-A | FLANGE, Coil retaining |
| 18 | C20Z-11126-A | BAND, Cover |
| 19 | 27185-S2 | SCREW, Band cover |
| 20 | 34079-S7 | NUT, Band cover |
| 21 | D5FF-11130-AB | HOUSING KIT, Drive end |
| 22 | C2DZ-11223-A | RETAINER |
| 23 | D0AZ-11135-B | BEARING,Drive housing |
| 24 | C20A-11222-A | RING |
| 25 | 68-10044 | SCREW, Pole piece |
| 26 | C6VY-11350-A | DRIVE ASSEMBLY |
| 27 | C2OZ-11134-B | CONTACT POINT KIT |
| 28 | C0DF-11065-A | GASKET, Plunger cover |
| 29 | 383988-S | BAND, Plunger cover |
| 30 | 0203897 | ROLL PIN STARTER MOTOR |
| 31 | 0310896 | SCREW |
| 32 | 0120125 | WASHER,Screw starter |
