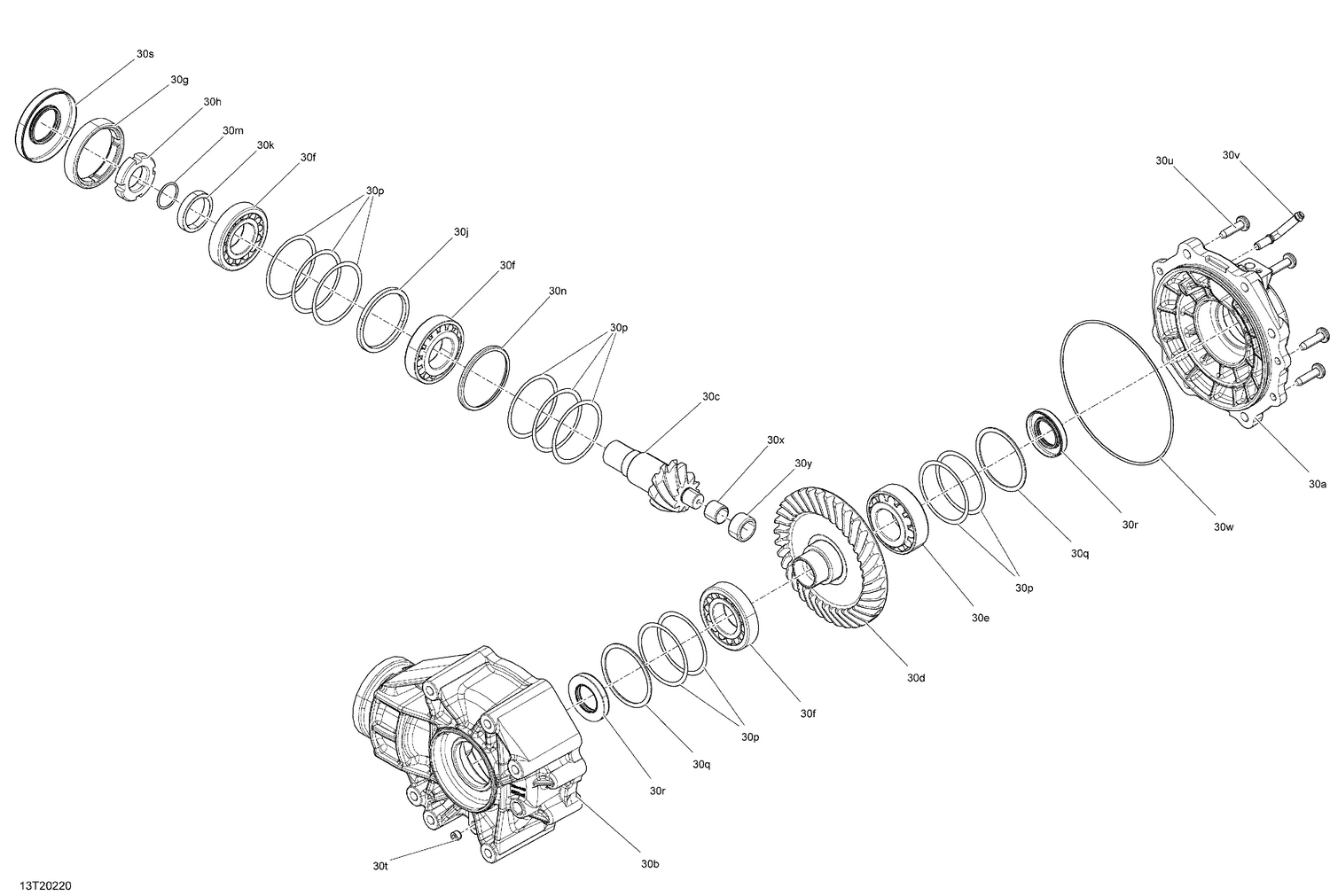

08- Rear Drive - Differential Parts
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705502547 | Rear Cover |
| 30b | 705502180 | Rear Pinion Cover |
| 30c | 705502091 | Gear 10 Tooth |
| 30d | 705502092 | Pinion 36 Teeth |
| 30e | 705502173 | Roller Bearing |
| 30f | 705502174 | Roller Bearing |
| 30g | 705501549 | Nut |
| 30h | 705501550 | Nut |
| 30j | 705501552 | Differential Shim |
| 30k | 705501553 | Differential Shim |
| 30m | 705501554 | O-Ring |
| 30n | 705501586 | Differential Shim |
| 30p | 705501725 | Differential Shim |
| 30q | 705501555 | Differential Shim |
| 30r | 705501556 | Oil Seal |
| 30s | 705501557 | Oil Seal |
| 30t | 705501724 | Plug Drain |
| 30u | 705502063 | Screw |
| 30v | 705501584 | Breather Tube |
| 30w | 705501711 | O-Ring |
| 30x | 705502181 | Inner Ring |
