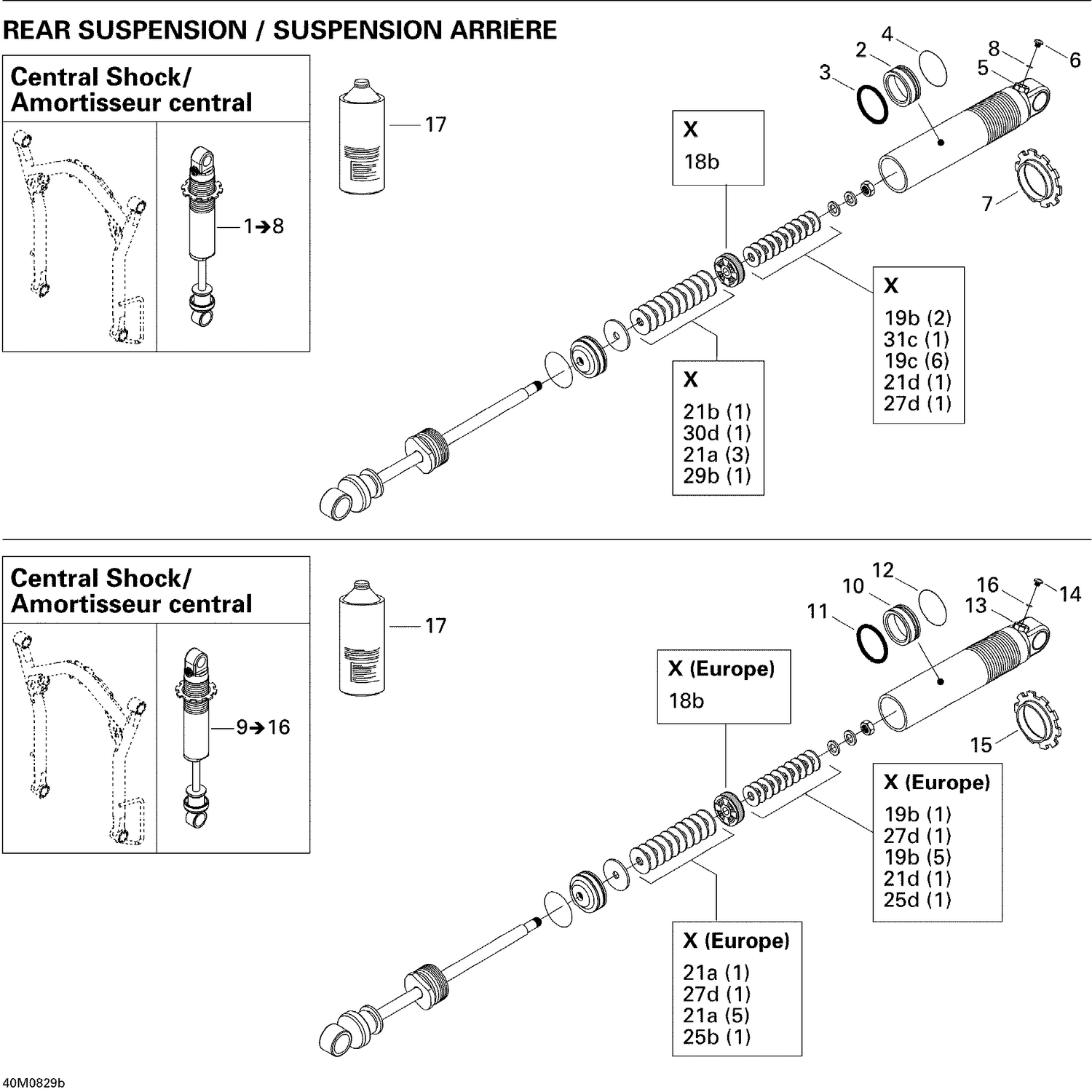

| Ref | Part Number | Description |
|---|
| 2 |
503189309 |
FREE PISTON - Call your local BRP dealership |
| 3 |
414888312 |
O-Ring |
| 4 |
503189308 |
Piston Ring |
| 5 |
505070398 |
Air Valve |
| 6 |
505070399 |
Screw |
| 7 |
414888316 |
SPRING COLLAR - Call your local BRP dealership |
| 8 |
505070400 |
O-Ring |
| 17 |
293600035 |
Shock Oil, 1 Liter |
| 18a |
414888304 |
Piston (C36) |
| 18b |
Not |
Available As Spare Part - Piston (2 X 0.3-1) (C36) |
| 18c |
414888305 |
Piston (2 X 0.3-2) (C36) |
| 18d |
Not |
Available As Spare Part - Piston (2 x 0.3-3) (C36) |
| 18e |
414888306 |
Piston (2 X 0.3-4) (C36) |
| 18f |
Not |
Available As Spare Part - Piston (2 x 0.3-5) (C36) |
| 18g |
414888307 |
Piston (2 X 0.3-6) (C36) |
| 19a |
415039100 |
Leaf Valve Ø30 X 0.254 (C36) |
| 19b |
414888318 |
Leaf Valve Ø30 X 0.203 (C36) |
| 19c |
414888319 |
Leaf Valve Ø30 X 0.152 (C36) |
| 19d |
Not |
Available As Spare Part - Leaf Valve Ø30 x 0.114 (C36) |
| 20a |
Not |
Available As Spare Part - Leaf Valve Ø28 x 0.254 (C36) |
| 20b |
414888320 |
Leaf Valve Ø28 X 0.203 (C36) |
| 20c |
414888321 |
Leaf Valve Ø28 X 0.152 (C36) |
| 20d |
Not |
Available As Spare Part - Leaf Valve Ø28 x 0.114 (C36) |
| 21a |
415039000 |
Leaf Valve Ø26 X 0.254 (C36) |
| 21b |
414888322 |
Leaf Valve Ø26 X 0.203 (C36) |
| 21c |
414888323 |
Leaf Valve Ø26 X 0.152 (C36) |
| 21d |
Not |
Available As Spare Part - Leaf Valve Ø26 x 0.114 (C36) |
| 22a |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.254 (C36) |
| 22b |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.203 (C36) |
| 22c |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.152 (C36) |
| 22d |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.114 (C36) |
| 23a |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0.254 (C36) |
| 23b |
414888324 |
Leaf Valve Ø22 X 0.203 (C36) |
| 23c |
414888325 |
Leaf Valve Ø22 X 0.152 (C36) |
| 23d |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0.114 (C36) |
| 24a |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.254 (C36) |
| 24b |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.203 (C36) |
| 24c |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.152 (C36) |
| 24d |
414888340 |
Leaf Valve Ø21 X 0.114 (C36) |
| 25a |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.254 (C36) |
| 25b |
414888326 |
Leaf Valve Ø20 X 0.203 (C36) |
| 25c |
414888327 |
Leaf Valve Ø20 X 0.152 (C36) |
| 25d |
414888328 |
Leaf Valve Ø20 X 0.114 (C36) |
| 26a |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.254 (C36) |
| 26b |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.203 (C36) |
| 26c |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.152 (C36) |
| 26d |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.114 (C36) |
| 27a |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.254 (C36) |
| 27b |
414888329 |
Leaf Valve Ø18 X 0.203 (C36) |
| 27c |
414888330 |
Leaf Valve Ø18 X 0.152 (C36) |
| 27d |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.114 (C36) |
| 28a |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.254 (C36) |
| 28b |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.203 (C36) |
| 28c |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.152 (C36) |
| 28d |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.114 (C36) |
| 29a |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 29b |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 29c |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 29d |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 30a |
414888334 |
Leaf Valve Ø15 X 0.254 (C36) |
| 30b |
414888335 |
Leaf Valve Ø15 X 0.203 (C36) |
| 30c |
414888336 |
Leaf Valve Ø15 X 0.152 (C36) |
| 30d |
414888337 |
Leaf Valve Ø15 X 0.114 (C36) |
| 31a |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.254 (C36) |
| 31b |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.203 (C36) |
| 31c |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.152 (C36) |
| 31d |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.114 (C36) |
| 32a |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.254 (C36) |
| 32b |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.203 (C36) |
| 32c |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.152 (C36) |
| 32d |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.114 (C36) |
| 33a |
503189538 |
Leaf Valve Ø12 X 0.254 (C36) |
| 33b |
414888338 |
Leaf Valve Ø12 X 0.203 (C36) |
| 33c |
414888339 |
Leaf Valve Ø12 X 0.152 (C36) |
