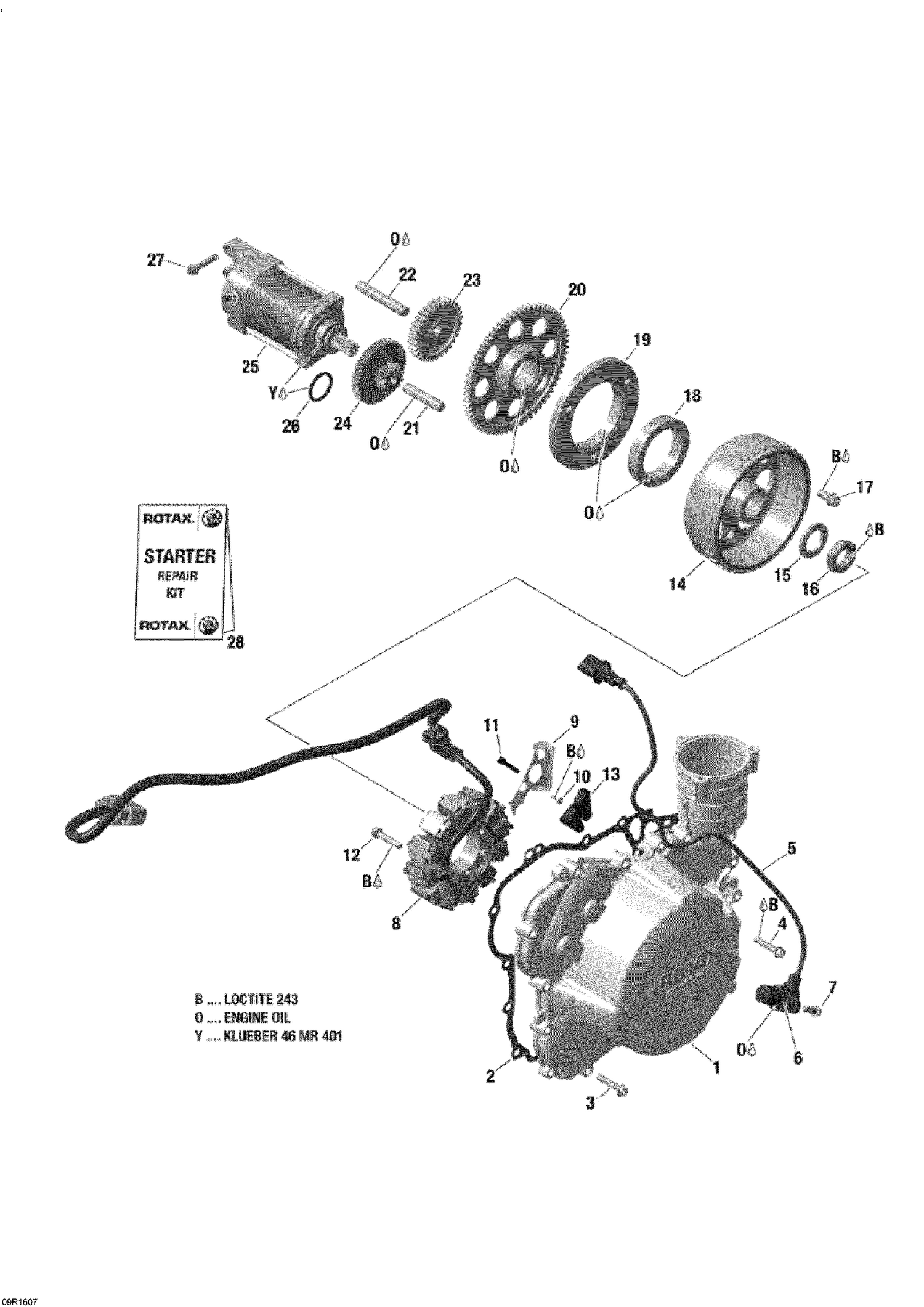

03- Magneto And Electric Starter - 1200 4-TEC
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| B | Not | Available As Spare Part - Loctite 243 |
| O | Not | Available As Spare Part - Engine Oil |
| 1 | 420611833 | Ignition Cover |
| 6 | 420431580 | O-Ring 17,17X1,78 FPM 70 |
| 9 | 420951192 | Cable Holder |
| 11 | 420651397 | Tie Rap |
| 13 | 420860052 | Rubber Spacer |
| 14 | 420892361 | Magneto Flywheel |
| 15 | 420945759 | Lock Washer |
| 18 | 420659113 | Sprag Clutch 51,710x68,377x13 |
| 19 | 420659266 | Housing Sprag Clutch |
| 20 | 420434235 | Free Wheel Gear (64 T) |
| 21 | 420229302 | Location Pin |
| 22 | 420229475 | Needle Pin ISO 8734-10X65-B-ST |
| 23 | 420634606 | GEAR, 30 TEETH - Call your local BRP dealership |
| 24 | 420634741 | Double Gear (11/49 T) |
| 28 | 420881141 | Carbon Brush Set This part replaces 420881140. |
