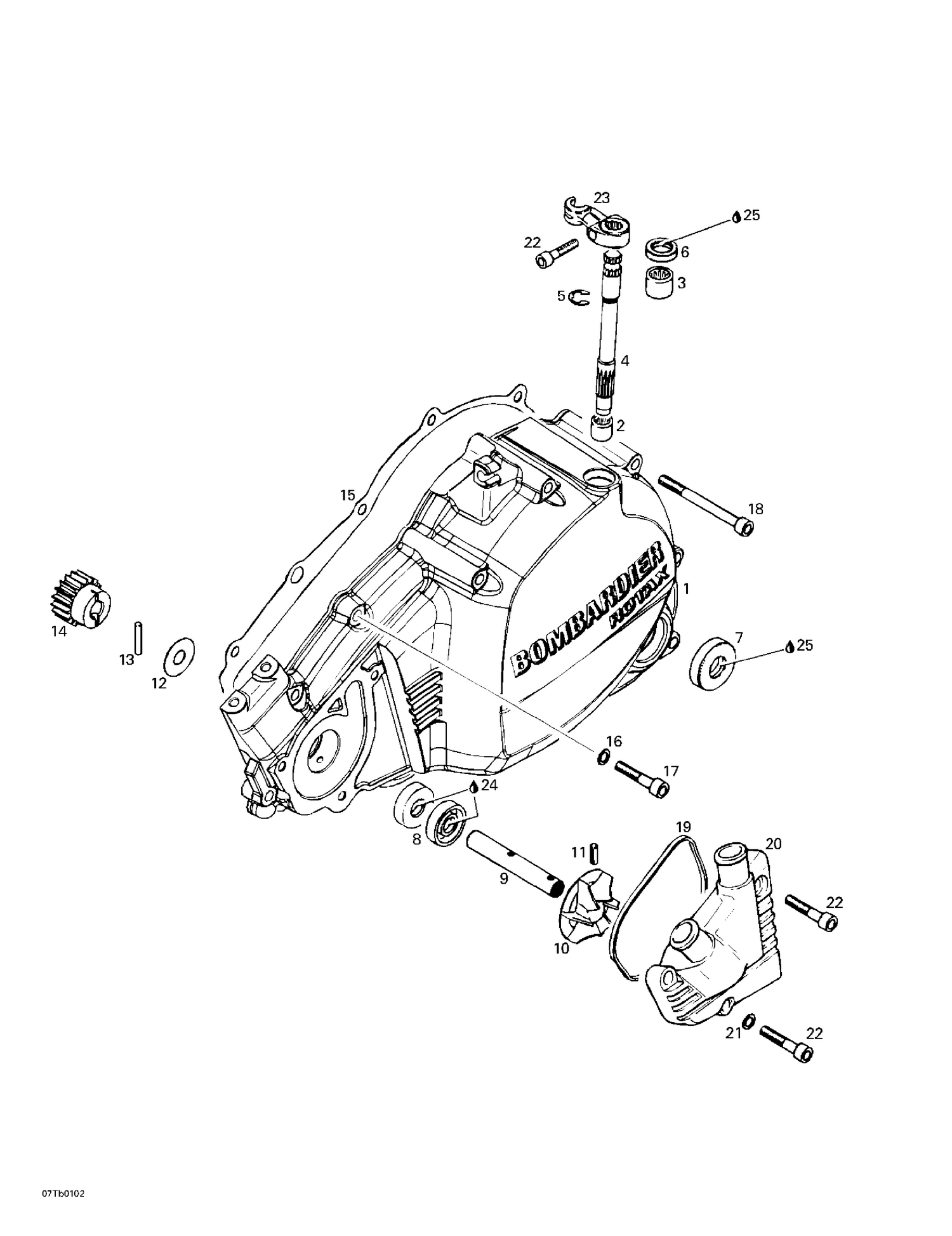

01- Clutch Housing
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 711610120 | Clutch Cover |
| 2 | 711232275 | Needle Bushing |
| 3 | 420232482 | Needle Bushing This part replaces 290232480. |
| 4 | 711237022 | Shaft-Release Clutch (11 Teeth) |
| 5 | 420845390 | RETAINING RING - Call your local BRP dealership |
| 6 | 711250992 | Oil Seal |
| 7 | 420250450 | Oil Seal This part replaces 711250450. |
| 8 | 420230195 | Oil Seal |
| 9 | 711237040 | Water Pump Shaft |
| 10 | 420222272 | Water Pump Impeller This part replaces 711222272. |
| 11 | 420229280 | Spring Pin This part replaces 711229280. |
| 12 | 420827590 | Thrust Washer This part replaces 711827590. |
| 13 | 420232420 | Needle Pin |
| 14 | 711234620 | Gear (18 Teeth) |
| 15 | 420230581 | Gasket This part replaces 711230581. |
| 16 | 420230415 | Seal Washer This part replaces 711230415. |
| 17 | 205063044 | Socket Head Screw M6 X 30 |
| 18 | 711240532 | Socket Head Screw M6 x 75 |
| 19 | 420850430 | O-RING - Call your local BRP dealership |
| 20 | 711211270 | Waterpump Cover |
| 21 | 420230415 | Seal Washer This part replaces 711230415. |
| 22 | 205062544 | Socket Head Screw M6 X 25 |
| 23 | 711248305 | Lever-Release Clutch |
| 24 | 413707000 | Dow Corning 111, 150 g |
