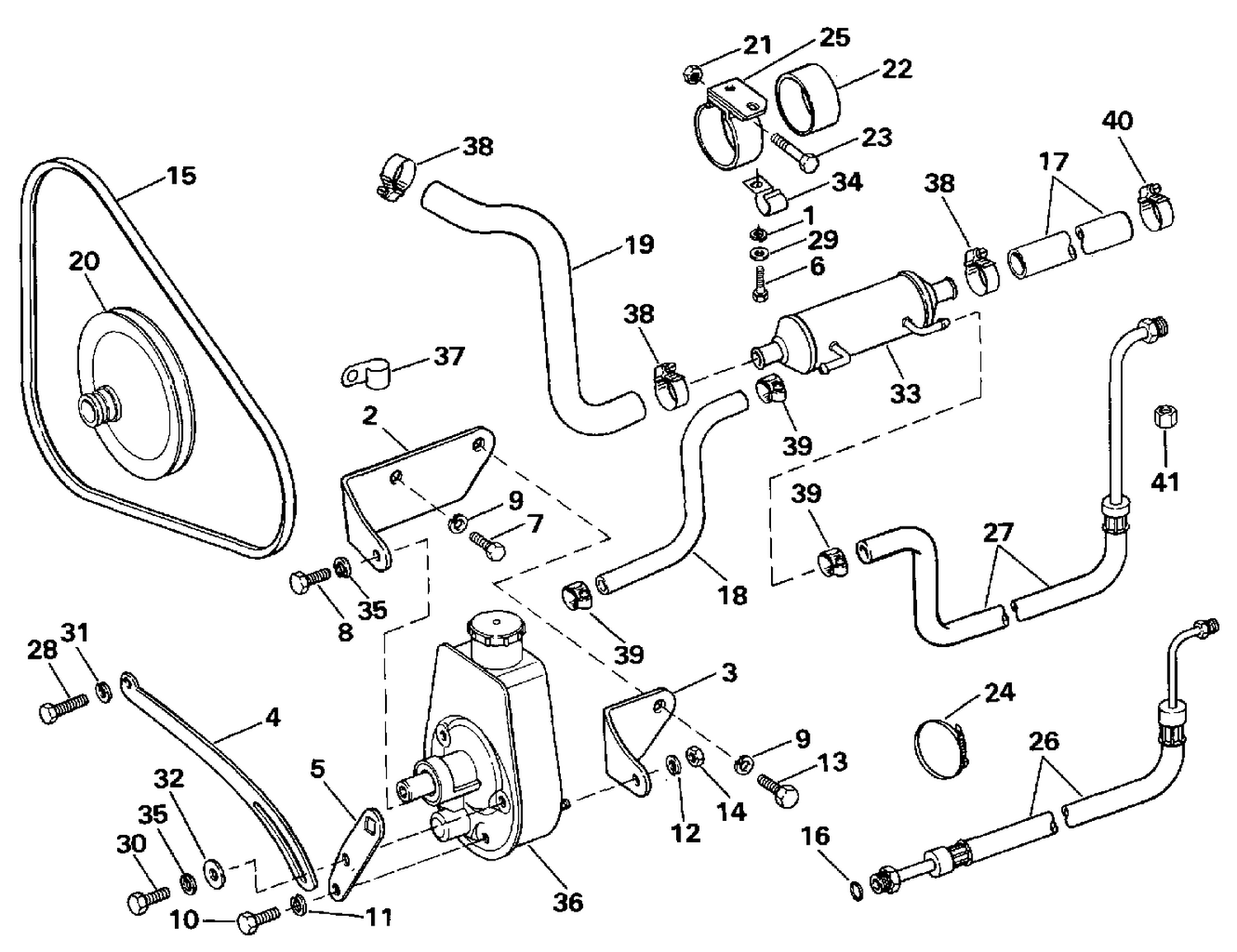

POWER STEERING PUMP

POWER STEERING PUMP

Parts (37)

RefPart NumberDescription
1 0120177 L'WASHER, Alternator to brkt
2 3852500 BRACKET, Steering pump, front This part replaces 0910335.
3 3852501 BRACKET, Steering pump, rear This part replaces 0910336.
4 3853328 BRACE, Steering pump This part replaces 0914770.
5 3853327 BRACE, Belt adjustment This part replaces 0914768.
6 0306834 BOLT, Throttle lever retainer
7 0306539 BOLT, Distributor
8 0910324 SCREW
9 0120177 L'WASHER, Alternator to brkt
10 0910324 SCREW
11 3852496 LOCK WASHER, Bracket to pump This part replaces 0910320.
12 3852496 LOCK WASHER, Bracket to pump This part replaces 0910320.
13 0306414 SCREW
14 3852498 NUT, Pump to bracket, rear This part replaces 0910323.
15 3852464 BELT, Alternator This part replaces 0908929.
16 3852497 O-RING, Pressure hose This part replaces 0910321.
17 0914520 HOSE, Gimbal to oil cooler
18 3852574 HOSE, Cooler to pump, return This part replaces 0911917.
19 0911974 HOSE, Cooler to thermo. hsg.
20 3853804 PULLEY, Steering pump This part replaces 0983839.
21 0308335 CLAMP, Coil
22 3853236 SLEEVE, Ignition coil This part replaces 0914455.
24 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
25 3852218 BRACKET, Oil cooler This part replaces 0383448.
26 3853809 HOSE, Pump to valve, pressure This part replaces 0984030.
27 3853810 HOSE, Valve to oil cooler, return This part replaces 0984055.
28 0306450 SCREW
30 0910322 SCREW, Brace to pump
31 0306453 LOCKWASHER, Fuel pump
32 0306981 LOCKWASHER, Brace to pump
33 0985840 OIL COOLER
35 3852496 LOCK WASHER, Bracket to pump This part replaces 0910320.
36 3850491 Pump Ay This part replaces 0983791.
37 3852457 CLAMP, Hose to exhaust manifold This part replaces 0908749.
38 0979803 CLAMP
39 0986355 CLAMP, Hose
40 0912627 CLAMP
