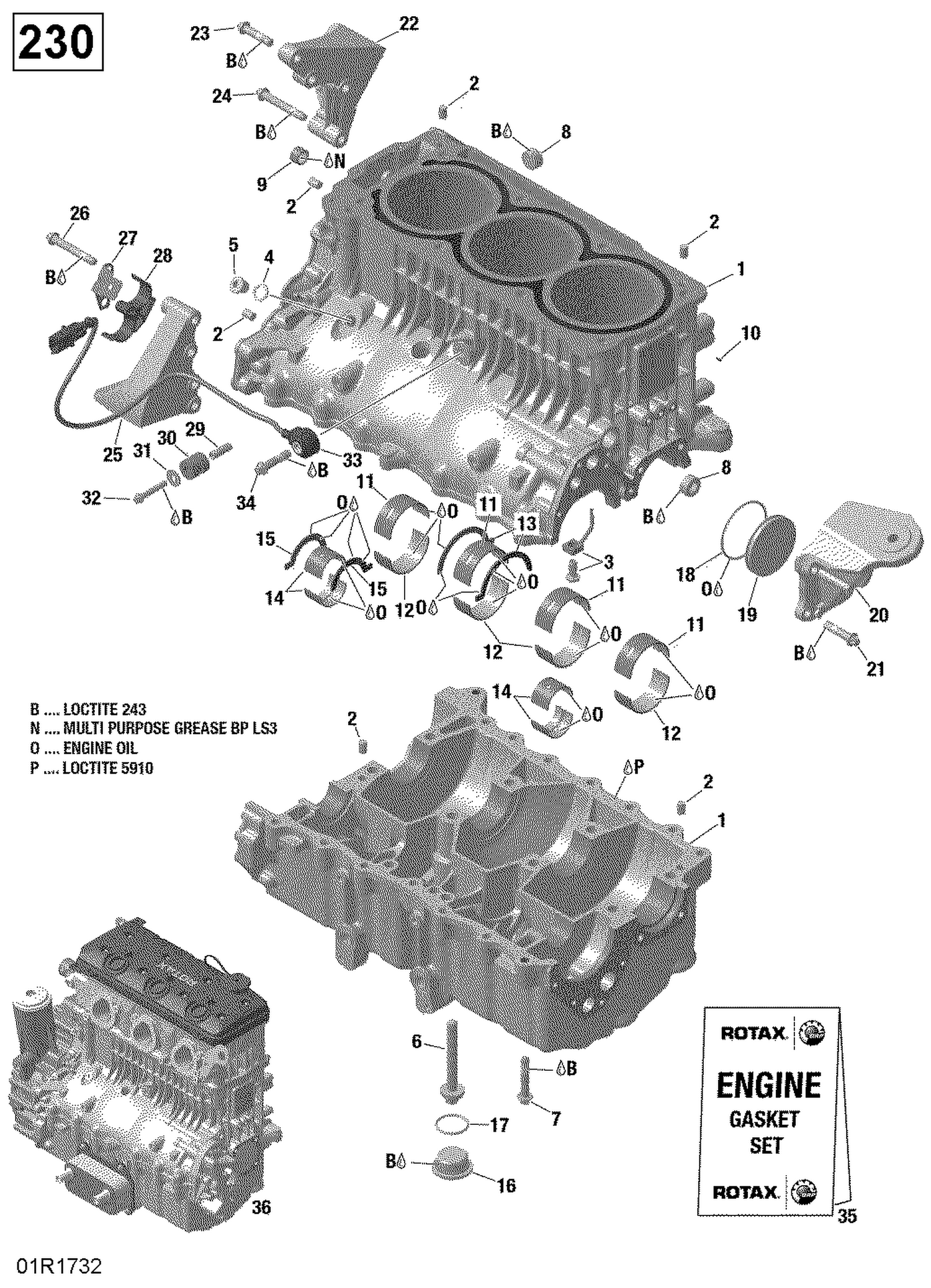

01- Engine Block - 230
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420956827 | Oil Spray Nozzle This part replaces 420956778. |
| 4 | 420250016 | Aluminum Sealing Ring This part replaces 420250015. |
| 5 | 420841923 | Plug Screw M12 |
| 6 | 420641120 | Torx Flange Screw M10 X 82 |
| 7 | 420641208 | Hex. Flange Screw M8 X 45 |
| 8 | 420641317 | Plug Screw M20 X 1.5 |
| 9 | 420232482 | Needle Bushing |
| 10 | 420249073 | Grooved Pin |
| 11 | 420933456 | Plain Half-Bearing |
| 12 | 420933466 | Plain Half-Bearing |
| 13 | 420933475 | Half-Ring |
| 14 | 420933442 | Plain Bearing Half |
| 15 | 420933470 | Half-Ring |
| 17 | 420631300 | O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws |
| 18 | 420430411 | O-Ring 57-3 Cylinder Bloc Plug Cover This part replaces 420430405. |
| 19 | 420660110 | Plug Cover |
| 20 | 420811792 | FRONT ENGINE BRACKET - Call your local BRP dealership |
| 21 | 420641188 | Torx Flange Screw M8 X 35 |
| 22 | 420811788 | Engine Bracket PTO, Exhaust This part replaces 420811787. |
| 23 | 420641188 | Torx Flange Screw M8 X 35 |
| 24 | 420641213 | Torx Flange Screw M8 X 55 |
| 25 | 420811784 | Engine Bracket PTO, Exhaust This part replaces 420811782. |
| 26 | 420641213 | Torx Flange Screw M8 X 55 |
| 27 | 420851740 | Retaining Plate |
| 28 | 420660293 | HOSE BRACKET This part replaces 420660290. |
| 29 | 420847971 | Spacer |
| 30 | 420660090 | Rubber Bracket |
| 31 | 420827968 | Flat Washer M6 |
| 32 | 420641258 | Torx Flange Screw M6 X 35 |
| 33 | 420664031 | Noise Sensor |
| 34 | 420641188 | Torx Flange Screw M8 X 35 |
| 35 | 420889774 | Gasket Set |
| 36 | 420150332 | Long Block Engine |
