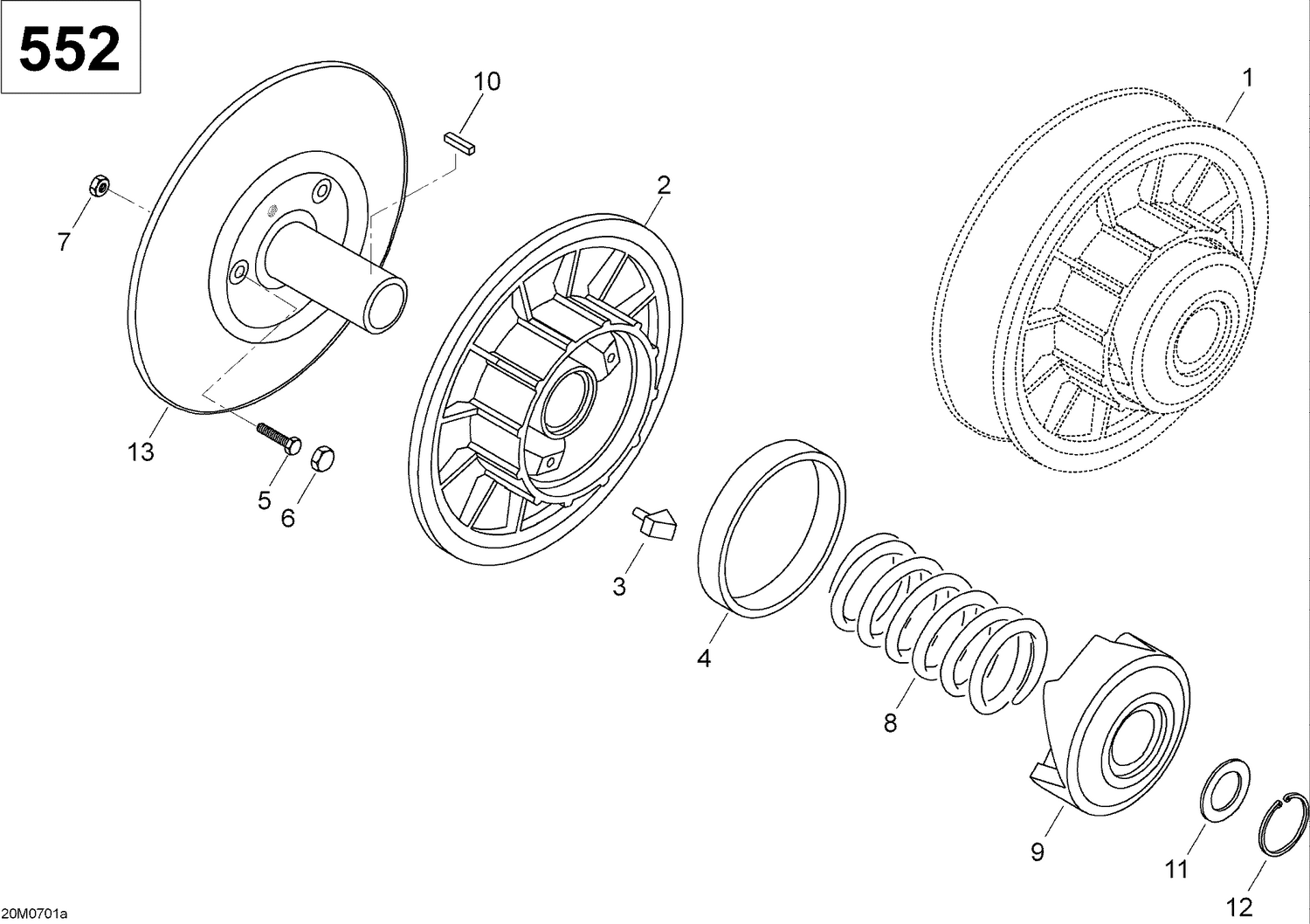

05- Driven Pulley 550F SUV
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Driven pulley ass'y |
| 4 | 417126308 | BUSHING - Call your local BRP dealership |
| 8 | 417119100 | RELEASE SPRING - Call your local BRP dealership |
| 10 | 417119400 | KEY - Call your local BRP dealership |
| 12 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 14 | XXX | Not Available As Spare Parts |
| 15 | XXX | Not Available As Spare Parts |
| 16 | XXX | Not Available As Spare Parts |
| 17 | XXX | Not Available As Spare Parts |
