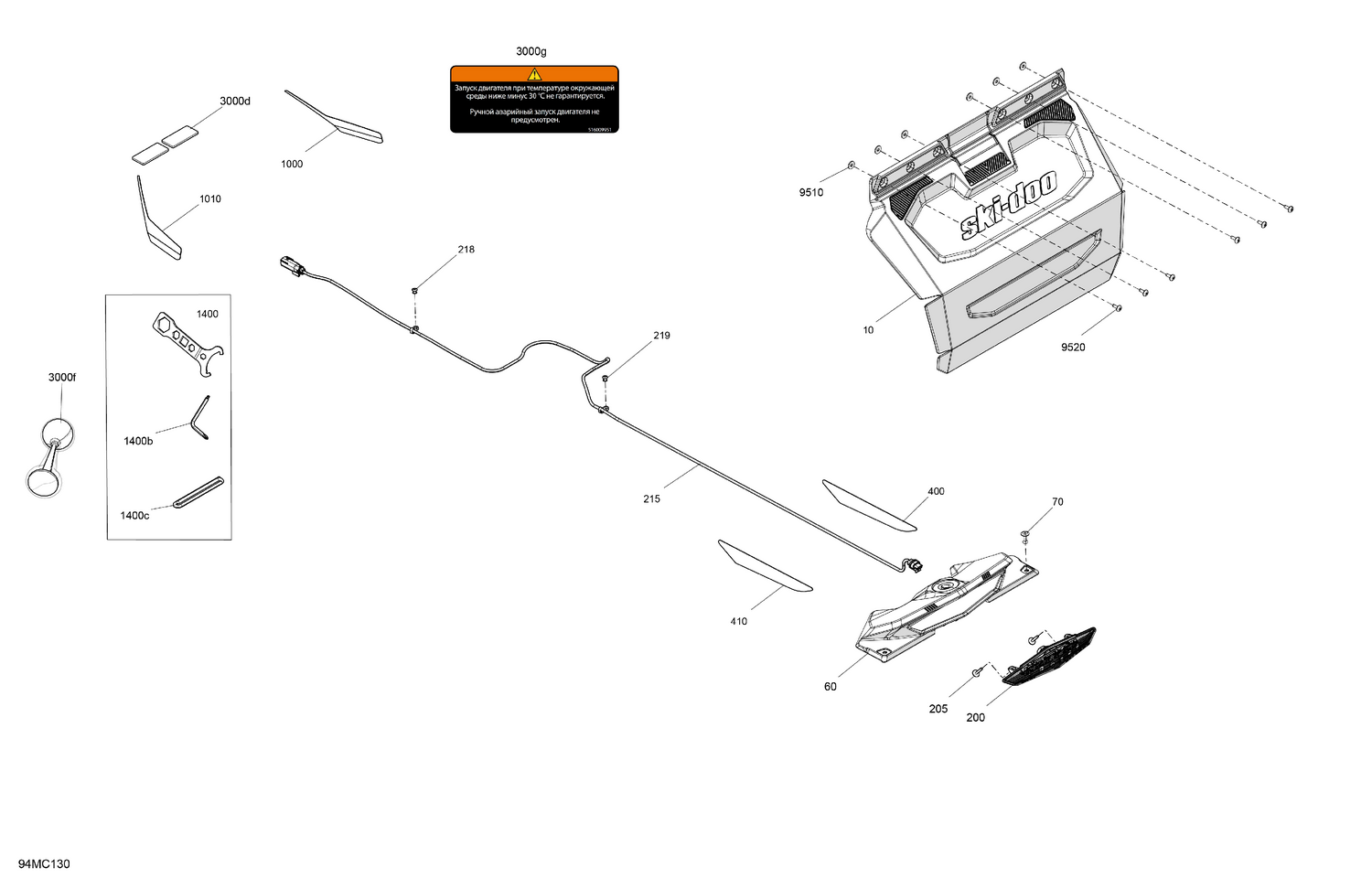

09- Miscellaneous - Utilities
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002056 | Snow Guard |
| 60 | 520002228 | Light Fairing |
| 70 | 293150123 | Pop Rivet 3/16" |
| 200 | 520002710 | Tail Light |
| 205 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 215 | 515178953 | Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 219 | 390402200 | Pop Rivet 3/16" |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 1000 | 520002444 | RH Front Reflector |
| 1010 | 520002443 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 1400c | 529017500 | Rope Starter |
| 3000d | 520002680 | Amber, Reflector |
| 3000f | 549011291 | Horn |
| 3000g | 516009951 | Warning Decal, Security |
| 9510 | 250200025 | Washer M5 |
