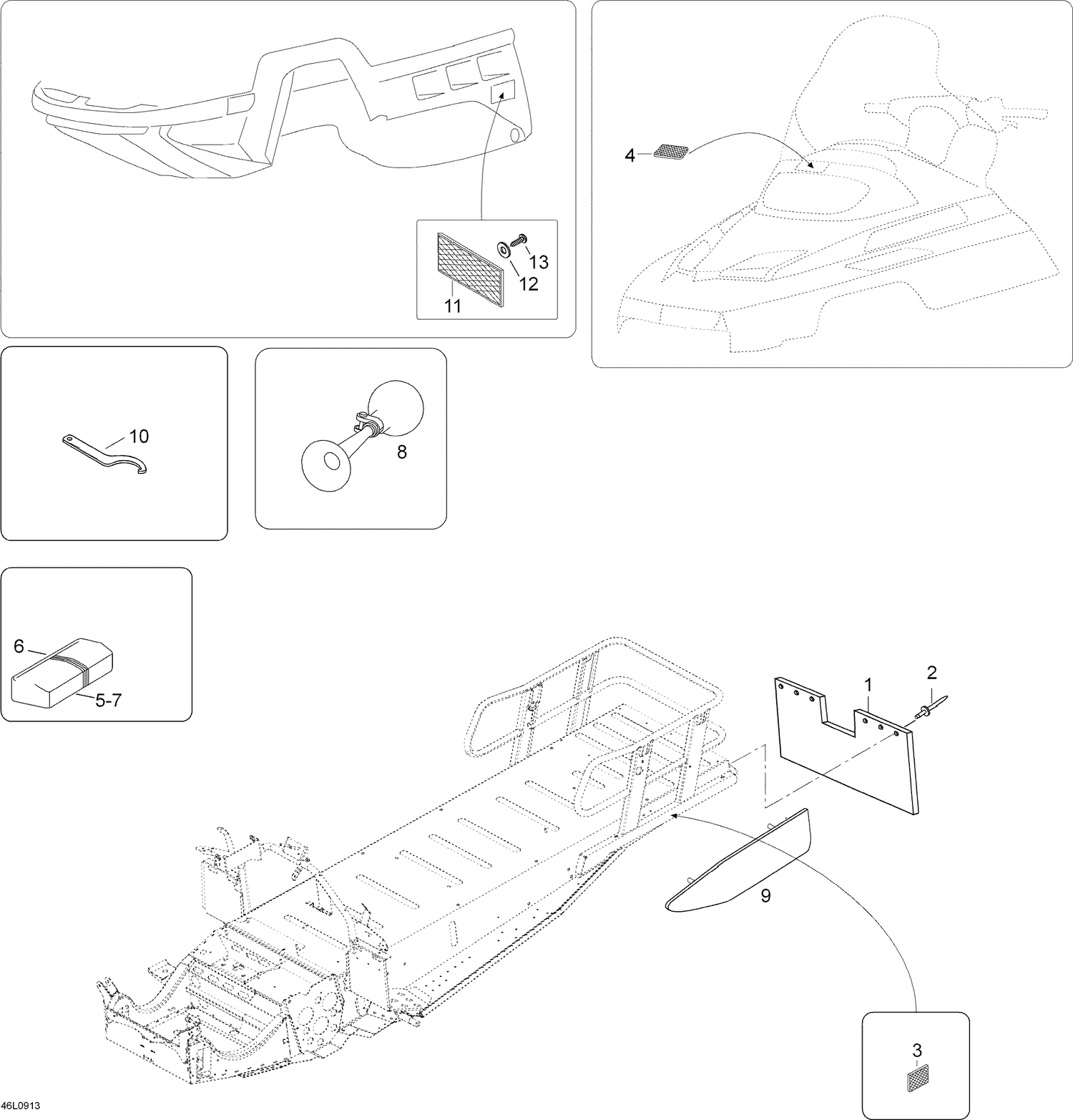

| Ref | Part Number | Description |
|---|
| 1 |
535437 |
Snowquard |
| 2 |
36036 |
Rivet |
| 3 |
21121 |
REFLECTOR (YELLOW) - Call your local BRP dealership |
| 4 |
21118 |
Reflector, vit |
| 6 |
A50121179000 |
TOOL BOX - Call your local BRP dealership |
| 7 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 8 |
549011291 |
Horn This part replaces 415040700. |
| 9 |
605354746 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 9 |
605354747 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 10 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 11 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 12 |
20018 |
Rerrated lock washer A5,3 |
