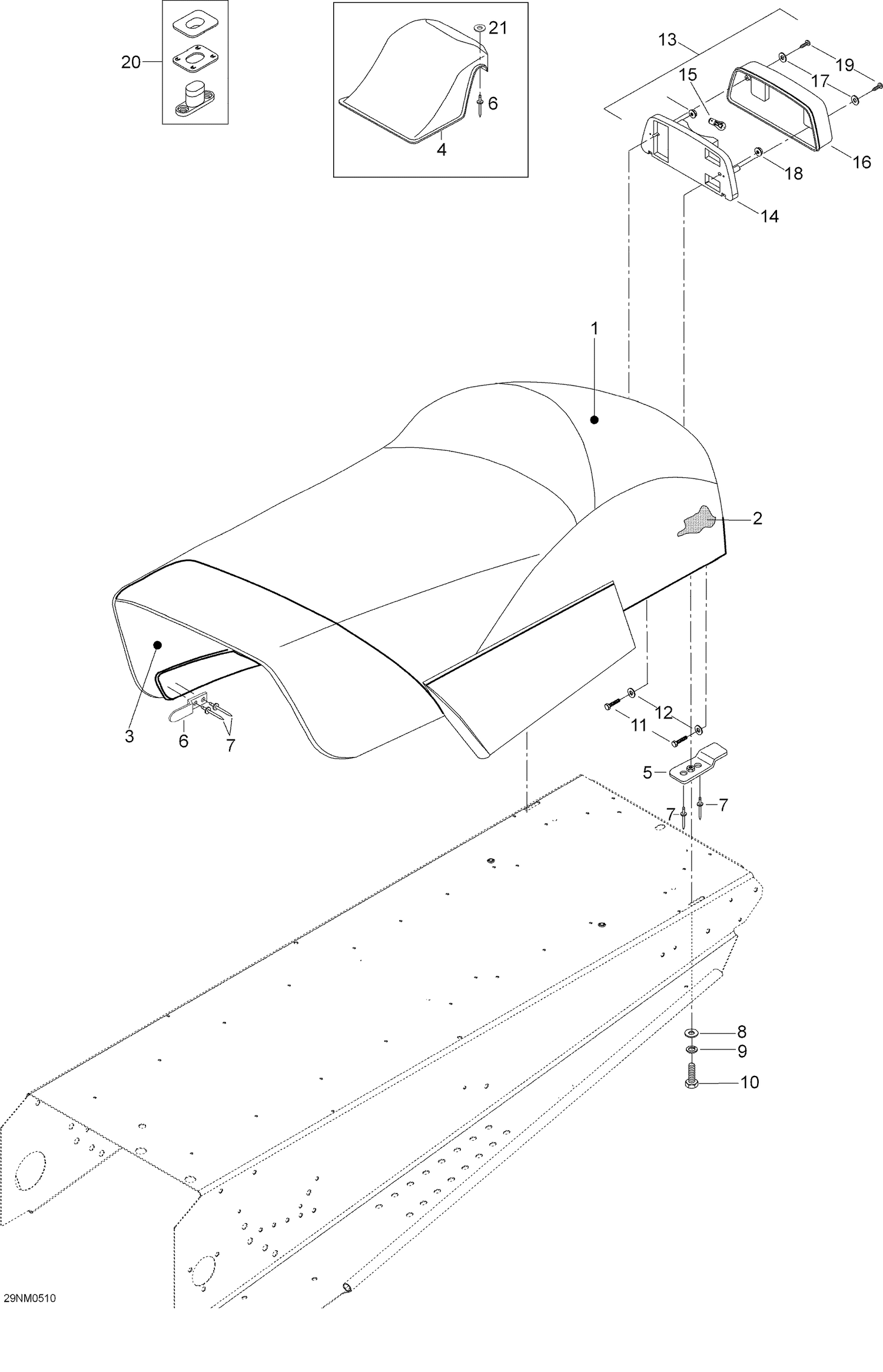

| Ref | Part Number | Description |
|---|
| 1 |
605152222 |
Seat cover |
| 2 |
5243866 |
Seat foam |
| 3 |
5146815 |
Seat bottom |
| 4 |
5347993 |
Rear trunk |
| 5 |
5447928 |
Fastening plate, rear |
| 6 |
5447909 |
Fastening plate, front |
| 7 |
Not |
Available As Spare Part - Rivet |
| 8 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 9 |
20014 |
Lock washer A8 |
| 10 |
40015 |
SELF TAPPING SCREW M8X30 - Call your local BRP dealership |
| 11 |
40002 |
Screw M6 x 40 |
| 12 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 14 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership |
| 15 |
520000758 |
Bulb This part replaces 410504000. |
| 16 |
414513700 |
Lens |
| 17 |
414516400 |
Washer - Call your local BRP dealership |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 19 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 20 |
5444390 |
Seat Buckle |
