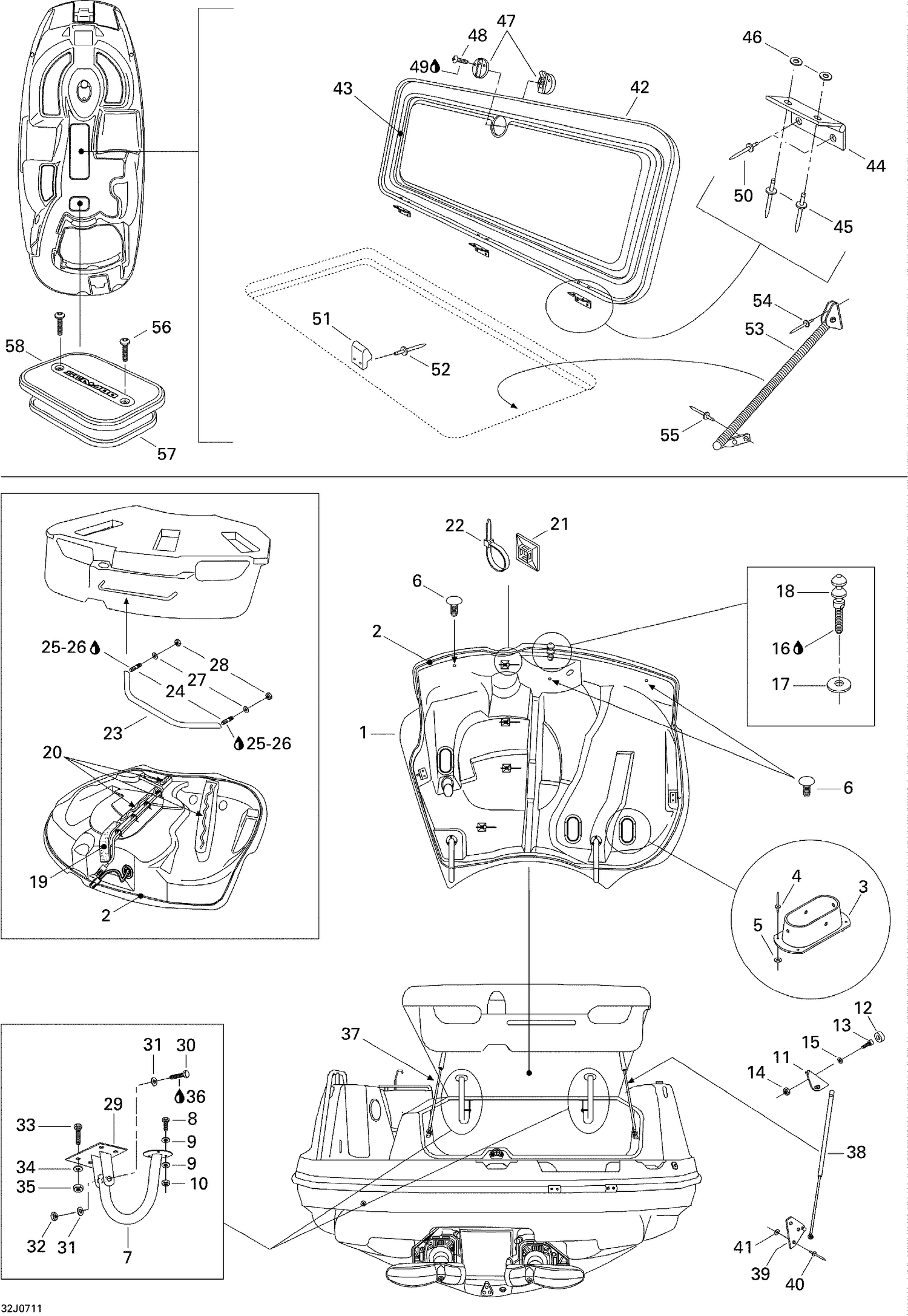

| Ref | Part Number | Description |
|---|
| 1 |
204072574 |
ENGINE COVER - Call your local BRP dealership |
| 2 |
204130083 |
D-SEAL RUBBER - Call your local BRP dealership |
| 3 |
204071540 |
Ventilator Adaptor |
| 4 |
293150015 |
Pop Rivet 1/8” |
| 5 |
234032600 |
Flat Washer M3, Stainless |
| 6 |
293730014 |
Black Dart |
| 7 |
204070785 |
ENGINE COVER HINGE - Call your local BRP dealership |
| 8 |
207164560 |
Hex. Screw M6 X 45 |
| 9 |
234062600 |
Flat Washer M6, Stainless |
| 10 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 11 |
204073074 |
Shock Bracket This part replaces 204071700. |
| 12 |
204073815 |
BUMPER PAD - Call your local BRP dealership This part replaces 204070760. |
| 13 |
205455060 |
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership |
| 14 |
232551600 |
Hex. Elastic Nut M5 |
| 15 |
234052600 |
Flat Washer 5 mm, Stainless |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 18 |
204130052 |
DOUBLE LATCH STUD - Call your local BRP dealership |
| 19 |
204070903 |
FOAM 2-1/2 X 2-1/2 X 18.5 - Call your local BRP dealership |
| 20 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 21 |
293750015 |
TIE RAP MOUNT - Call your local BRP dealership |
| 22 |
293750002 |
Tie Wrap 142 mm |
| 23 |
204071122 |
GRAB HANDLE - Call your local BRP dealership |
| 24 |
204100050 |
STUD 3/8?-16 X 2? - Call your local BRP dealership |
| 25 |
293800005 |
Loctite 271, 10 ml |
| 26 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 27 |
234002600 |
Flat Washer 10 mm, Stainless |
| 28 |
204100032 |
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership |
| 29 |
204070925 |
HINGE BRACKET, ENGINE COVER - Call your local BRP dealership |
| 30 |
204100053 |
HEX. SCREW 3/8?-16 X 2-1/2? - Call your local BRP dealership |
| 31 |
234002600 |
Flat Washer 10 mm, Stainless |
| 32 |
204100032 |
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership |
| 33 |
207164060 |
Hex. Screw M6 X 40 |
| 34 |
234061600 |
Stainless Flat Washer M6 |
| 35 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 36 |
293800060 |
Loctite 243, 10 ml |
| 37 |
204071923 |
GAS SHOCK - Call your local BRP dealership |
| 38 |
204071924 |
GAS SHOCK - Call your local BRP dealership |
| 39 |
204071673 |
Shock Bracket |
| 40 |
293150043 |
Pop Rivet 3/16" |
| 41 |
234051600 |
Flat Washer M5, Stainless |
| 42 |
204073144 |
CENTER COVER - Call your local BRP dealership This part replaces 204072455. |
| 43 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 44 |
204072601 |
HINGE - Call your local BRP dealership |
| 45 |
293150088 |
Pop Rivet 3/16" |
| 46 |
234051600 |
Flat Washer M5, Stainless |
| 47 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 48 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 49 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 50 |
293150005 |
Pop Rivet 3/16" |
| 51 |
204070050 |
LATCH BRACKET - Call your local BRP dealership |
| 52 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 53 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 54 |
204000081 |
Pop Rivet 3/16" |
| 55 |
293150043 |
Pop Rivet 3/16" |
| 56 |
205464060 |
Socket Screw M6 X 40 |
| 57 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
