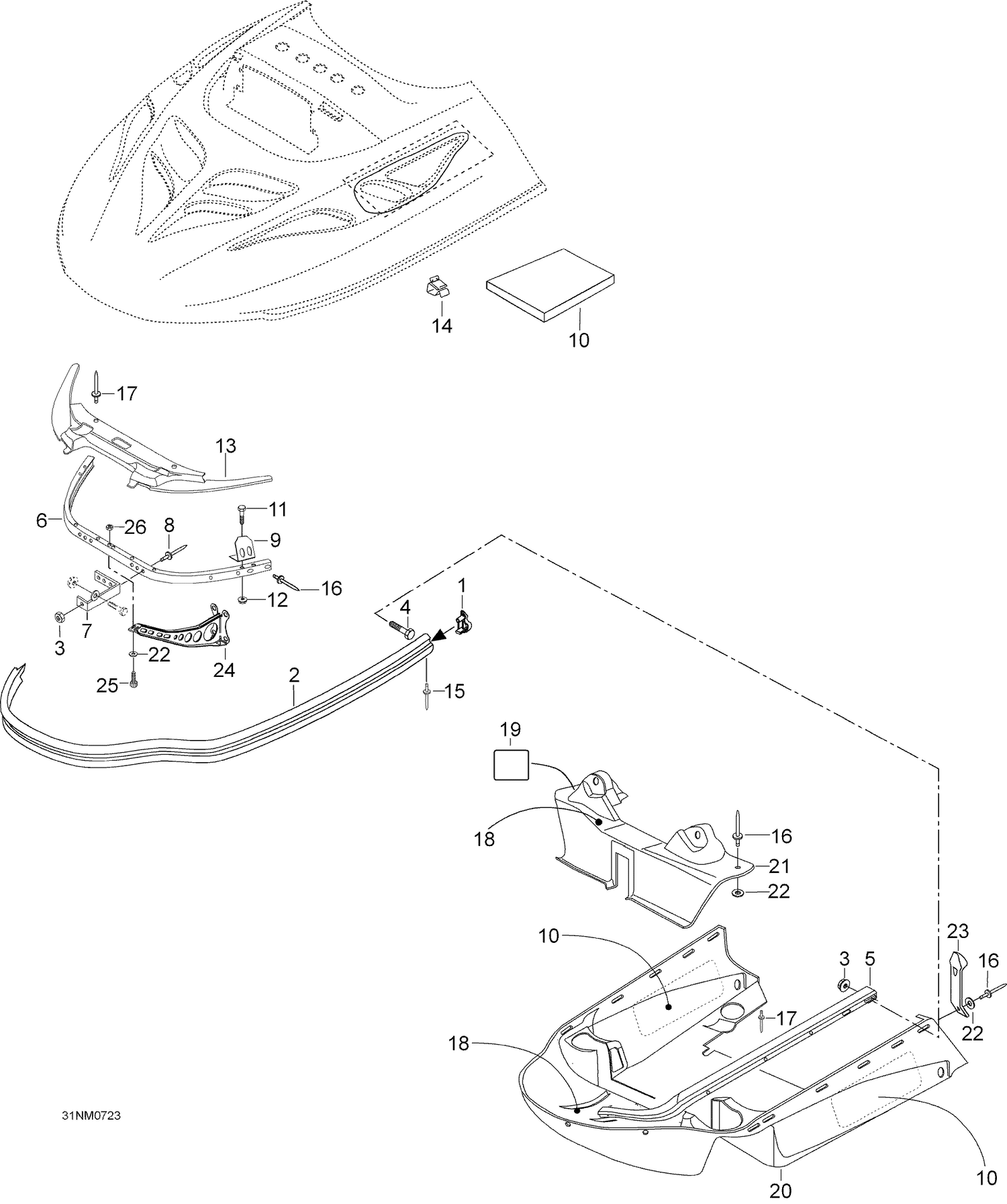

| Ref | Part Number | Description |
|---|
| 1 |
549096L |
Bumper Cap L.H. - Call your local BRP dealership |
| 1 |
549096R |
R.H. Plug |
| 2 |
5242798 |
Bumper |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 4 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 5 |
5242803 |
L.H. side guide |
| 5 |
5242804 |
Guide RH - Call your local BRP dealership |
| 7 |
5342234 |
R.H. Hinge |
| 7 |
5342345 |
L.H. Hinge |
| 8 |
36083 |
Rivet |
| 9 |
5443217 |
L.H. Guide, short |
| 9 |
605449350 |
HOOD GUIDE - Call your local BRP dealership |
| 10 |
414631900 |
Foam acoustic |
| 11 |
40247 |
Screw M5 x 16 |
| 12 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 13 |
605252352 |
COVER - Call your local BRP dealership |
| 14 |
414227300 |
Clip |
| 15 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 16 |
36037 |
Rivet |
| 17 |
36036 |
Rivet |
| 18 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 19 |
605449182 |
ISOLATION SHEET - Call your local BRP dealership |
| 20 |
605152263 |
Bottom pan |
| 21 |
605248597 |
Cover plate |
| 22 |
20008 |
Washer A5,3 |
| 23 |
5342952 |
Hood Latch |
| 24 |
5245977 |
Bracket |
| 25 |
40308 |
Socket Head screw M5 x 16 |
