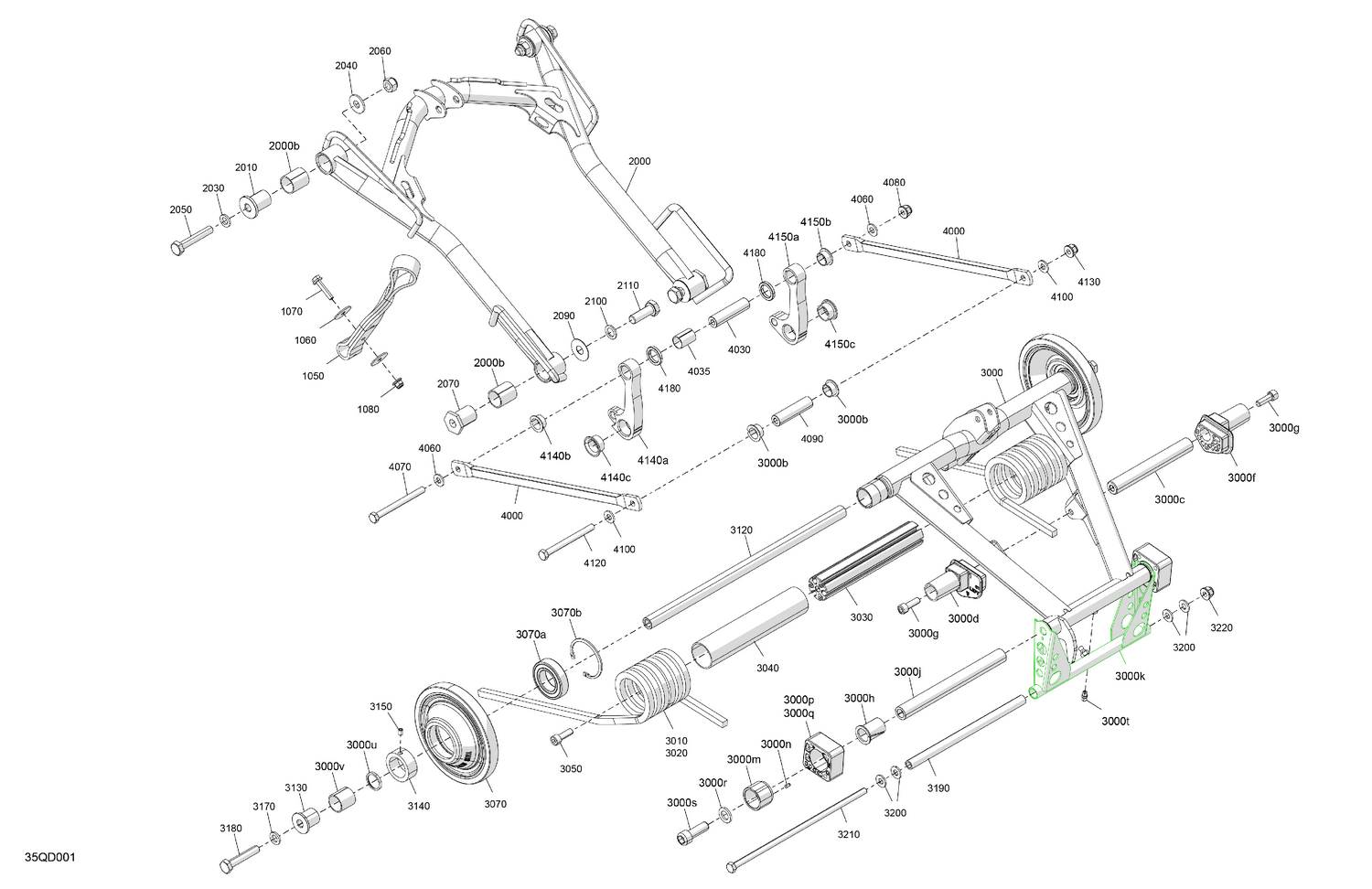

05- Suspension - Rear - Upper Section
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 503195313 | Stopper Strap |
| 1060 | 503193995 | Washer |
| 1070 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 1080 | 233261466 | Hex. Flange Elastic Nut M6 |
| 2000b | 503191554 | Bushing |
| 2010 | 503190698 | Axle |
| 2030 | 503192496 | Washer |
| 2040 | 503191926 | Washer |
| 2050 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2060 | 233601466 | Elastic Locking Nut M10 |
| 2070 | 503191966 | Lower Axle |
| 2090 | 503190656 | Washer |
| 2100 | 503192491 | Washer |
| 2110 | 250000537 | Hex. Cap Screw M12 X 35 |
| 3000b | 503191555 | Swivel Bushing |
| 3000c | 503191178 | Spring Cam Axe |
| 3000d | 503191191 | LH Spring Cam |
| 3000f | 503191190 | RH Spring Cam |
| 3000g | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 3000h | 503191640 | Cushion |
| 3000j | 503192330 | Lower Shaft |
| 3000k | 503191302 | Pivot Arm |
| 3000m | 503189488 | Block Guide |
| 3000n | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 3000p | 503192301 | LH Block, 4 Positions |
| 3000q | 503192300 | RH Block, 4 Positions |
| 3000r | 503189148 | Washer |
| 3000s | 205523554 | Socket Head Screw M12 X 35 |
| 3000t | 408200700 | Grease Fitting |
| 3000u | 503191774 | Washer |
| 3000v | 503191773 | Bushing |
| 3010 | 503197509 | LH Rear Torsion Spring |
| 3020 | 503197510 | RH Rear Torsion Spring |
| 3030 | 503191344 | Spring Axle |
| 3040 | 503197349 | Socket |
| 3050 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 3070a | 503191778 | Ball Bearing |
| 3070b | 415129598 | Retaining Ring |
| 3120 | 503191215 | Upper Shaft |
| 3130 | 503197280 | Bushing |
| 3140 | 503191782 | Retaining Ring |
| 3150 | 206260844 | Socket Set Screw M6 X 8 |
| 3170 | 503192496 | Washer |
| 3180 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503191802 | Link Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4035 | 503191553 | Bushing |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503190643 | Axle Bar (Long) |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
| 4130 | 233281466 | Elastic Flange Nut M8 |
| 4140a | 503191890 | LH Rocker Arm |
| 4140b | 503191555 | Swivel Bushing |
| 4140c | 503191552 | Bushing |
| 4150a | 503191894 | RH Rocker Arm |
| 4150b | 503191555 | Swivel Bushing |
| 4150c | 503191552 | Bushing |
