Parts Catalog

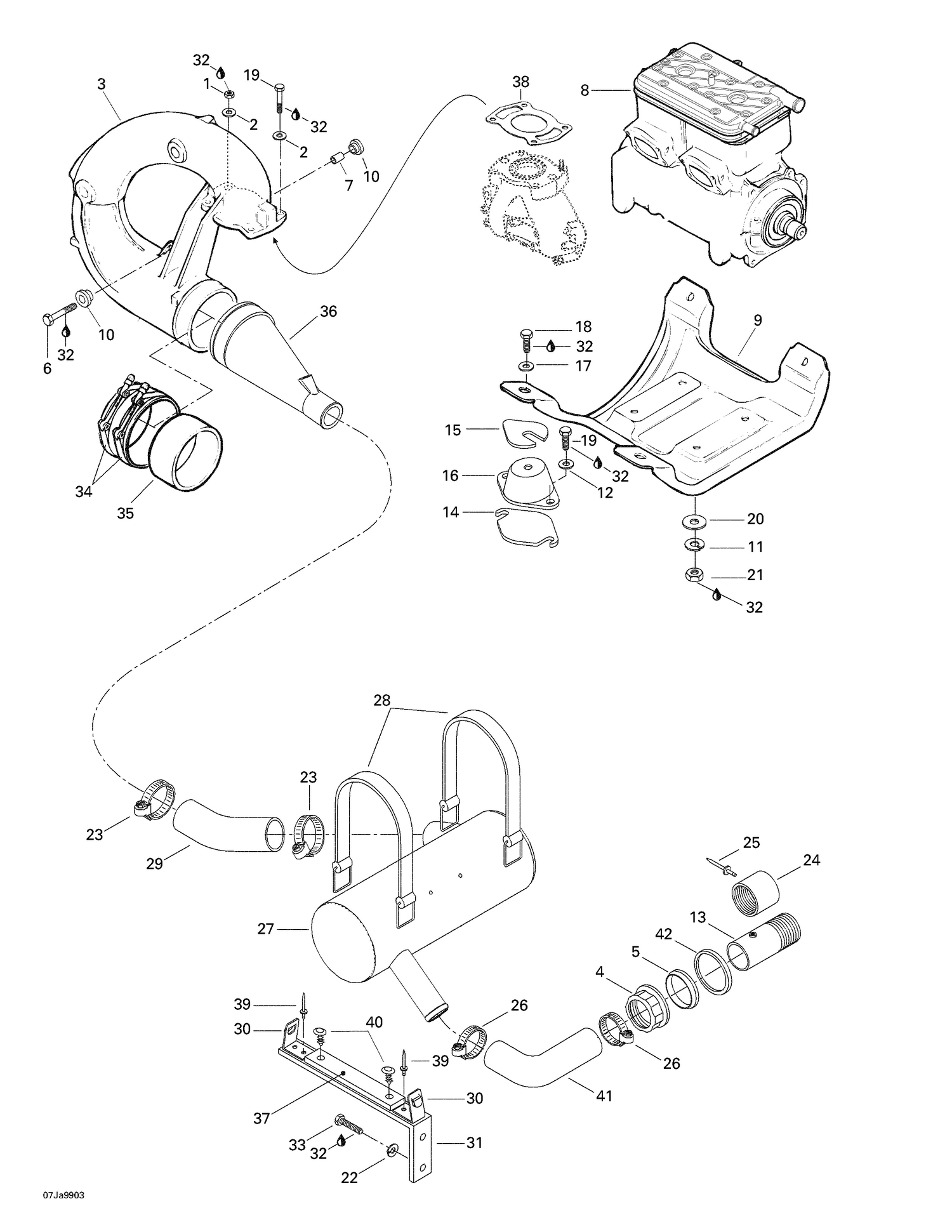

01- Engine Support And Muffler

Parts (43)

Ref	Part Number	Description
1	232081600	Hex. Nut M8
2	293050001	Flat Washer M8.5 x 18
3	274000487	Tuned Pipe Ass'y
4	274000224	Nut 72 mm
5	274000225	STABILIZING WASHER - Call your local BRP dealership
6	207084060	Hex. Screw M8 X 40
7	274000114	Bushing
8	270000443	Rotax Engine 717 (Silver)
9	204250074	Engine Support
10	293830031	Rubber Bushing
11	234101601	Helicoidal Lock Washer M10
12	234081600	Stainless, Flat Washer 8 mm
13	274000222	EXHAUST OUTLET - Call your local BRP dealership
14	270000006	Shim 0.4 mm
15	270000024	SHIM 0.4 MM - Call your local BRP dealership
16	270000425	Rubber Mount
17	234082600	Flat Washer 8 mm, Stainless
18	207182560	HEX. SCREW M8 X 25 - Call your local BRP dealership
19	207183060	Hex. Screw M8 X 30
20	234001600	Flat Washer 10 mm, Stainless
21	232001600	HEX. NUT M10 - Call your local BRP dealership
22	234151601	Helical Lock Washer M5
23	293650077	Norma Clamp
24	204340130	Extension Exhaust Outlet
25	293150060	Pop Rivet 3/16"
26	293650064	Tridon Clamp
27	204340111	LH Muffler
28	293850097	Retainer Strap This part replaces 293850021.
29	204340024	Exhaust Hose
30	204060017	Strap Clip 90°
31	Not	Available As Spare Part - Muffler Support
32	293800060	Loctite 243, 10 ml This part replaces 293800015.
33	210641940	SCREW M4.8 X 19 - Call your local BRP dealership
34	293650068	NORMA CLAMP - Call your local BRP dealership
35	274000074	Sealing Ring
36	274000488	Exhaust Cone Ass’Y
37	204060031	Rubber Pad
38	420950253	Exhaust Gasket This part replaces 290950251.
39	293150037	Avdel Rivet 3/16"
40	293730006	Black, Dart
41	204340028	RH Exhaust Hose
204340027	LH	Exhaust Hose 204340027
204340112	RH	Muffler 204340112
