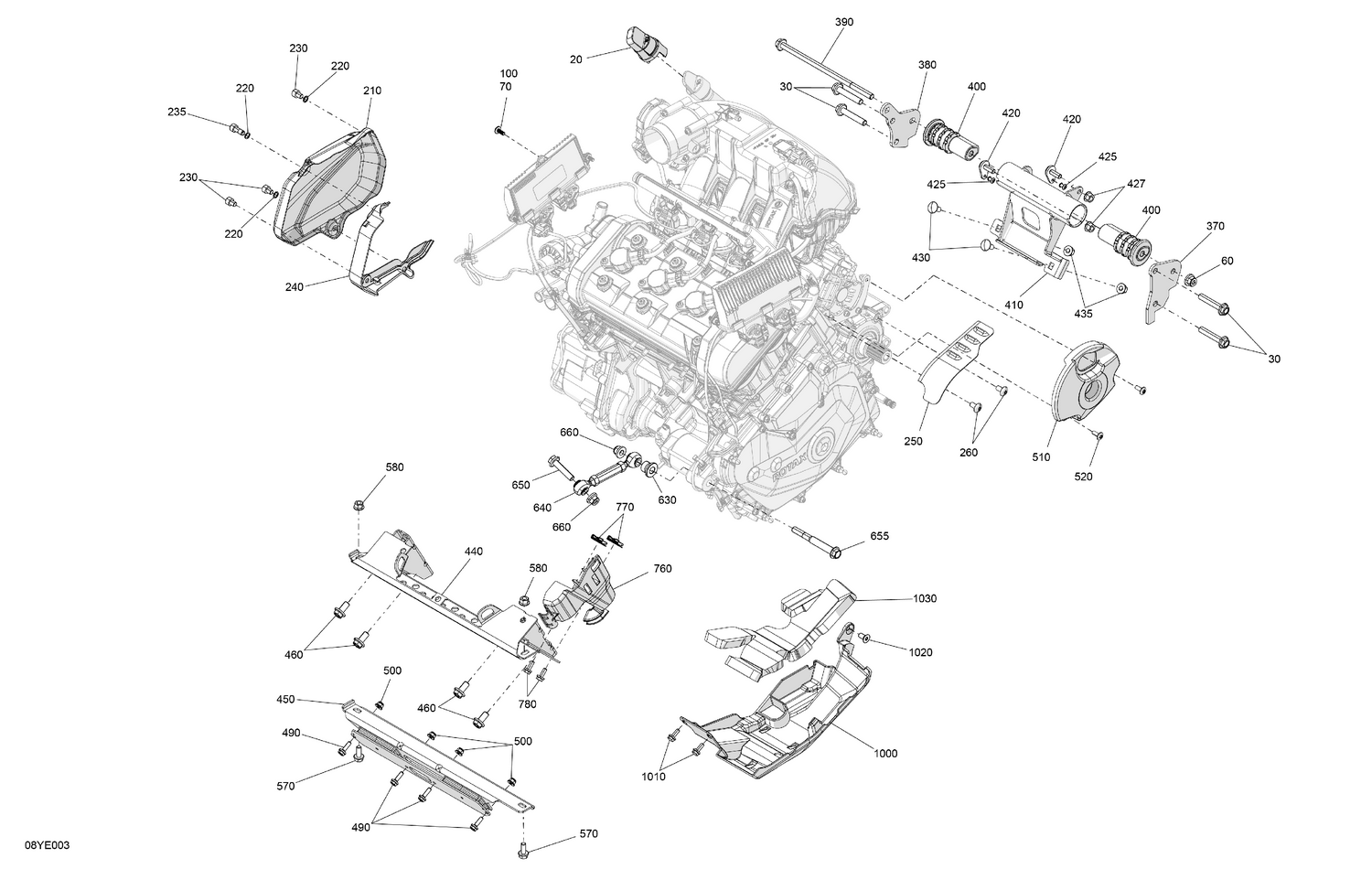

02- Engine - System
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 707003685 | Adapter |
| 30 | 207505544 | Hex. Flange Screw M10 X 55, Scotch Grip |
| 60 | 233201466 | Flange Elastic Nut M10 |
| 70 | 250000546 | Oval Head Torx Screw K60 X 16 |
| 100 | 250000546 | Oval Head Torx Screw K60 X 16 |
| 210 | 707601741 | Cover |
| 220 | 250200160 | Flate Washer M8, Aluminum |
| 230 | 211000127 | Socket Head Screw M8 X 10, Scotch Grip |
| 235 | 205582060 | Socket Head Screw M8 X 20, Scotch Grip |
| 240 | 707001628 | Wire Cover |
| 250 | 707003651 | Pulley Cover |
| 260 | 250000746 | Torx Truss Screw M8 X 16 |
| 370 | 707001293 | LH Engine Support |
| 380 | 707003556 | RH Engine Mount |
| 390 | 250000507 | Hex. Flange Screw M10 X 220 |
| 400 | 707003044 | Vibration Damper |
| 410 | 707000877 | Frame Extension |
| 420 | 707001292 | Attach |
| 425 | 293150301 | Pop Rivet 3/16 X ,551 |
| 427 | 233081416 | Hex. Flange Nut M8 |
| 430 | 207782046 | Carriage Bolt M8 X 20 |
| 435 | 233081416 | Hex. Flange Nut M8 |
| 440 | 707001561 | Front Engine Support |
| 450 | 707000876 | Rubber Mount |
| 460 | 207502044 | Hex Flange Screw M10 X 20 |
| 490 | 207662054 | Hex. Flange Screw M6 X 20 |
| 500 | 233261466 | Hex. Flange Elastic Nut M6 |
| 510 | 705018455 | Generator Cover |
| 520 | 250000881 | Torx Truss M8 X 16 |
| 570 | 207682046 | Hex. Flange Screw M8 X 20 |
| 580 | 233081416 | Hex. Flange Nut M8 |
| 630 | 707001736 | Spacer |
| 640 | 707001918 | Connecting Rod |
| 650 | 207504546 | Hex. Flange Screw M10 X 45 Scotch Grip |
| 655 | 250001099 | Hex. Flange Screw M10 X 100 |
| 660 | 233201466 | Flange Elastic Nut M10 |
| 760 | 707003755 | Connector Support This part replaces 707003212. |
| 770 | 250100208 | Panel Nut M6 X 1.0 |
| 780 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1000 | 707001930 | Skid Plate |
| 1010 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1020 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
