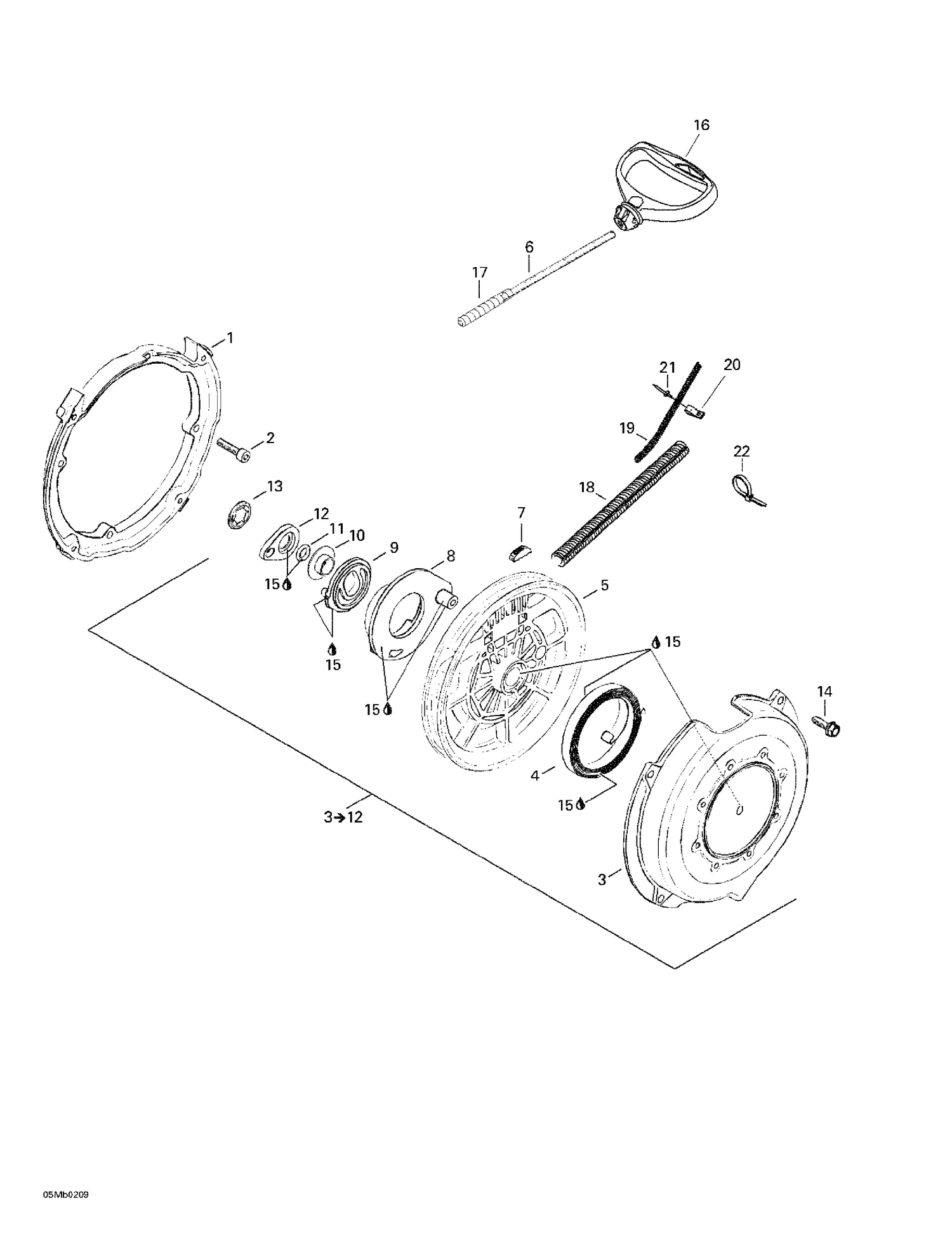

04- Rewind Starter
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420810955 | Flange Connector This part replaces 420810952. |
| 2 | 420840403 | Allen Screw M6 x 22 This part replaces 420840401. |
| 4 | 420939115 | Rewind Spring |
| 5 | 420852480 | Rope Sheave |
| 6 | 219704403 | Was 412500100 Rope-Starter |
| 7 | 420852070 | Key Clamp |
| 8 | 420852296 | Pawl |
| 9 | 420852305 | PAWL LOCK - Call your local BRP dealership This part replaces 420852303. |
| 10 | 420847926 | Stage Sleeve This part replaces 420847925. |
| 11 | 420250400 | O-Ring |
| 12 | 420852520 | Lock Ring |
| 13 | 420845560 | Locking Element |
| 14 | 420941251 | SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 15 | 420899763 | Molykote PG 54, 10 g |
| 16 | 572084400 | Starter Grip |
| 17 | 512059668 | Heat Shrink Tubing 25 mm |
| 18 | 219704400 | Was 409901800 Tubing (13 mm) |
| 19 | 518321569 | ROPE GUIDE - Call your local BRP dealership |
| 20 | 518321570 | Open Clamp |
| 21 | 390406500 | Pop Rivet 3/16" |
