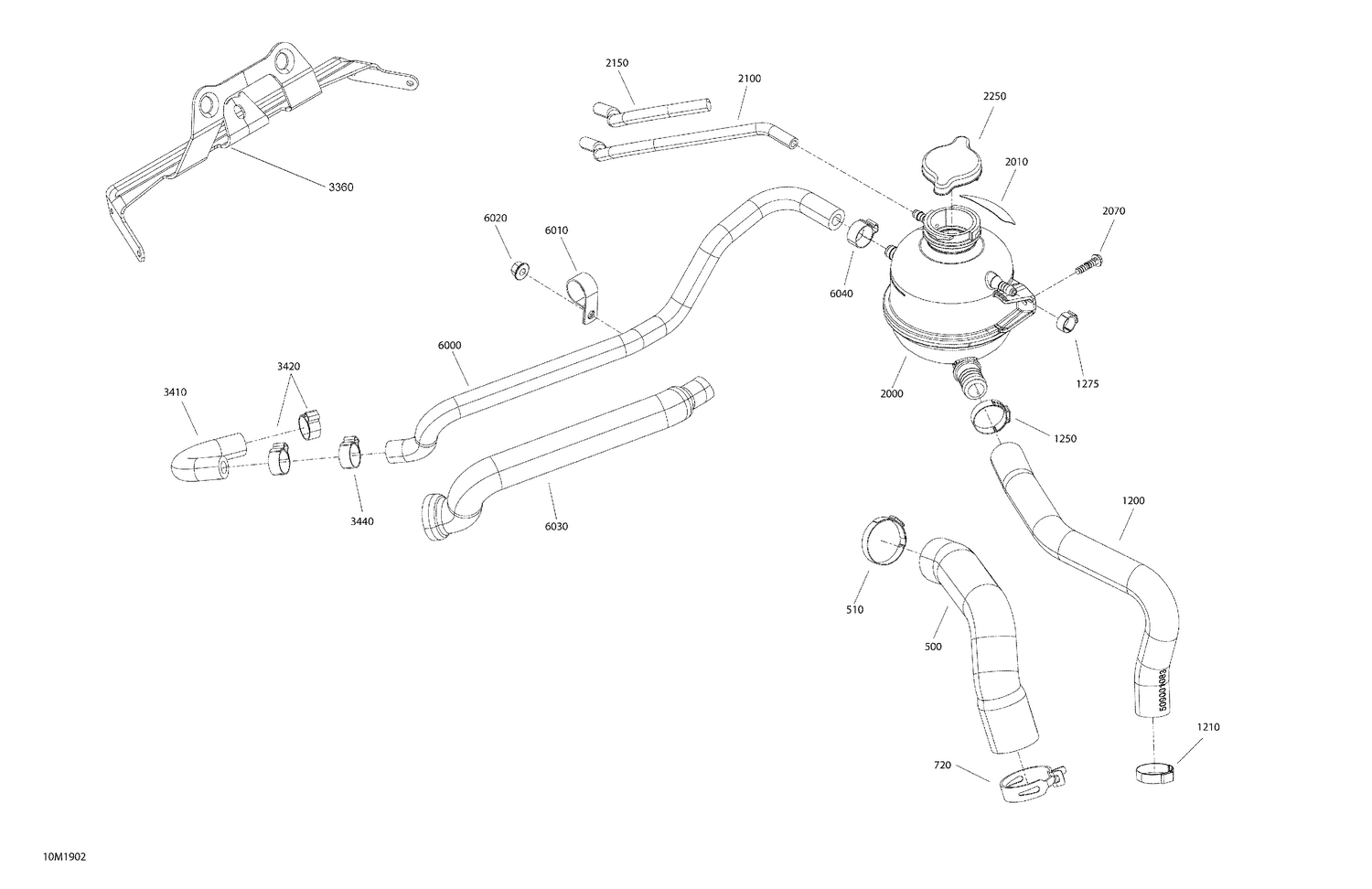

01- Cooling 900 ACE - Without Air Radiator Kit
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001079 | Hose Radiator In |
| 510 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 720 | 293650264 | Norma Spring Clamp |
| 1200 | 509001083 | Coolant Tank Hose |
| 1210 | 293650099 | Crimp Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 2000 | 509001011 | Cooling Tank |
| 2010 | 516005904 | Warning Decal |
| 2070 | 241152060 | Hex. Flange Screw K50 X 20 |
| 2100 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 2150 | 504153074 | Tube Protector This part replaces 504152900. |
