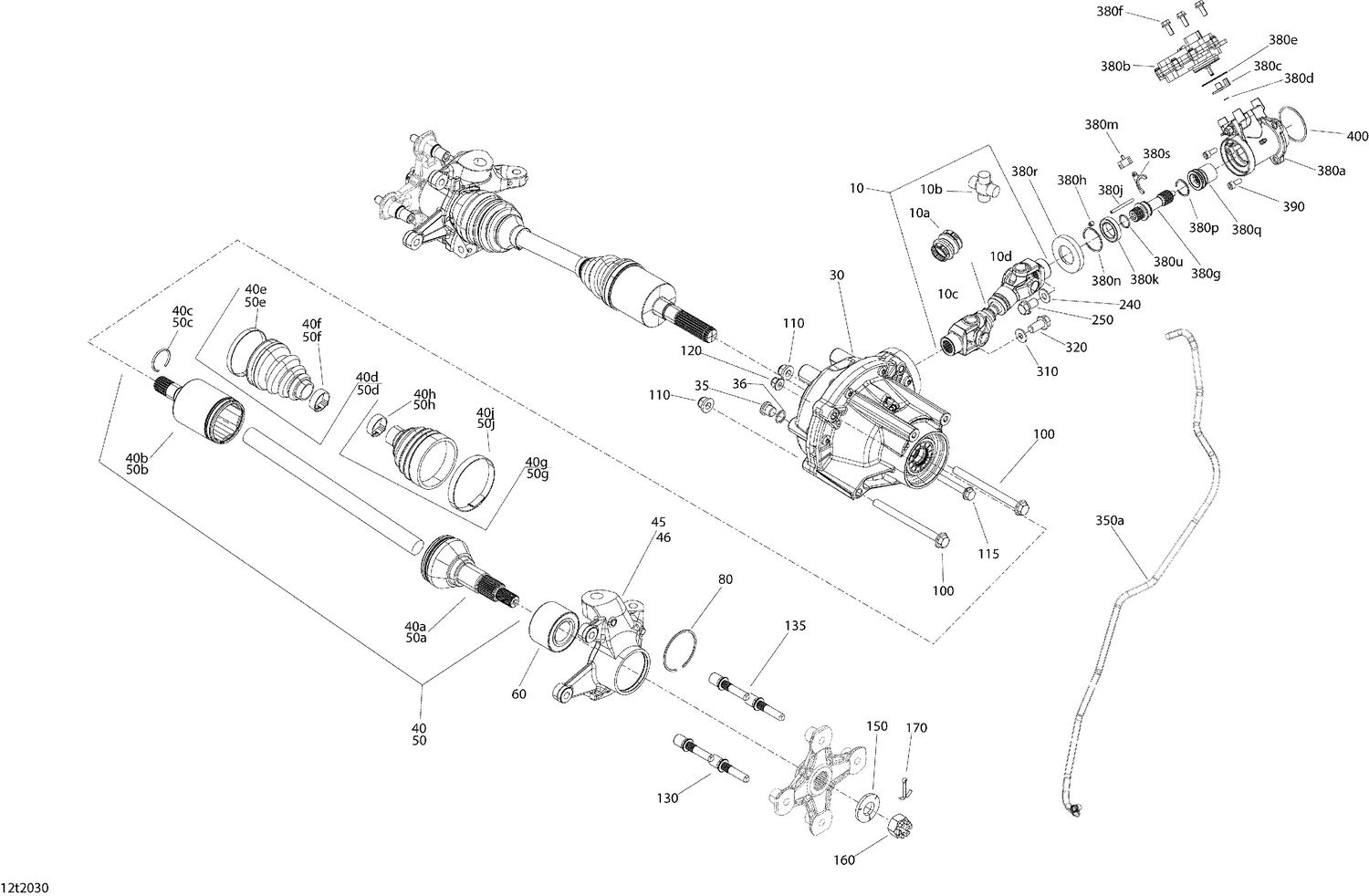

| Ref | Part Number | Description |
|---|
| 10a |
715900118 |
Rubber Boot |
| 10b |
715900435 |
U-Joint Cross Kit |
| 10c |
715900497 |
Fixed Yoke Joint |
| 10d |
715900498 |
Yoke Joint |
| 35 |
705500504 |
Fill Level Plug |
| 36 |
705500506 |
Copper Washer |
| 40a |
715900297 |
CV Joint |
| 40b |
715900300 |
RH Plunging CV Joint |
| 40c |
705401349 |
Circlip Joint |
| 40e |
715900262 |
Oetiker Clamp, Large |
| 40f |
715900317 |
Oetiker Clamp, Small |
| 40h |
715900318 |
Oetiker Clamp, Large |
| 40j |
715900317 |
Oetiker Clamp, Small |
| 45 |
705403307 |
LH Knuckle This part replaces 705401290. |
| 46 |
705403308 |
RH Knuckle This part replaces 705401291. |
| 50a |
715900297 |
CV Joint |
| 50b |
715900301 |
LH Plunging CV Joint |
| 50c |
705401349 |
Circlip Joint |
| 50e |
715900262 |
Oetiker Clamp, Large |
| 50f |
715900317 |
Oetiker Clamp, Small |
| 50h |
715900318 |
Oetiker Clamp, Large |
| 50j |
715900317 |
Oetiker Clamp, Small |
| 60 |
293350150 |
Ball Bearing This part replaces 293350118. |
| 80 |
293370019 |
Circlip |
| 100 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 110 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 115 |
207685544 |
Hex. Flange Screw M8 X 55 |
| 120 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 130 |
705501900 |
Wheel Hub |
| 150 |
250200171 |
Conical Spring Washer M18 |
| 160 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 170 |
250400071 |
Cotter Pin |
| 240 |
250200102 |
Flat Washer M12 |
| 250 |
250001039 |
Hex Flange Screw M12 X 16 |
| 310 |
250200014 |
Flat Washer M10 |
| 320 |
250001046 |
Hex Flange Screw M10 X 20 S.Grip |
| 350a |
219704389 |
Polyurethane Hose 4000MM Long |
| 380a |
705402360 |
Machined Housing |
| 380c |
705400274 |
Fork |
| 380d |
293370042 |
Circlip |
| 380e |
293300117 |
O-Ring |
| 380f |
250000137 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 380g |
705401509 |
Idler Shaft Gear |
| 380h |
206580890 |
Pressure Screw M8 X 8 |
| 380j |
250400025 |
Dowell Pin |
| 380k |
705400249 |
Ball Bearing |
| 380m |
705402139 |
Slider |
| 380n |
293370029 |
Circlip |
| 380p |
293370030 |
Circlip |
| 380q |
705400389 |
Coupling Sleeve |
| 380r |
293250348 |
Oil Seal |
| 380s |
705401553 |
Shifter Lever Plate |
| 380u |
293300179 |
O-Ring |
| 390 |
250000136 |
Socket Head Screw M8 X 20, Scotch Grip |
