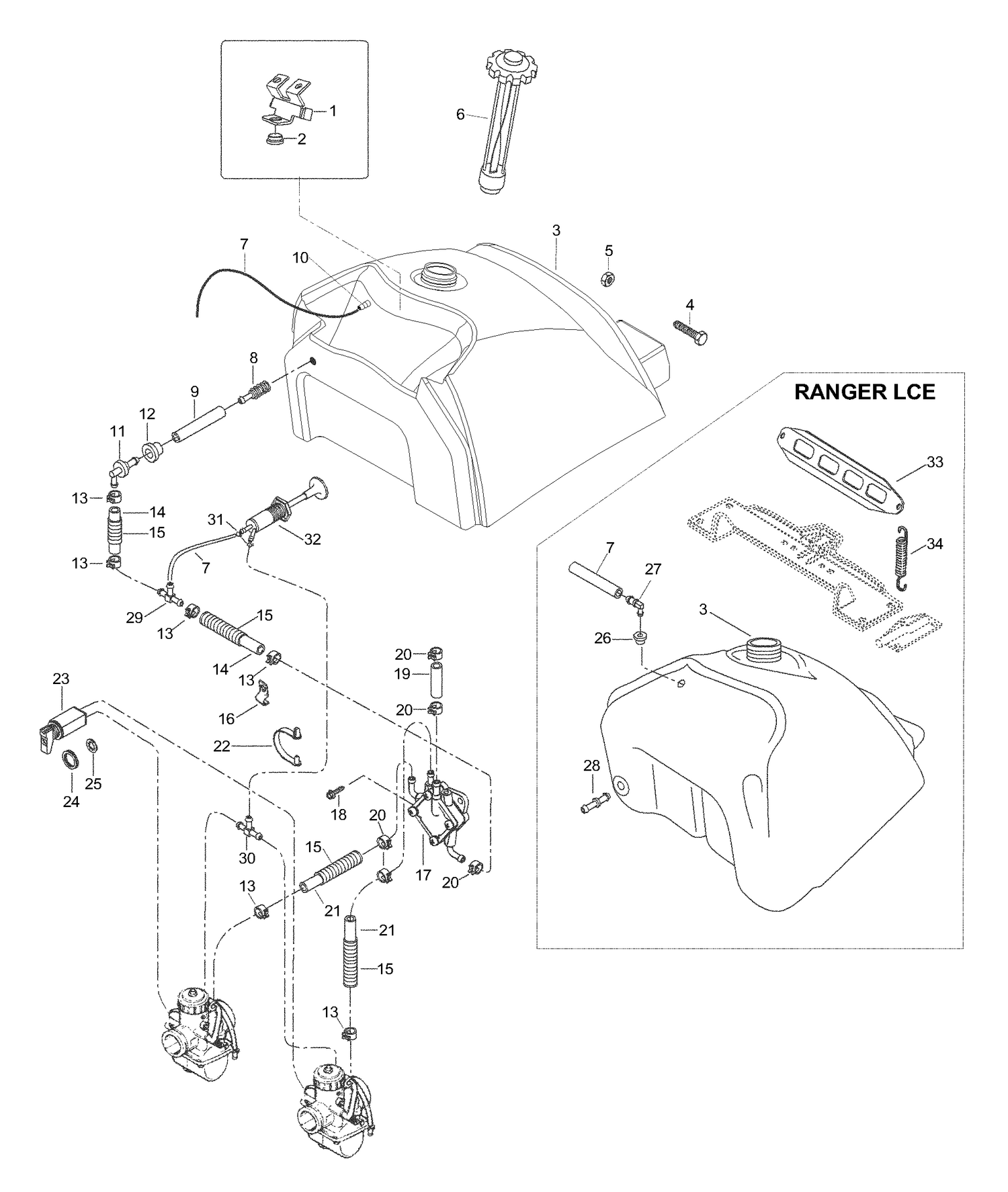

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Fuel tank bracket - DOES NOT APPLY TO THIS MODEL |
| 2 |
Not |
Available As Spare Part - Al-sleeve - DOES NOT APPLY TO THIS MODEL |
| 3 |
572108900 |
Fuel tank |
| 4 |
Not |
Available As Spare Part - Screw M6x90 - DOES NOT APPLY TO THIS MODEL |
| 5 |
Not |
Available As Spare Part - Elastic flanged nut M6 - DOES NOT APPLY TO THIS MODEL |
| 6 |
572161200 |
Fuel tank cap |
| 7 |
39035 |
Hose 5/3 |
| 8 |
414865700 |
Fuel filter |
| 9 |
39030 |
Fuel line 8/5 |
| 10 |
Not |
Available As Spare Part - Male connector - DOES NOT APPLY TO THIS MODEL |
| 11 |
Not |
Available As Spare Part - Male connector - DOES NOT APPLY TO THIS MODEL |
| 12 |
570045500 |
Grommet |
| 13 |
414554800 |
Clamp |
| 14 |
39004 |
Fuel line 8/5 |
| 15 |
28012 |
Tubing |
| 16 |
415018200 |
CLIP - Call your local BRP dealership |
| 17 |
403801100 |
FUEL PUMP ASS'Y - Call your local BRP dealership |
| 18 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 19 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 20 |
414420700 |
Universal Spring Clamp |
| 21 |
39060 |
Fuel line 8/5.5 |
| 22 |
Not |
Available As Spare Part - Cable clip - DOES NOT APPLY TO THIS MODEL |
| 23 |
Not |
Available As Spare Part - Choke cable - DOES NOT APPLY TO THIS MODEL |
| 24 |
Not |
Available As Spare Part - Plastic nut - DOES NOT APPLY TO THIS MODEL |
| 25 |
Not |
Available As Spare Part - Lock washer - DOES NOT APPLY TO THIS MODEL |
| 26 |
513032908 |
Grommet |
| 27 |
414814100 |
Male connector |
| 28 |
414518500 |
Male connector |
| 29 |
21067 |
T-fitting |
| 30 |
21062 |
T-fitting |
| 31 |
543230 |
Clamp |
| 32 |
415060500 |
Primer |
| 33 |
517249200 |
Fuel tank support |
