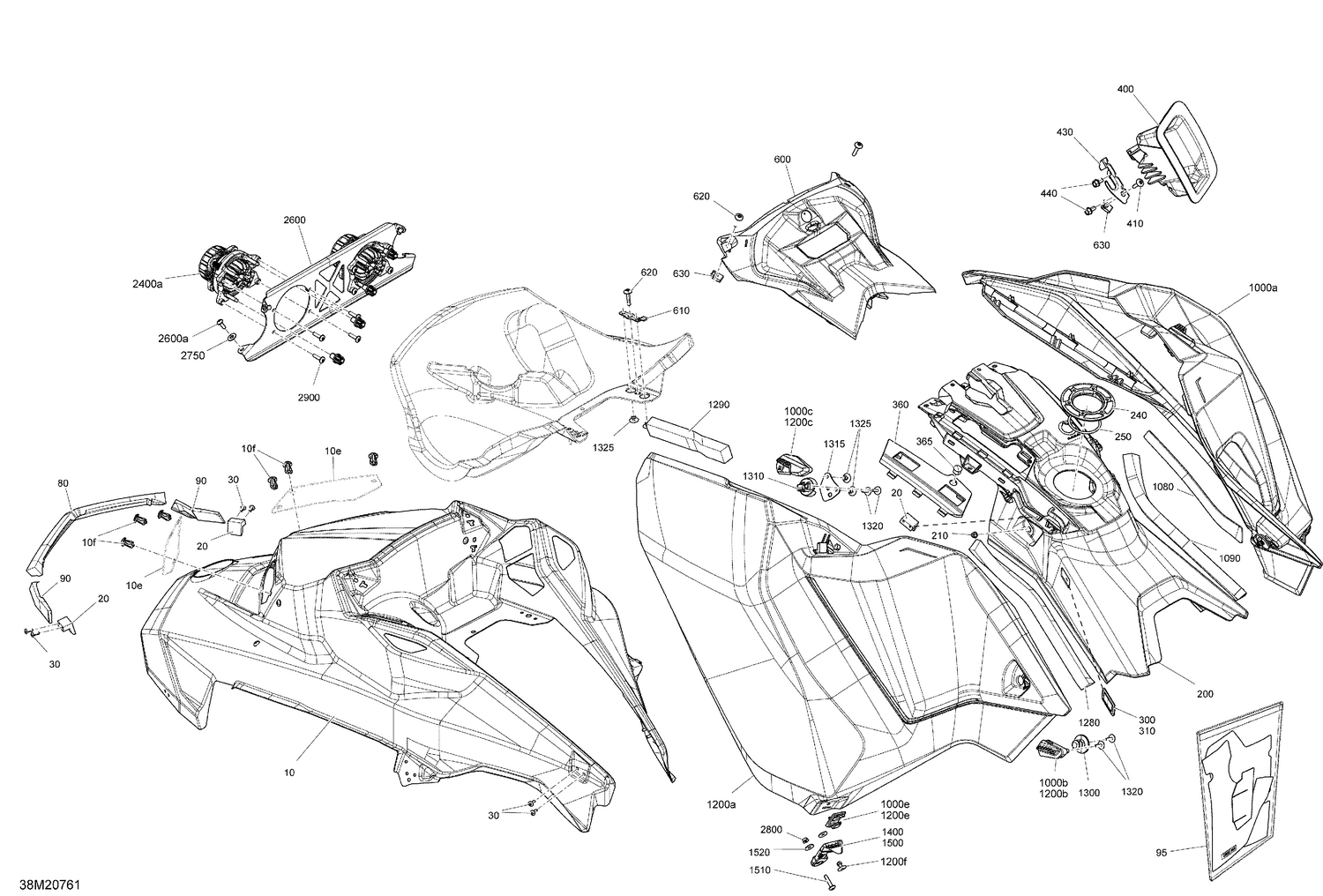

09- Body - Hood Section
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 10e | Not | Available As Spare Part - Light Cover |
| 10f | 293150230 | Tuflok Plastic Rivet |
| 20 | 517307050 | Hook |
| 30 | 250000577 | Torx Truss Screw K40 X 12 |
| 80 | 517306592 | Front Hood Foam |
| 90 | 517306593 | Hood Foam |
| 95 | 517307074 | Foil |
| 200 | 517307685 | Rear Console This part replaces 517306898. |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 240 | 517306602 | Console Nut |
| 250 | 706002839 | O-Ring |
| 300 | 517306587 | RH Cap |
| 310 | 517306588 | LH Cap |
| 360 | 517306583 | LH Front Console |
| 365 | 572051500 | Cap |
| 400 | 517306759 | RH Console |
| 410 | 250000586 | Torx Truss M5 X 20 |
| 430 | 517306315 | Rope Guide |
| 440 | 210261250 | Hex. Flange Screw M6 X 12 |
| 600 | 517305782 | Indicator Support |
| 610 | 517306967 | Hook |
| 620 | 250000587 | Torx Screw M5 X 26 |
| 630 | 250000958 | Panel Nut M5 X 0.8 |
| 1000a | 517306871 | Deep Black, RH Panel |
| 1000b | 517305773 | RH Rear Latch |
| 1000c | 517305979 | RH Front Latch |
| 1000e | 517306311 | RH Hook |
| 1080 | 517306262 | Rubber Sheet |
| 1090 | 517306480 | RH Rear Panel Foam |
| 1200a | 517306985 | LH Panel |
| 1200b | 517305774 | LH Rear Latch |
| 1200c | 517305980 | LH Front Latch |
| 1200e | 517306312 | LH Hook |
| 1200f | 293150104 | Pop Rivet 3/16" |
| 1280 | 517306479 | LH Rear Panel Foam |
| 1290 | 517306594 | Foam |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 1315 | 517306968 | Plate |
| 1320 | 250000725 | Screw M4 X 16 |
| 1325 | 293150103 | Pop Rivet 3/16" |
| 1400 | 517306309 | RH Lower Latch |
| 1500 | 517306310 | LH Lower Latch |
| 1510 | 250000762 | Torx Screw M5 X 25 |
| 1520 | 250200140 | Washer |
| 2400a | 517307720 | Headlight Kit This part replaces 517307130. |
| 2600a | 293450268 | Insert M5 X 0.8 |
| 2750 | 250200024 | Rubber Washer 5 mm |
| 2800 | 233151414 | Hex. Flange Nut M5 |
