| Ref | Part Number | Description |
|---|
| 1 |
CAPSCREW, |
Hex hd., 3/8 x 1-1/2inch long |
| 2 |
CAPSCREW, |
Hex hd., 3/8 x 1-1/4inch long |
| 3 |
CAPSCREW, |
Hex hd., 4/16 x 3/4inch long |
| 4 |
CAPSCREW, |
Hex hd., 5/16 x 1inch long |
| 5 |
WASHER, |
Flat, 3/8inch I.D. |
| 8 |
CLAMP, |
Hose, 10 |
| 9 |
CLAMP, |
Hose, 16 |
| 10 |
CLAMP, |
Hose, 24 |
| 11 |
HOSE, |
Flex, 1inch I.D. 13-1/4inch long |
| 12 |
HOSE, |
Flex, 4/8inch I.D. 8inch long |
| 13 |
HOSE, |
Flex, 4/8inch I.D. 7inch long |
| 14 |
HOSE, |
Flex, 1-1/2inch I.D. 24inch long |
| 15 |
HOSE, |
Soft, 1-1/2inch I.D..l 3inch long |
| 16 |
HOSE, |
Flex, 1-1/2inch I.D. 27inch long |
| 17 |
047-023 |
BRACKET, Voltage regulator mounting |
| 18 |
044-013 |
BRACKET, Mounting, al-17 |
| 19 |
072-005 |
HEADER ASSY, Water pump |
| 20 |

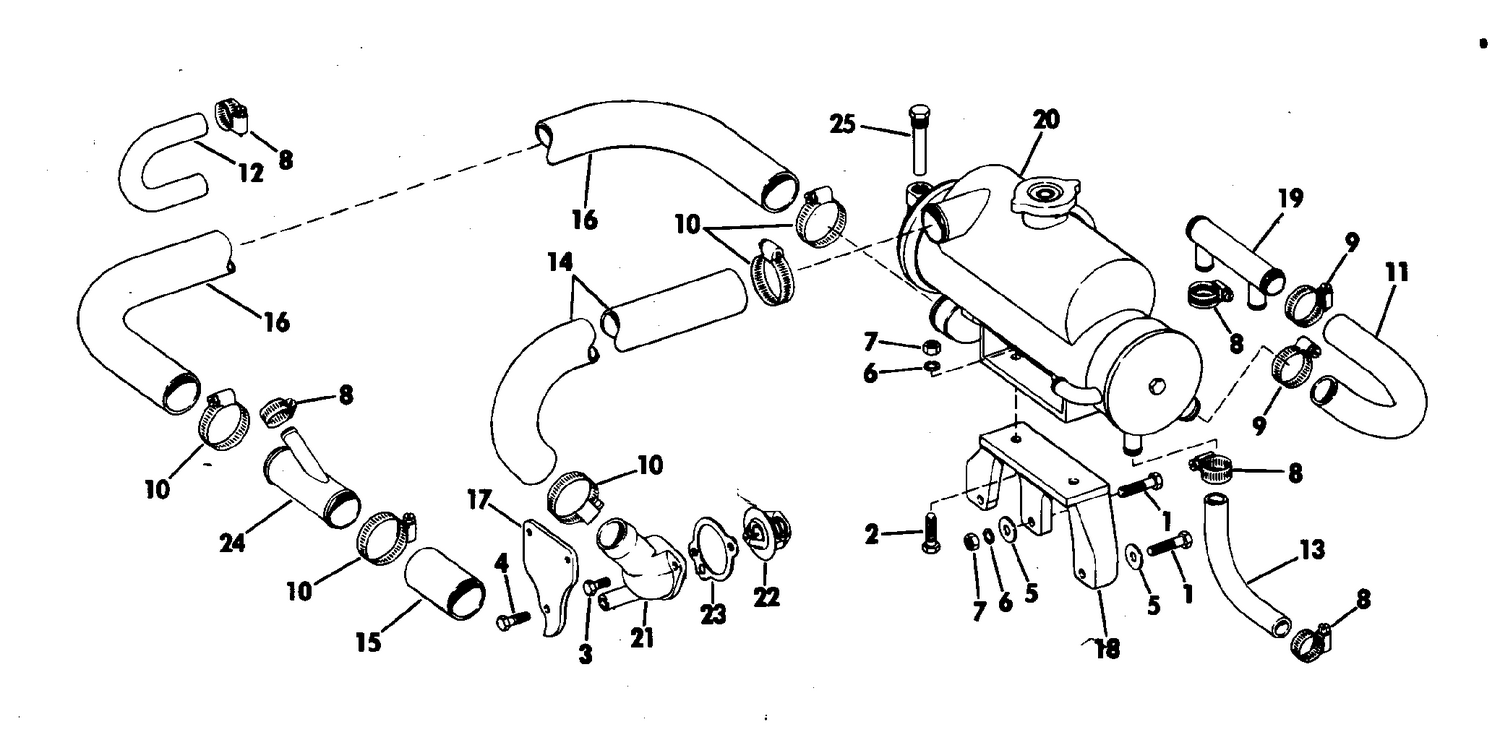

HEAT |
EXCHANGER ASSY., Omc 412-4 |
| 21 |
047-039 |
HOUSING, Thermostat |
| 22 |
072-019 |
THERMOSTAT, 160 deg f |
| 23 |
079-034 |
GASKET, Thermostat housing |
| 25 |
076-006 |
ANODE (INSTALLED IN HEAD EXCHANGER) |
