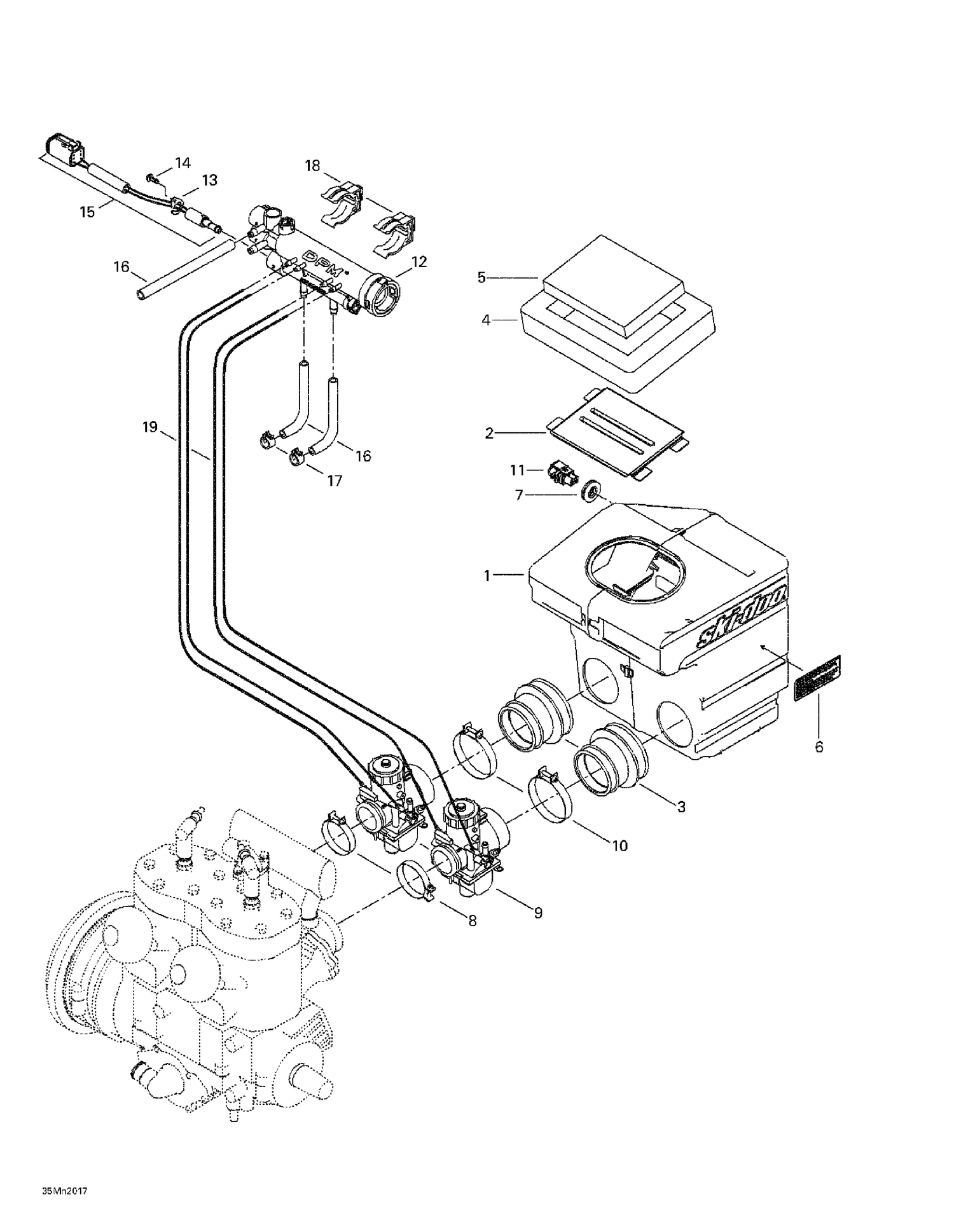

| Ref | Part Number | Description |
|---|
| 2 |
508000004 |
INTAKE GRILL - Call your local BRP dealership |
| 3 |
570068900 |
Air Intake Adaptor (40 mm) |
| 4 |
508000099 |
Lower Foam |
| 5 |
508000154 |
Air Filter This part replaces 415103200. |
| 6 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
| 7 |
570065500 |
GROMMET - Call your local BRP dealership |
| 8 |
293650158 |
Gemi Clamp This part replaces 512059006. |
| 10 |
508000009 |
Clamp |
| 11 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 13 |
415061600 |
SOLENOID LOCK - Call your local BRP dealership |
| 14 |
241140060 |
Screw K40 X 10 |
| 15 |
515175271 |
Pressure Manifold Harness |
| 16 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 17 |
414554800 |
Spring Clamp |
| 18 |
512058919 |
SUPPORT - Call your local BRP dealership |
