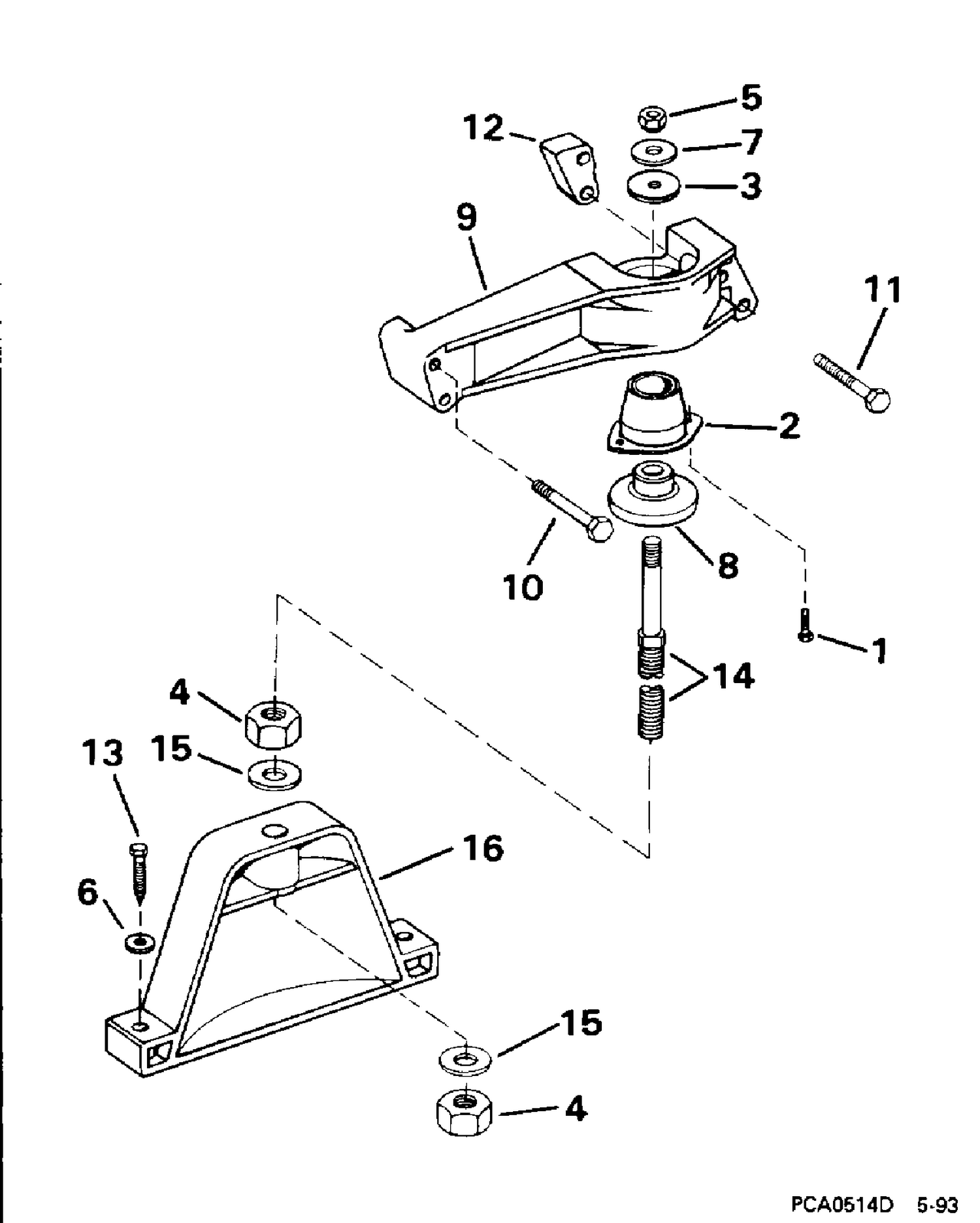

FRONT MOUNT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3852474 | SCREW, Mount to bracket |
| 2 | 3853789 | ECCENTRIC, Fuel pump, inner |
| 3 | 3853788 | REBOUND WASHER ASSY. |
| 4 | 3852436 | NUT |
| 5 | 0313650 | NUT This part replaces 3852123. |
| 6 | 3852078 | WASHER, Lag screw |
| 7 | 3852422 | WASHER, Upper |
| 8 | 3852593 | SPACER, Lower |
| 9 | 3854251 | MOUNT BRACKET KIT |
| 10 | 3853367 | SCREW Bracket |
| 11 | 3853407 | SCREW, Bracket to engine, port |
| 12 | 3853252 | SPACER, Front mount, port |
| 13 | 3852475 | LAG SCREW |
| 14 | 3853816 | Screw&Stud Ay |
| 15 | 3852000 | WASHER, Mount |
