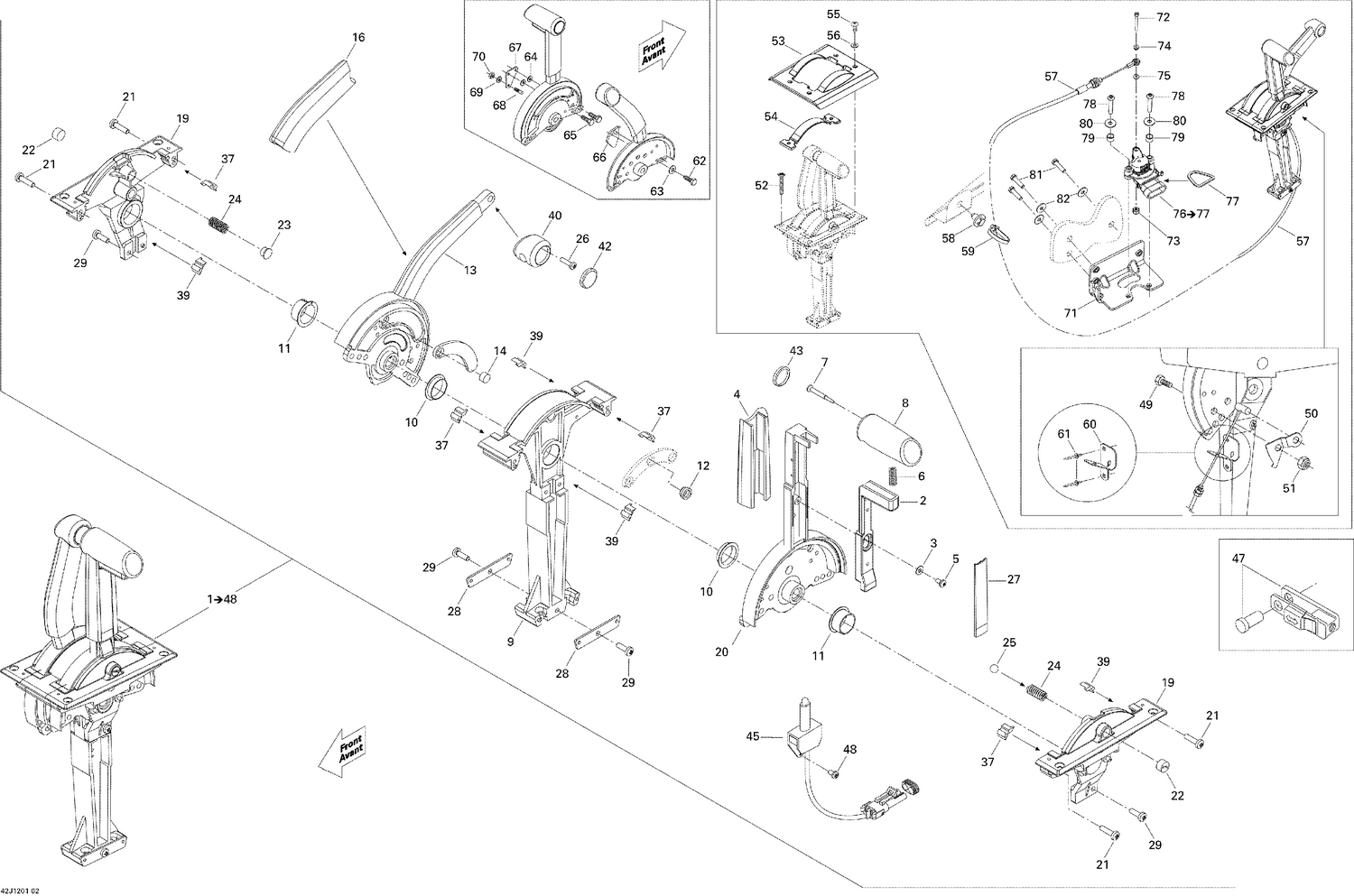

| Ref | Part Number | Description |
|---|
| 2 |
277001825 |
LOCK - Call your local BRP dealership |
| 3 |
277001829 |
WASHER - Call your local BRP dealership |
| 4 |
277001823 |
MOLDED LEVER - Call your local BRP dealership |
| 5 |
277001828 |
SCREW M4 X 8 - Call your local BRP dealership |
| 6 |
277001830 |
SPRING - Call your local BRP dealership |
| 7 |
204390634 |
SCREW M5 X 25 - Call your local BRP dealership |
| 8 |
204390632 |
CONTROL HANDLE - Call your local BRP dealership |
| 9 |
Not |
Available As Spare Part - Frame |
| 10 |
277000398 |
BUSHING - Call your local BRP dealership |
| 11 |
277000397 |
BUSHING - Call your local BRP dealership |
| 12 |
277001831 |
BALL BASE - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - Shift Lever |
| 14 |
277000404 |
BLOCKING PIVOT - Call your local BRP dealership |
| 16 |
204390626 |
THROTTLE LEVER - Call your local BRP dealership |
| 19 |
Not |
Available As Spare Part - Half Case |
| 20 |
Not |
Available As Spare Part - Throttle Lever |
| 21 |
204100016 |
SCREW M5 X 20 - Call your local BRP dealership |
| 22 |
277000402 |
CAP SCREW - Call your local BRP dealership |
| 23 |
277000403 |
FRICTION INSERT - Call your local BRP dealership |
| 24 |
277001832 |
DETENT SPRING - Call your local BRP dealership |
| 25 |
277000399 |
BALL - Call your local BRP dealership |
| 26 |
Not |
Available As Spare Part - Screw M5 X 14 |
| 27 |
277001826 |
LOCK COVER - Call your local BRP dealership |
| 28 |
204390227 |
RETAINING PLATE - Call your local BRP dealership |
| 29 |
Not |
Available As Spare Part - Screw M5 X 16 |
| 37 |
Not |
Available As Spare Part - RH Water Seal |
| 39 |
Not |
Available As Spare Part - LH Water Seal |
| 40 |
204390633 |
THROTTLE HANDGRIP - Call your local BRP dealership |
| 42 |
204390630 |
RED KNOB CAP - Call your local BRP dealership |
| 43 |
204390631 |
BLACK KNOB CAP - Call your local BRP dealership |
| 45 |
277001851 |
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership |
| 47 |
204390226 |
CLEVIS L26 - Call your local BRP dealership |
| 48 |
277001847 |
SCREW M3X6 - Call your local BRP dealership |
| 49 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 50 |
204390045 |
THROTTLE LINK - Call your local BRP dealership |
| 51 |
232551600 |
Hex. Elastic Nut M5 |
| 52 |
208453060 |
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership |
| 53 |
277001767 |
CONTROL PLATE - Call your local BRP dealership |
| 54 |
277001760 |
CONTROL PLATE INSERT - Call your local BRP dealership |
| 55 |
208641060 |
Phillips Screw M4 X 10 |
| 56 |
234040600 |
Flat Washer 4 mm |
| 57 |
277001780 |
THROTTLE CABLE - Call your local BRP dealership |
| 58 |
293730040 |
Mount Dart |
| 59 |
293750002 |
Tie Wrap 142 mm |
| 60 |
277000504 |
CABLE SUPPORT - Call your local BRP dealership |
| 61 |
293150026 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 62 |
207161260 |
Hex. Cap Screw M6 X 12 |
| 63 |
211200025 |
Lock Washer 1/4” |
| 64 |
211200025 |
Lock Washer 1/4” |
| 65 |
207161260 |
Hex. Cap Screw M6 X 12 |
| 66 |
204390610 |
THROTTLE STOP - Call your local BRP dealership |
| 67 |
204390369 |
STOP-REVERSE - Call your local BRP dealership |
| 68 |
204390370 |
REVERSE PIN - Call your local BRP dealership |
| 69 |
211200025 |
Lock Washer 1/4” |
| 70 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 71 |
277001694 |
SENSOR BRACKET - Call your local BRP dealership |
| 72 |
205033060 |
SOCKET SCREW M3 X 30 - Call your local BRP dealership |
| 73 |
232531600 |
Elastic Stop Nut M3 |
| 74 |
706001163 |
PIVOT BUSHING - Call your local BRP dealership |
| 75 |
277001810 |
PLASTIC WASHER - Call your local BRP dealership |
| 77 |
270000544 |
O-Ring |
| 78 |
205453060 |
Socket Screw M5 X 30 |
| 79 |
278002752 |
SPACER - Call your local BRP dealership |
| 80 |
234052600 |
Flat Washer 5 mm, Stainless |
| 81 |
207152060 |
Hex. Screw M5 X 20 |
