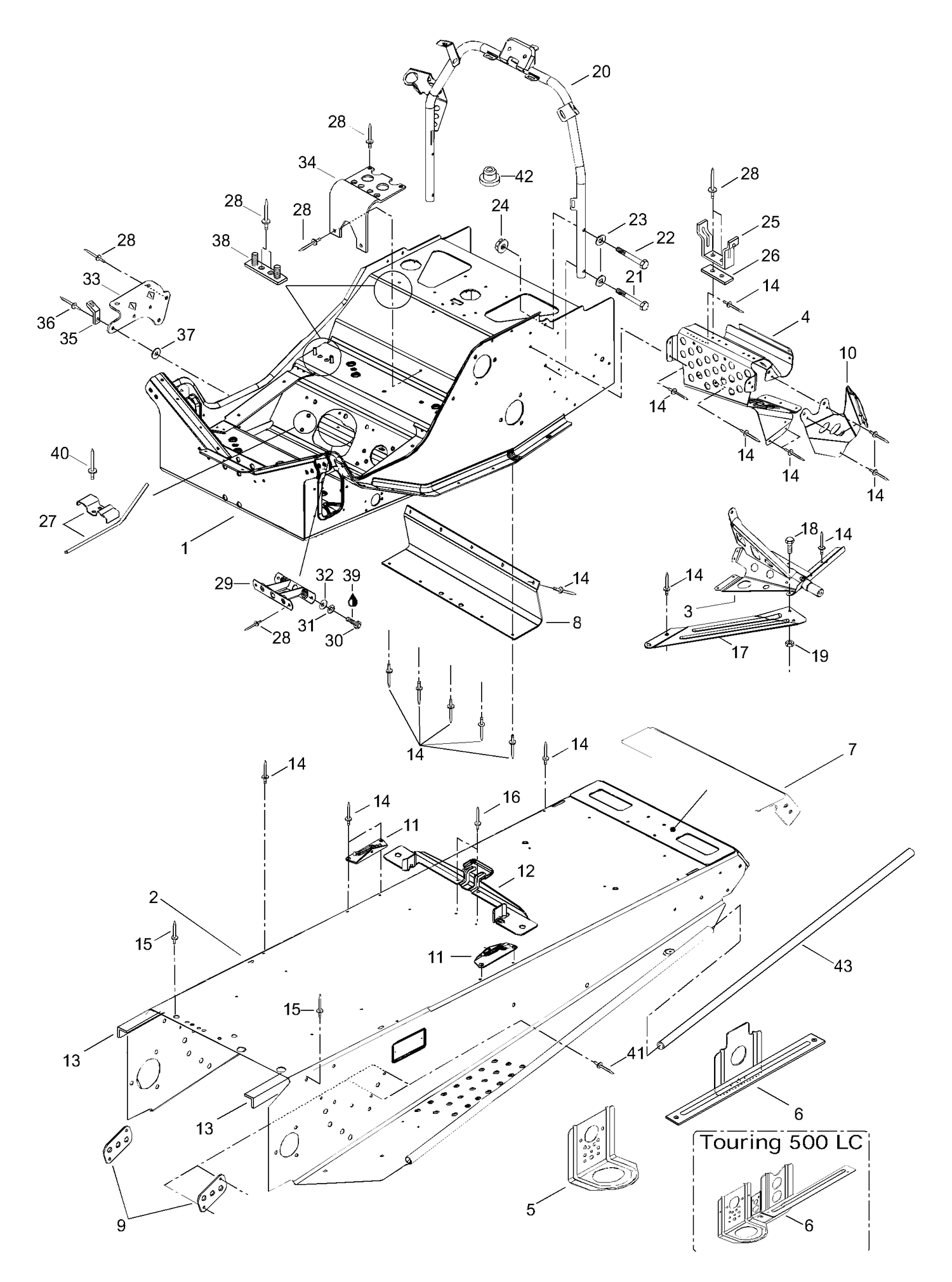

09- Frame — Parts Catalog

Parts (46)

Ref	Part Number	Description
3	518320506	R.H. support
3	518320507	LH SOOTREST SUPPORT - Call your local BRP dealership
4	518318933	R.H. front footrest
4	518318934	L.H. front footrest
5	518308704	Front bracket
6	Not	Available As Spare Part - L.H. Rear bracket - DOES NOT APPLY TO THIS MODEL
7	5245180	Rear cap
8	518321867	Deflector
9	5445942	Reinf., front arm
10	518308714	Upper plate L.H.
10	518308715	Upper plate R.H.
11	517266900	Tank bracket R.H.
11	517267000	Tank bracket L.H.
12	518317506	Seat bracket
13	518316713	R.H. tunnel reinforceme
13	518316714	R.H. tunnel reinforceme
14	390402200	Pop Rivet 3/16
15	390402300	Rivet
16	390402400	Rivet
17	518321958	R.H. reinf. plate
17	518321959	L.H. reinf. plate
18	207151644	Screw M5x16
19	233251434	Flanged Elastic Nut M5 This part replaces 233251414.
20	518321428	Handle steering supp.
21	40002	Screw M6x40
22	40003	Screw M6x35
23	20003	Washer
24	233261414	Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
25	518202100	Pulley Guard bracket
26	518207500	REINFORCEMENT - Call your local BRP dealership
27	518321854	Rope guide
28	390402200	Pop Rivet 3/16
29	518304741	Reinforcement plate
30	40036	Screw M8x20
31	20014	Spring washer
32	224081201	FLAT WASHER - Call your local BRP dealership
33	518316704	Muffler support
34	518310400	AIR INTAKE SUPPORT - Call your local BRP dealership
35	514054522	Spring Bracket This part replaces 514034000.
36	390402300	Rivet
37	517225900	Washer
38	518315300	Support plate
39	413705400	Loctite 270, 250ml
40	390909200	Avex Rivet
41	36489	Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership
42	414859400	CAP - Call your local BRP dealership
