| Ref | Part Number | Description |
|---|
| 1 |
0435430 |

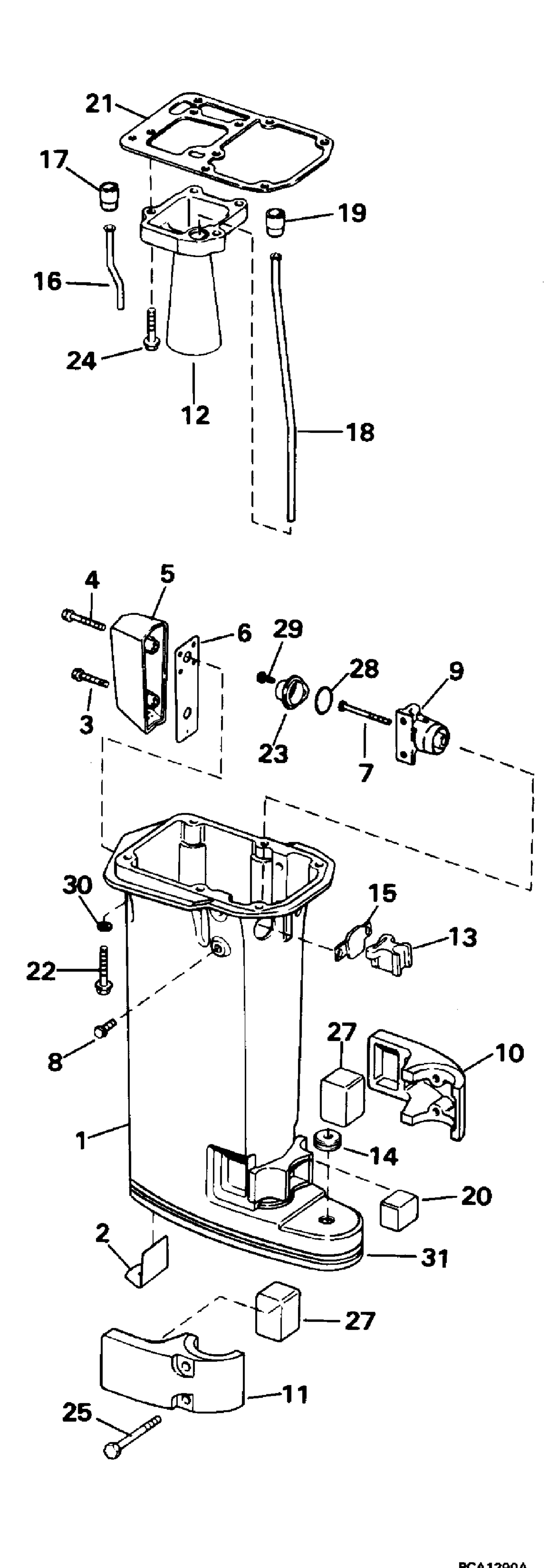

EXHAUST HOUSING ASSY. |
| 7 |
0342540 |
SCREW, Exhaust housing to ext. |
| 9 |
0437894 |
MOUNT ASSY., Upper |
| 10 |
0329021 |
MOUNT BRACKET, Lower port |
| 11 |
0329020 |
MOUNT BRACKET, Lower, stbd |
| 12 |
0330440 |
EXHAUST TUBE, Inner |
| 13 |
0339734 |
THRUST MOUNT, Upper |
| 14 |
0319229 |
GROMMET, Exh, hsg, to shift rod |
| 15 |
0342541 |
PLATE, Upper mount |
| 16 |
0395125 |
TUBE, Water outlet |
| 18 |
0395122 |
WATER TUBE & GROMMET, Inlet, std. |
| 18 |
0395123 |
EATER TUBE, Long |
| 18 |
0395124 |
WATER TUBE |
| 20 |
0329046 |
THRUST MOUNT |
| 21 |
0325721 |
GASKET, Cyl. & c'case to lower engine cover |
| 22 |
0339809 |
SCREW, Outer exh. hsg. to powerhead, long |
| 23 |
0339666 |
COVER, Upper mount |
| 25 |
0319042 |
SCREW BRACKET AND CLAMPSCREW ASSY., Port |
| 27 |
0318997 |
LATERAL MOUNT, Lower |
| 28 |
0339676 |
O-RING, Cover |
| 30 |
0329241 |
RONDELLE |
| 31 |
0338445 |
DECAL, Exh. hsg., Ev., 90/100/115, except Jet |
