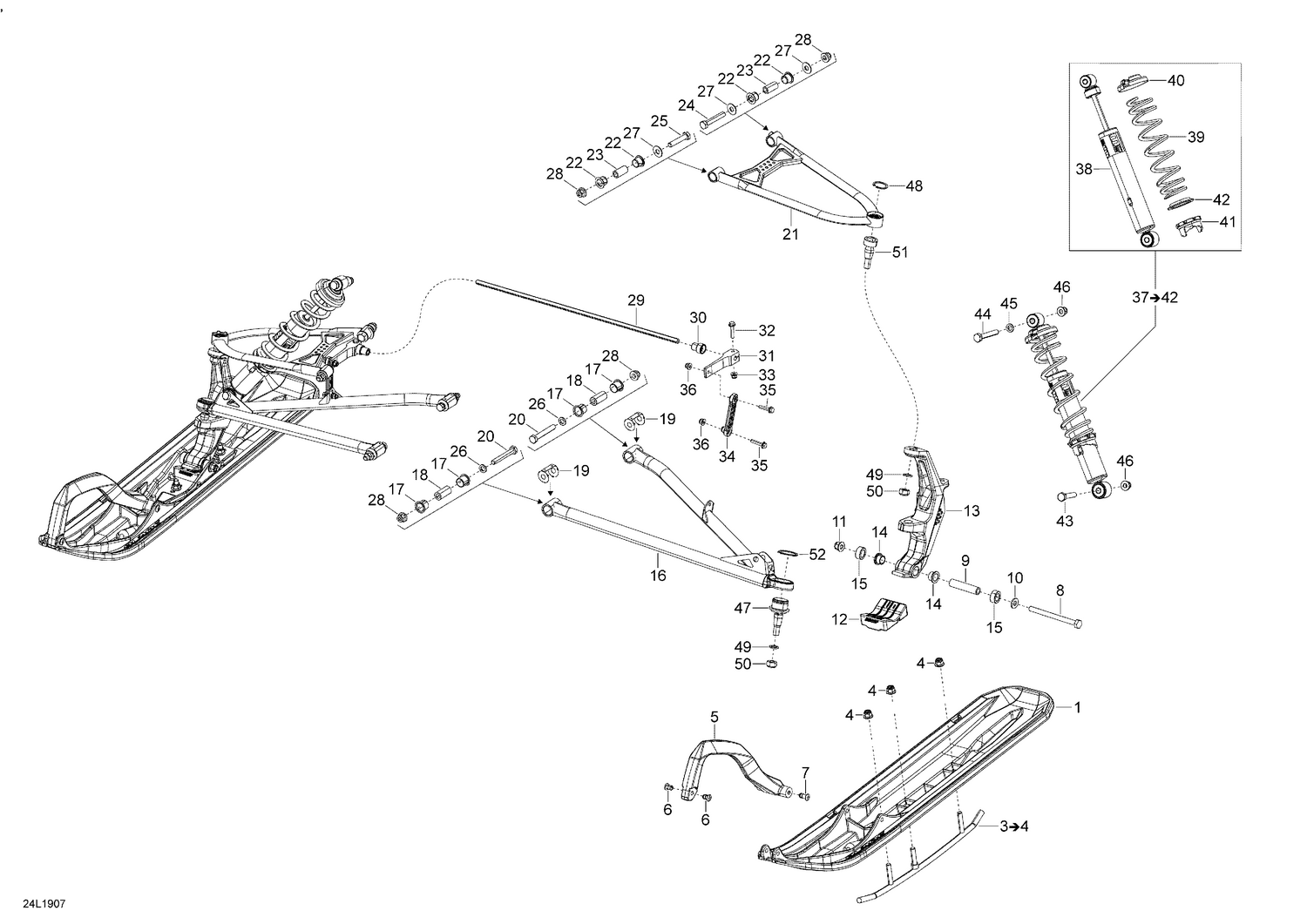

07- Front Suspension And Ski - XTRIM - 600 ACE

07- Front Suspension And Ski - XTRIM - 600 ACE

Parts (53)

RefPart NumberDescription
1 505074262 Black, Ski Blade Xc
3 860202821 Round Carbide Runner Kit This part replaces 860200959.
4 233201414 Hex. Flanged Elastic Nut M10
5 505073109 Handle
6 505071812 Retainer 17mm long
7 505072133 Retainer 23mm Long
8 250000703 Hex. Screw M10 X 130
9 506133300 Spacer
10 503192496 Washer
11 233201464 Hex. Elast. Flanged Nut M10 x 1.5
12 505072594 Ski Stopper
13 505073628 LH Ski Leg
13 505073629 RH Ski Leg
14 505072690 Leg Bushing
15 505072807 Spacer
16 505073583 Lower LH Arm, Black Epoxy
16 505073584 Lower RH Arm, Black Epoxy
17 505073330 Bushing
18 505072209 Bushing
19 505072634 Wear Plate
20 250001024 Screw Hex. M10 X 70
21 505073588 Uper LH Arm, Black Epoxy
21 505073589 Uper RH Arm, Black Epoxy
22 505073329 Bushing
23 505072143 Bushing
24 250001023 Screw Hex. M10 X 60 This part replaces 250000290.
25 250001022 Screw Hex. M10 X 50 This part replaces 250000289.
26 503189564 Washer
27 505072392 Washer
28 250100165 Hex. Flanged Elastic Nut M10
29 505072602 Stabilisator
30 505072064 Bushing
31 505072394 Stabilisator Lever
32 207663046 Hex. Flange Screw M6 X 30
33 233261416 Elastic Flanged Nut M6 X 1.0
34 505072204 Sway Bar Double Joint Link
35 207663046 Hex. Flange Screw M6 X 30
36 233261416 Elastic Flanged Nut M6 X 1.0
38 505073342 Front Shock (EUR)
39 503192286 Full Moon Spring 300mm-14 N/MM
40 706200881 Spring Stopper
41 505073625 Adjustment Cam
42 503191872 Spring Guide
43 207005544 Hex. Screw M10 X 55
44 207006544 Hex. Screw M10 X 1.5 X 65
45 503189564 Washer
46 233201414 Hex. Flanged Elastic Nut M10
47 505073636 Ball Joint
48 293370070 Circlip
49 234021410 Flat Washer 12 mm
50 250100089 Hex. Elastic Hex. Nut M12
51 505072913 Upper Ball Joint
52 293370035 Circlip
