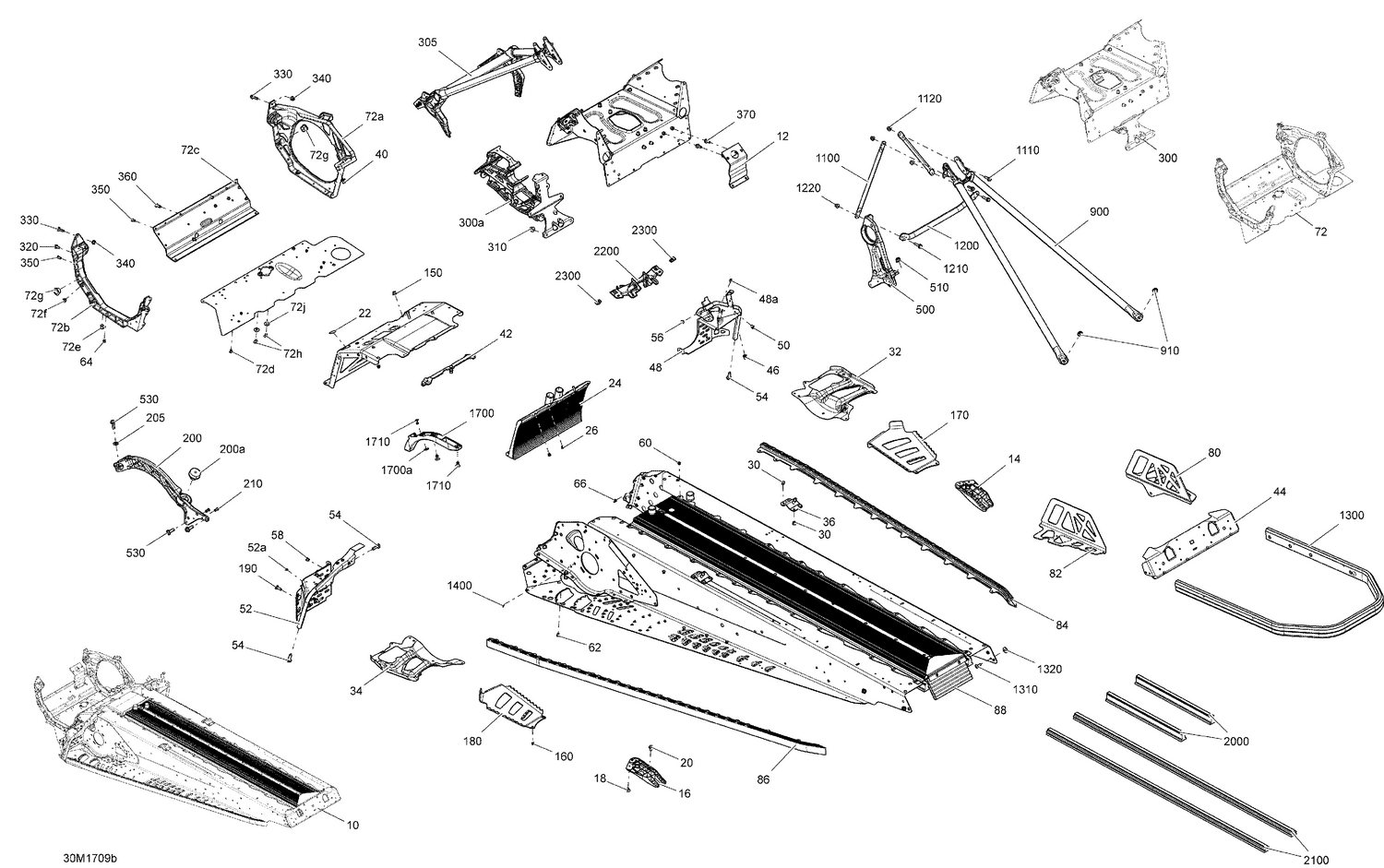

| Ref | Part Number | Description |
|---|
| 12 |
518325371 |
MAG Engine Support |
| 14 |
518325782 |
RH Deflector, Black Polypropylene |
| 16 |
518325783 |
LH Deflector, Black Polypropylene |
| 18 |
293150104 |
Pop Rivet 3/16" |
| 20 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 22 |
518325560 |
Adhesive Patch |
| 24 |
518327907 |
Front Radiator Ass'y |
| 26 |
293150203 |
Rivet Avibulb 3/16 |
| 28 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 30 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 32 |
518326937 |
RH Reinforcement, Running Board |
| 34 |
518326938 |
LH Reinforcement, Running Board |
| 36 |
518325973 |
RH Rear Base |
| 38 |
518325974 |
LH Rear Base |
| 40 |
293450275 |
Insert |
| 42 |
518326656 |
Seal |
| 44 |
518327105 |
Rear Cap |
| 46 |
293450275 |
Insert |
| 48a |
390909200 |
Avex Rivet |
| 50 |
293450268 |
Insert M5 X 0.8 |
| 52a |
390909200 |
Avex Rivet |
| 54 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 56 |
293730042 |
Full Moon Dart 5 mm |
| 58 |
293450268 |
Insert M5 X 0.8 |
| 60 |
293150203 |
Rivet Avibulb 3/16 |
| 62 |
390909100 |
Avex Rivet |
| 64 |
293150144 |
Stavex Rivet |
| 66 |
293150146 |
Henrob Rivet |
| 68 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 70 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 72a |
518326328 |
RH Side Member |
| 72b |
518326330 |
LH Side Member |
| 72c |
518326198 |
Front Member |
| 72d |
293150144 |
Stavex Rivet |
| 72e |
293150120 |
Hemlock Rivet 6.5 mm |
| 72f |
293150119 |
Hemlock Rivet, 6.5 mm |
| 72g |
505073317 |
Leg Cushion |
| 72h |
250000349 |
Torx Truss Screw M6 X 10 |
| 72j |
234062410 |
Flat Washer 6 mm |
| 80 |
518327858 |
RH SUSPENSION BRACKET - Call your local BRP dealership |
| 82 |
518327859 |
LH Suspension Bracket |
| 84 |
518327093 |
RH Roller |
| 86 |
518328429 |
LH Roller |
| 88a |
293150144 |
Stavex Rivet |
| 90 |
293150203 |
Rivet Avibulb 3/16 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 160 |
293150102 |
Rivet 3/16" |
| 170 |
518327812 |
RH. FOOTREST - Call your local BRP dealership |
| 180 |
518327813 |
LH. Footrest |
| 190 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 200a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 205 |
234281474 |
Conical Spring Washer M8 |
| 210 |
390407200 |
Pop Rivet 3/16” |
| 300a |
518327487 |
Front Suspension Support |
| 305 |
518327565 |
Front Member |
| 310 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 320 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 This part replaces 250000822. |
| 330 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 340 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 350 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 360 |
293150182 |
Monobolt Rivet 6.4 |
| 370 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 420 |
293730053 |
Black Dart 5 mm |
| 500 |
518327460 |
Driven Pulley Support |
| 510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 530 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon |
| 900 |
518326559 |
Rear Member |
| 910 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1100 |
518325114 |
Upper Lateral Column Support |
| 1110 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1200 |
518326657 |
Center Column Support |
| 1210 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1220 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1300 |
518325850 |
REAR BUMPER - Call your local BRP dealership |
| 1300 |
518327401 |
BLACK REAR BUMPER - Call your local BRP dealership |
| 1310 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1320 |
224061201 |
Flat Washer |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1700a |
517124300 |
Washer |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 2000 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. |
| 2100 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. |
| 2200 |
518327145 |
Sub A Support |
| 2300 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 6000 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
